A lesson in participatory design: Ecuador's Las Tejedoras Community Center

The Productive Development Center in rural Ecuador by José Fernando Gómez and Juan Carlos Bamba was built by and for the community, using local materials and labour.

by Jincy IypePublished on : Nov 21, 2024

The Las Tejedoras Community Productive Development Center in rural Ecuador, the recipient of the 2024 MCHAP.emerge award from the Mies Crown Hall Americas Prize, stands as a tangible symbol of community, reflecting the active contributions of local residents in its construction and ongoing activities. Realised in local materials with local flora imbuing its central patio, the two-story centre sought to become an integrative space for a growing collective of unemployed craftswomen in the locality, who, prior to its realisation, lacked a dedicated space to develop their productive skills and activities in a meaningful manner.

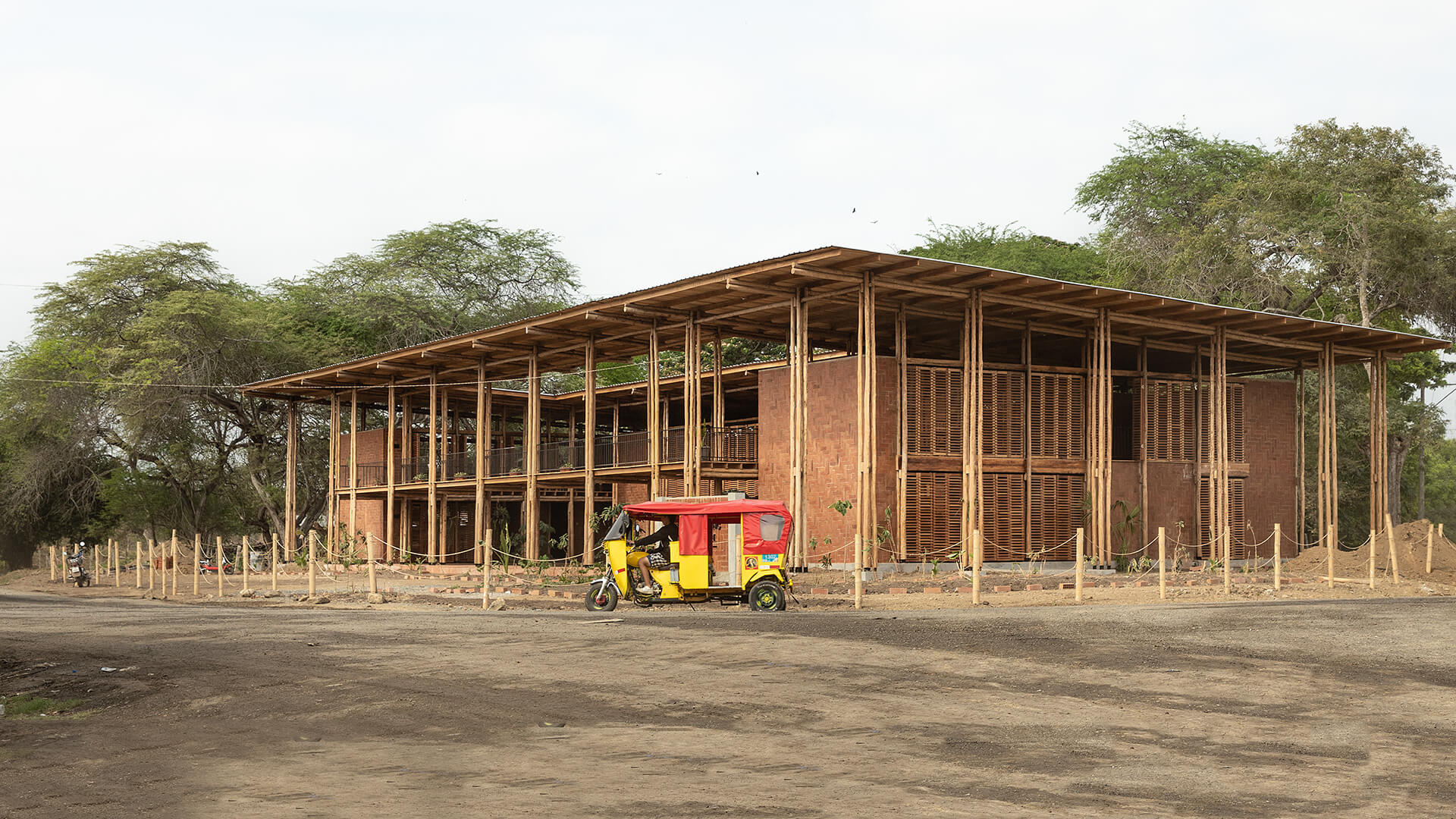

  • The Ecuadorian Community Productive Development Center is designed by architects José Fernando Gómez and Juan Carlos Bamba for a collective of women weavers | Las Tejedoras Community Productive Development Center | STIRworld

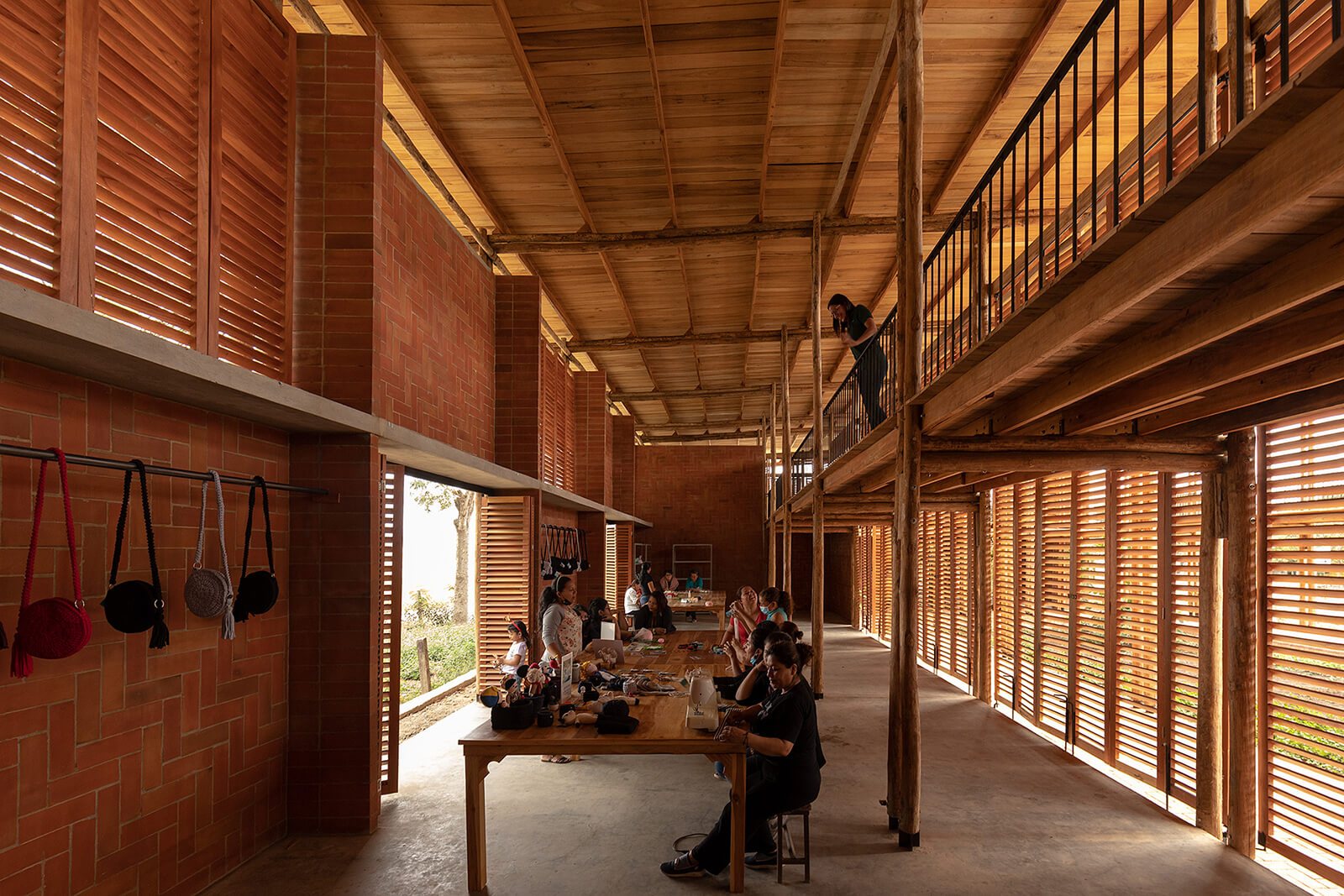

    The Ecuadorian Community Productive Development Center is designed by architects José Fernando Gómez and Juan Carlos Bamba for a collective of women weavers Image: Courtesy of JAG Studio

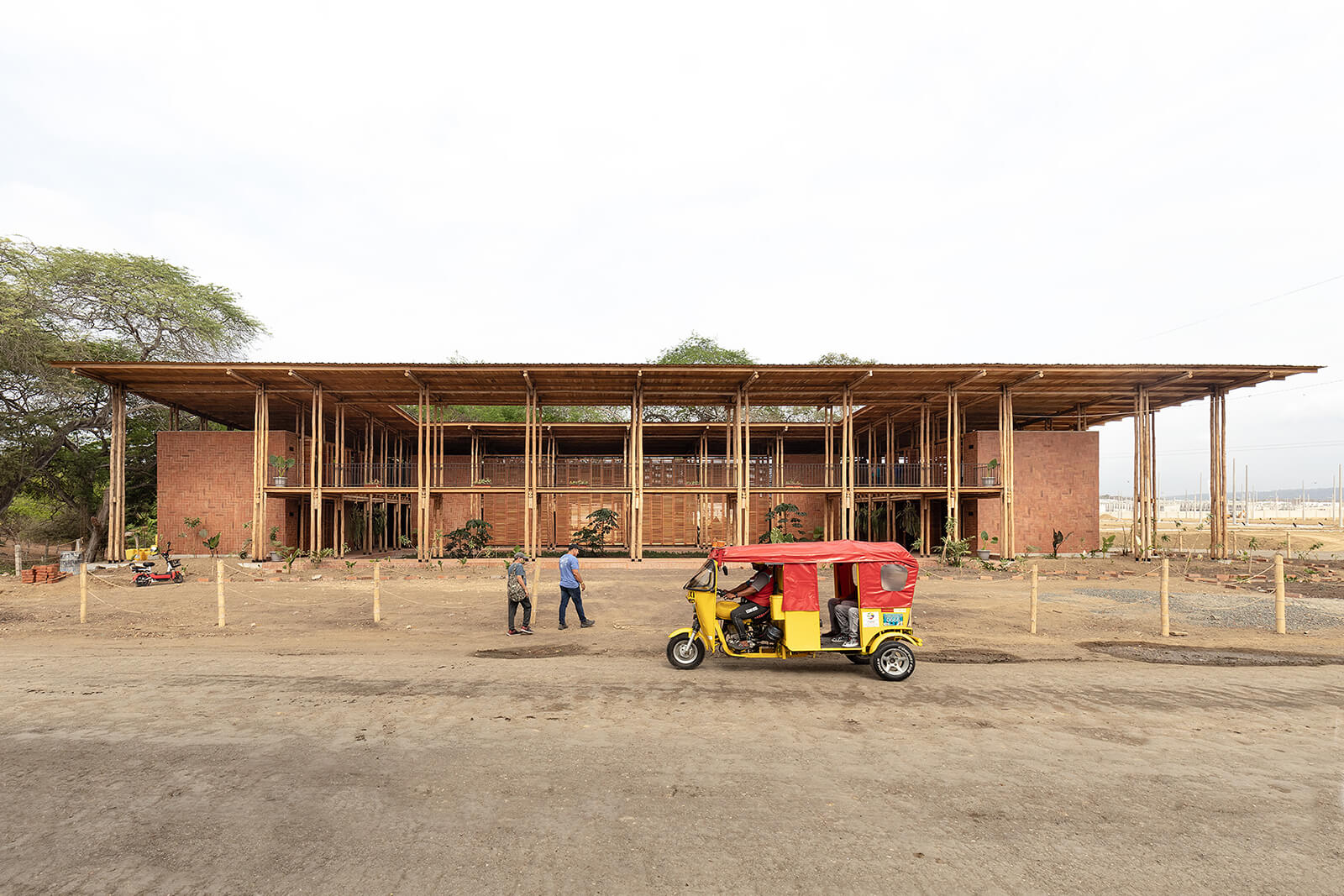

  • Las Tejedoras is situated on the outskirts of the urban community of Chongón, Ecuador, which has a population of around 4,900 people | Las Tejedoras Community Productive Development Center | STIRworld

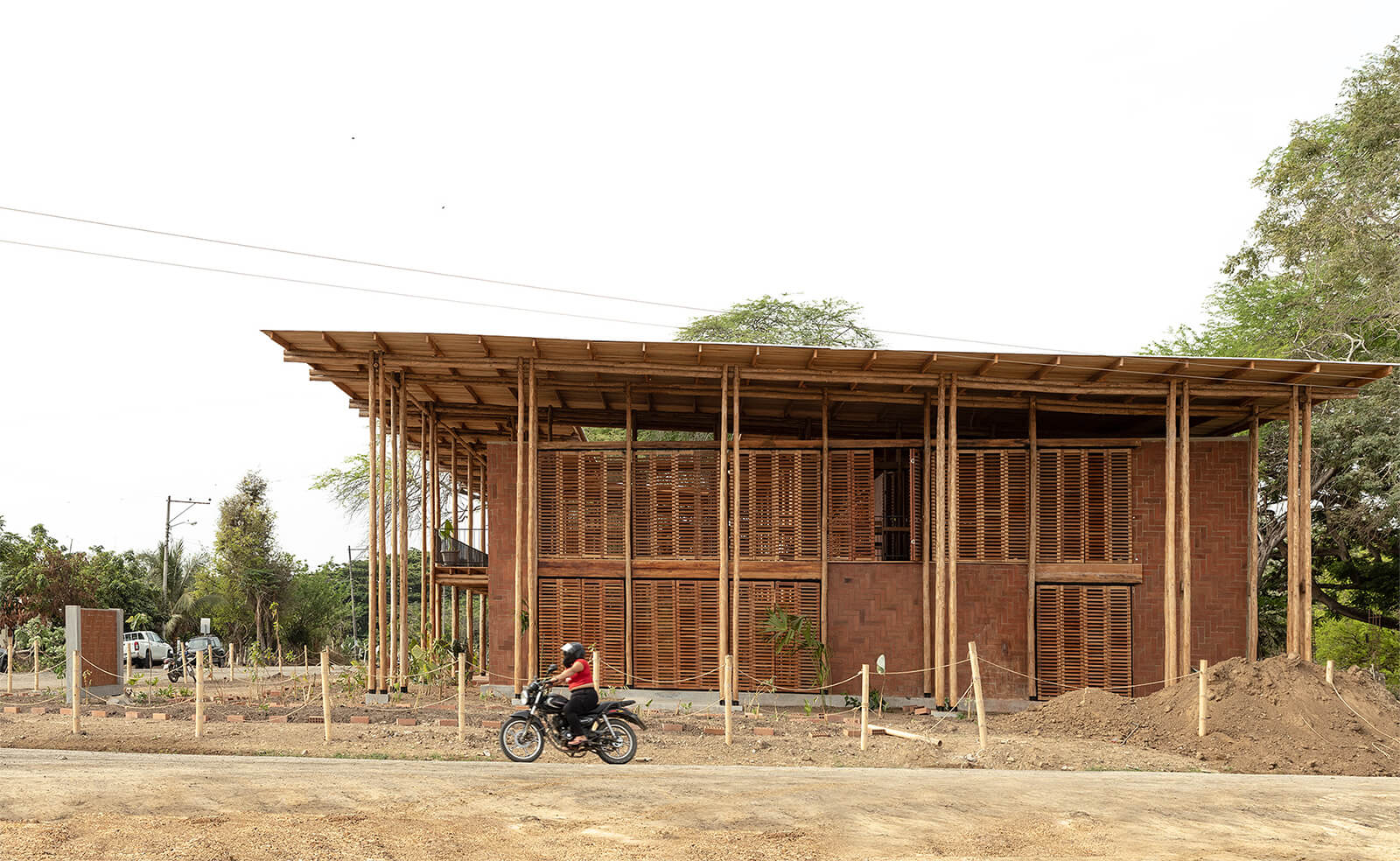

    Las Tejedoras is situated on the outskirts of the urban community of Chongón, Ecuador, which has a population of around 4,900 people Image: Courtesy of JAG Studio

Aimed at enabling these women weavers to express themselves and their aspirations, the community design project, situated on the outskirts of the urban community of Chongón, Ecuador in South America, is nourished with a ‘radical and concise’ intent — a place of purpose, built by and for the community.

Teak wood supports and elevates an expansive roof that stretches over most of the structure, leaving the Center open to the sky above | Las Tejedoras Community Productive Development Center | STIRworld

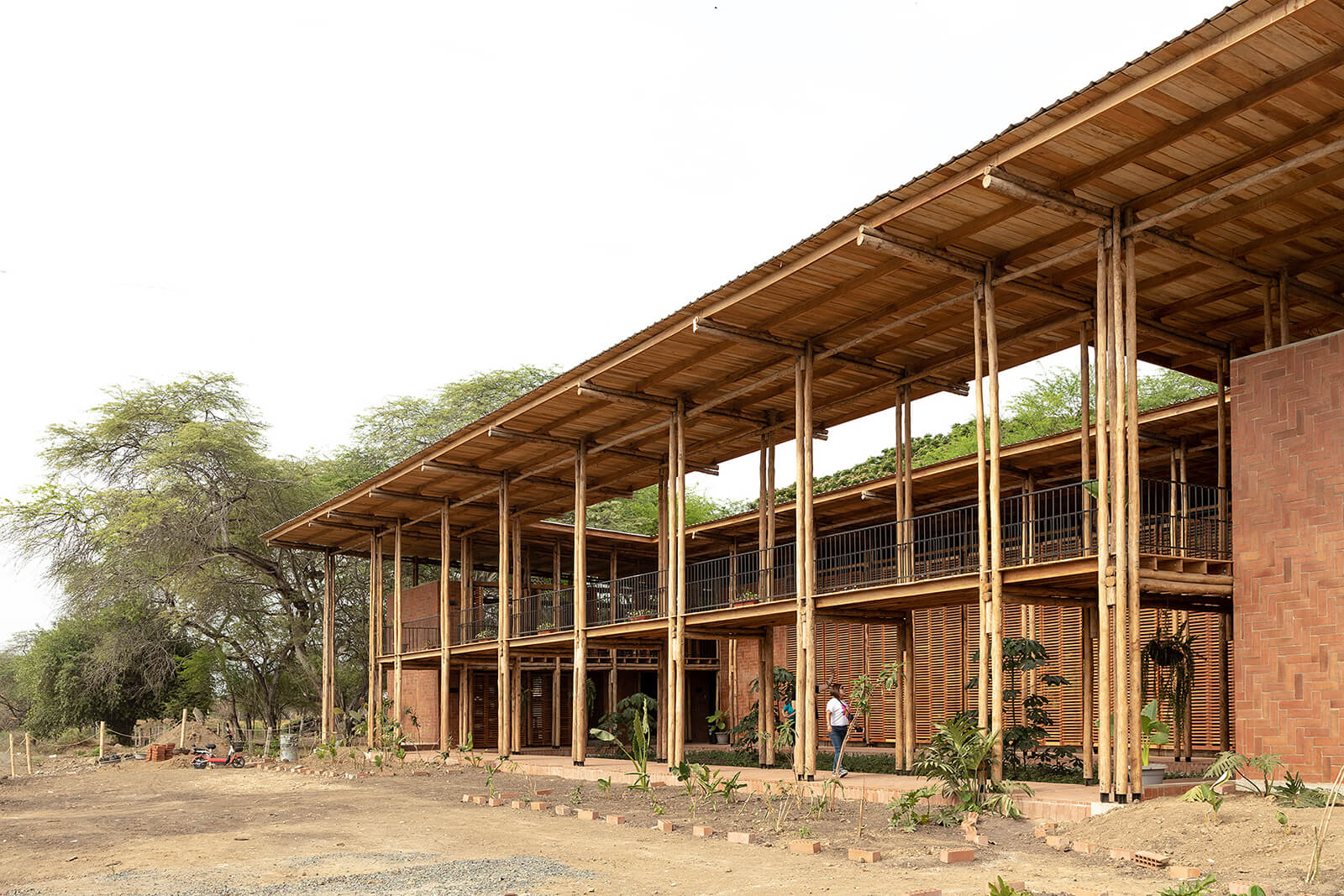

Teak wood supports and elevates an expansive roof that stretches over most of the structure, leaving the Center open to the sky above Image: Courtesy of JAG Studio

“Architecture as a tool for the insertion, linkage and support of women weavers”

The narrative begins in Chongón, home to about 4,900 people, with a majority of women excluded from its economically active sections and carrying little to no possibility of entering and succeeding in the labour niche. Since 2009, the philanthropic Young Living Foundation has dedicated itself to generating programs empowering communities through education and entrepreneurship. It commenced the Young Living Academy, where approximately 150 low-income children, whose mothers are part of the local productive workshops, study. This led to the formation of the Organization of Bromelias Artisan Women, the group focusing on their development through handmade fabrics and natural fibres. Over time, Las Bromelias has grown its active members, resulting in a requirement for new, dedicated space that supports, hosts and enables its activities.

A glimpse of the activities hosted at Las Tejedoras Video: José Fernando Gómez (founder, Natura Futura) and Juan Carlos Bamba; Courtesy of Young Living Foundation - Andrea Ollague; Courtesy of Escape Fotografía; Image: Courtesy of JAG Studio

Las Tejedoras thus developed its design and construction through the transdisciplinary work of the Young Living Foundation, together with Las Bromelias, who reached out to designers and architects José Fernando Gómez Marmolejo (founder of Natura Futura) and Juan Carlos Bamba (founder of Juan Carlos Bamba), with an objective to generate a productive centre for learning, integration-exchange and the eventual sales of artisan handicrafts. “The purpose is that the work processes are a training and insertion tool, for which several construction workshops were held with the community and family members of the academy, in order to generate skills that help strengthen local and environmental development,” the project’s description relays.

  • The project’s primary goal was to create a productive centre focused on learning, community integration and exchange, as well as the sale of artisan handicrafts | Las Tejedoras Community Productive Development Center | STIRworld

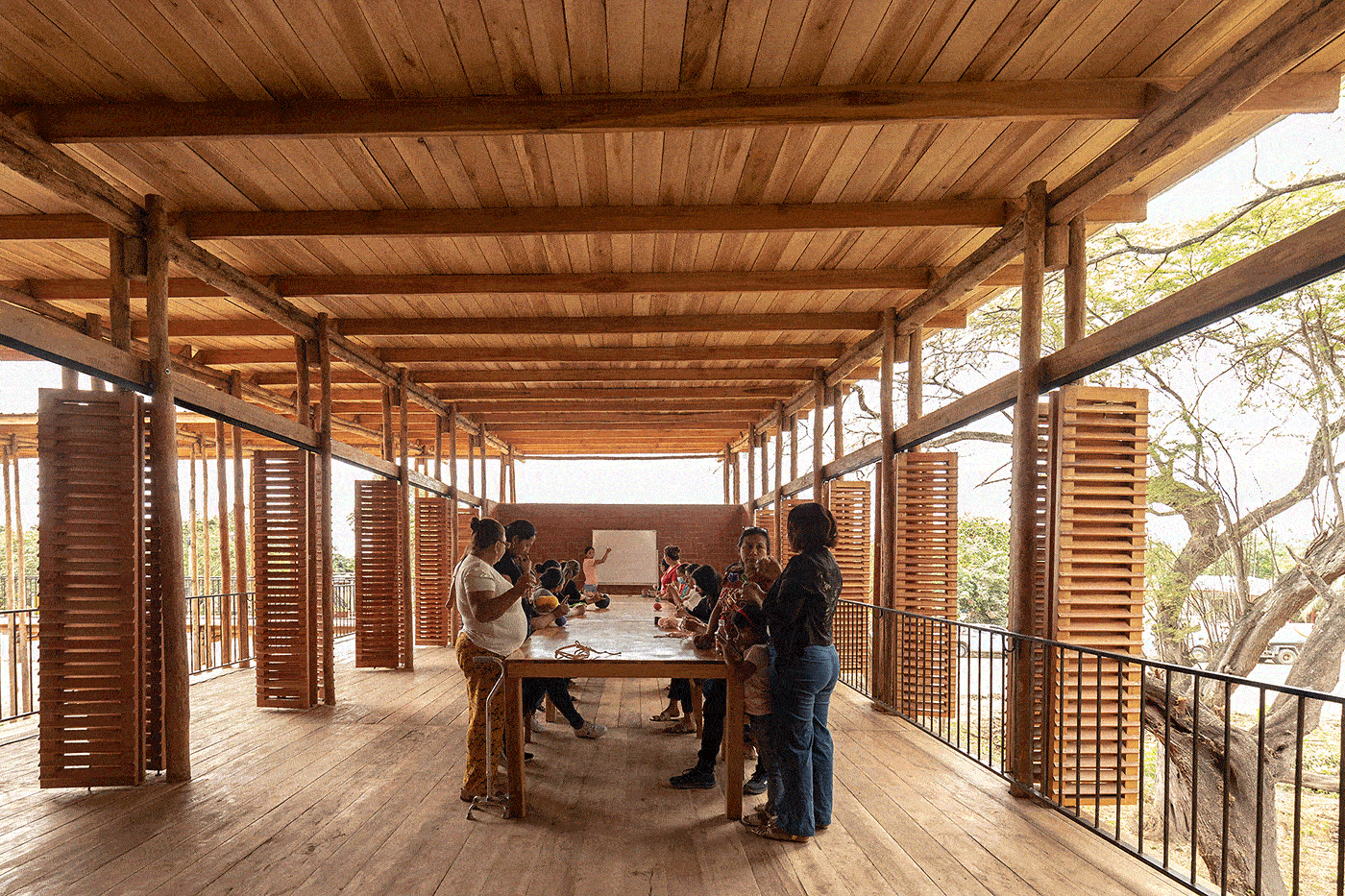

    The project’s primary goal was to create a productive centre focused on learning, community integration and exchange, as well as the sale of artisan handicrafts Image: Courtesy of JAG Studio
  • Teak wood and local brick become the primary materials realising the project | Las Tejedoras Community Productive Development Center | STIRworld
    Teak wood and local brick become the primary materials realising the project Image: Courtesy of JAG Studio

“Las Tejedoras seeks to be a space for [the] intermediation of productive development processes, linking unemployed women through active participation, the potentiation of local artisan techniques and the revitalisation of learning as an empowerment tool,” the architects relay. The community centre thus becomes a safe public space, proffering workshops for the women artisans supported by the foundation and extending education to adults to complete their primary and secondary schooling in its premises. Beyond its programme, it emerges as a congregational place, one of inspiration and light-hearted interactions, one that reaches many corners of the community, making an impact with its focus on education and skill development, community engagement and social interactions.

The design and construction of the project was realised through the collaborative, transdisciplinary efforts of the Young Living Foundation, Las Bromelias, Natura Futura, and Juan Carlos Bamba | Las Tejedoras Community Productive Development Center | STIRworld
The design and construction of the project was realised through the collaborative, transdisciplinary efforts of the Young Living Foundation, Las Bromelias, Natura Futura, and Juan Carlos Bamba Image: Courtesy of JAG Studio

Conscious architecture through participatory design

The architects also highlight the active participation of the women weavers in the centre’s design and how they have continued to be involved in its functioning, emphasising the project fulfilling its mission of dignifying their work and supporting their ambition to learn and grow. As Gómez and Bamba tell STIR, “The women weavers, through the organisation Las Bromelias, had been working with the Young Living Foundation long before we were commissioned to design the centre. Therefore, community involvement has been integral from the very conception. They later assisted in designing the program of requirements, building walls, cultivating endemic vegetation and are currently involved in programming activities at the centre.”

  • The two-storey community building is arranged around a central courtyard | Las Tejedoras Community Productive Development Center | STIRworld

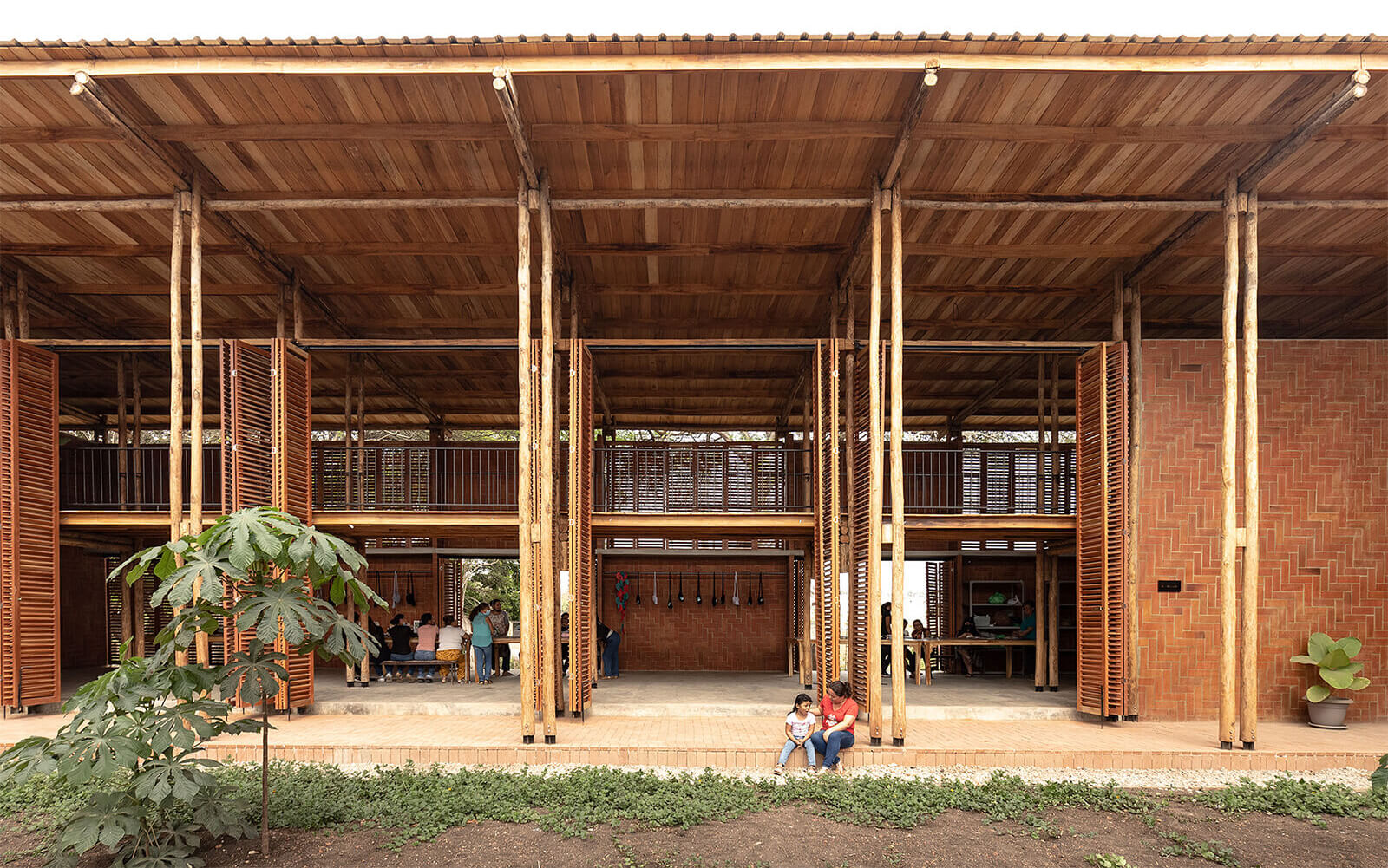

    The two-storey community building is arranged around a central courtyard Image: Courtesy of JAG Studio

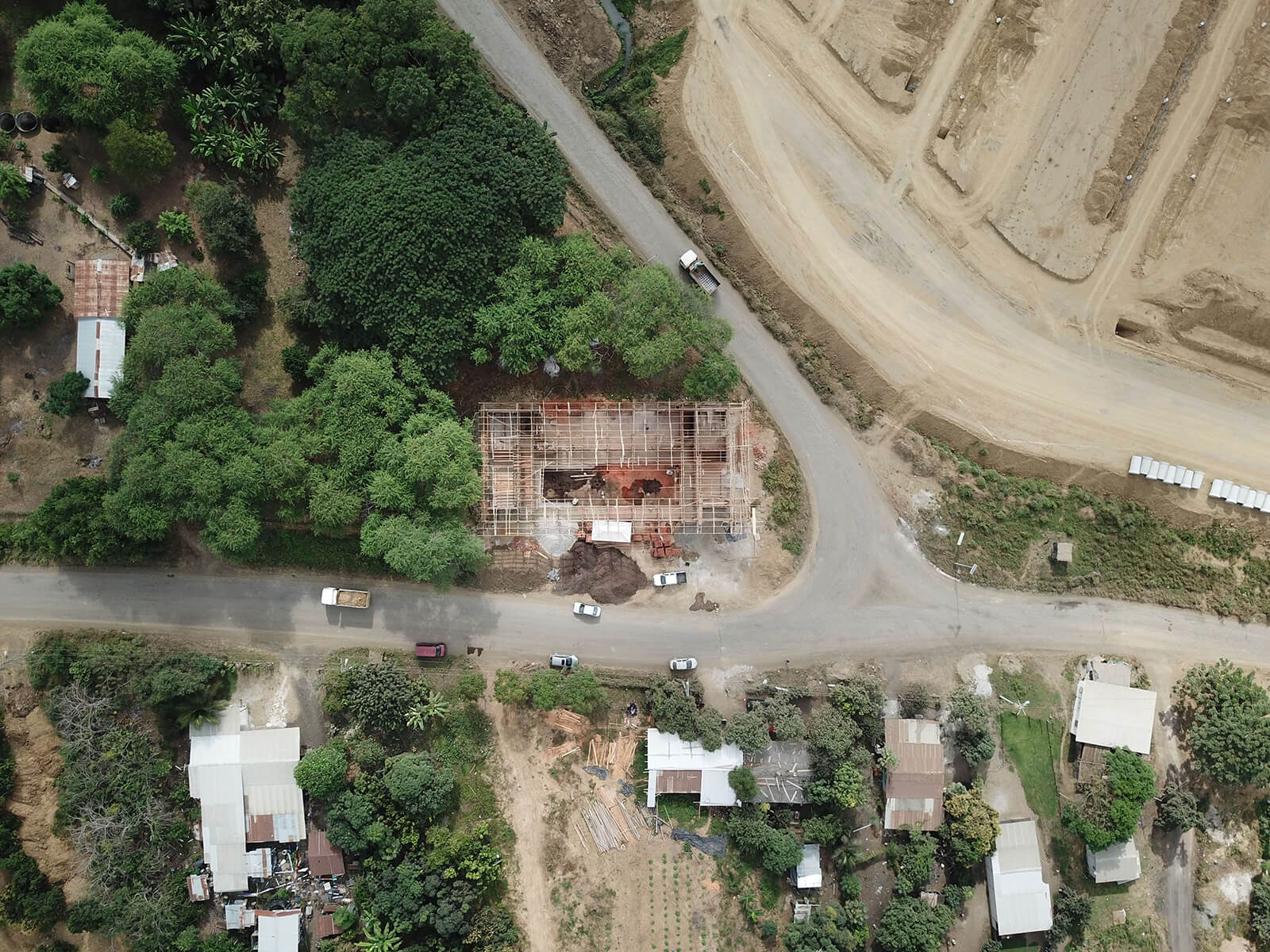

  • Aerial view of the building’s construction | Las Tejedoras Community Productive Development Center | STIRworld
    Aerial view of the building’s construction Image: Courtesy of JAG Studio

As stated by Gómez and Bamba, the main facets of the textile workspace and community centre emerged primarily from the process of developing and building it with the women weavers. Concurrently, its design was inspired by the traditional techniques the locals utilise to construct their wooden homes as well as the ancestral knowledge of building in a natural environment with a tropical climate like Chongón’s.

Young, round teak wood articulates the main structure, a ubiquitous regional material | Las Tejedoras Community Productive Development Center | STIRworld
Young, round teak wood articulates the main structure, a ubiquitous regional material Image: Courtesy of JAG Studio

According to the Mies Crown Hall Americas Prize, the development centre is situated near an urban development project from the Guayaquil municipality, where 180 hectares of dry tropical forest were cleared during construction. “The project is expressed as a criticism of such residential development by incorporating endemic vegetation that manages to reveal new possibilities of environmentally conscious architectures, with the intention of encouraging debate towards the generation of public policies aligned with the SDG (sustainable development goals),” as noted in the project's official description on the Prize’s website.

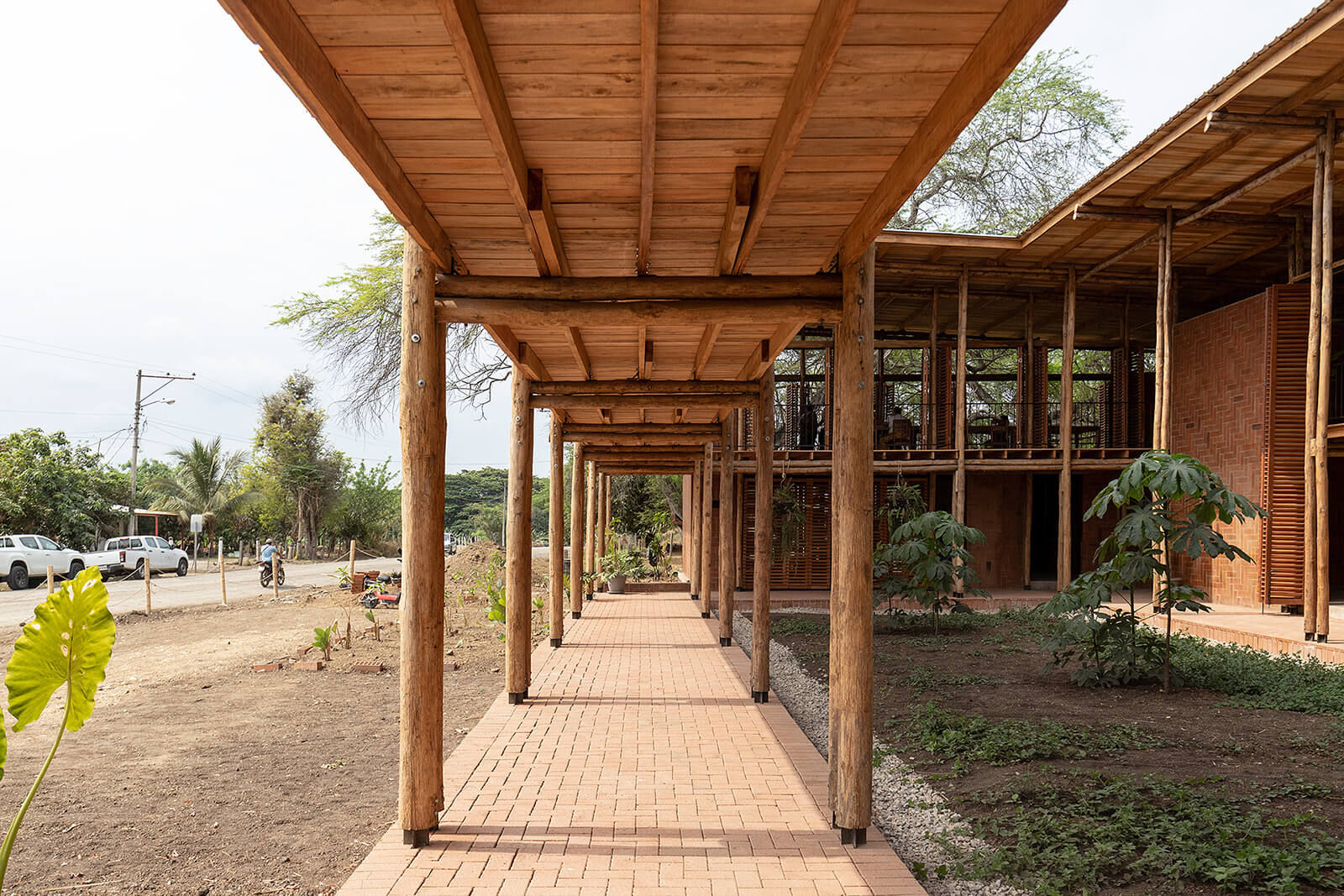

Passages on both are either completely open or placed behind brick walls | Las Tejedoras Community Productive Development Center | STIRworld

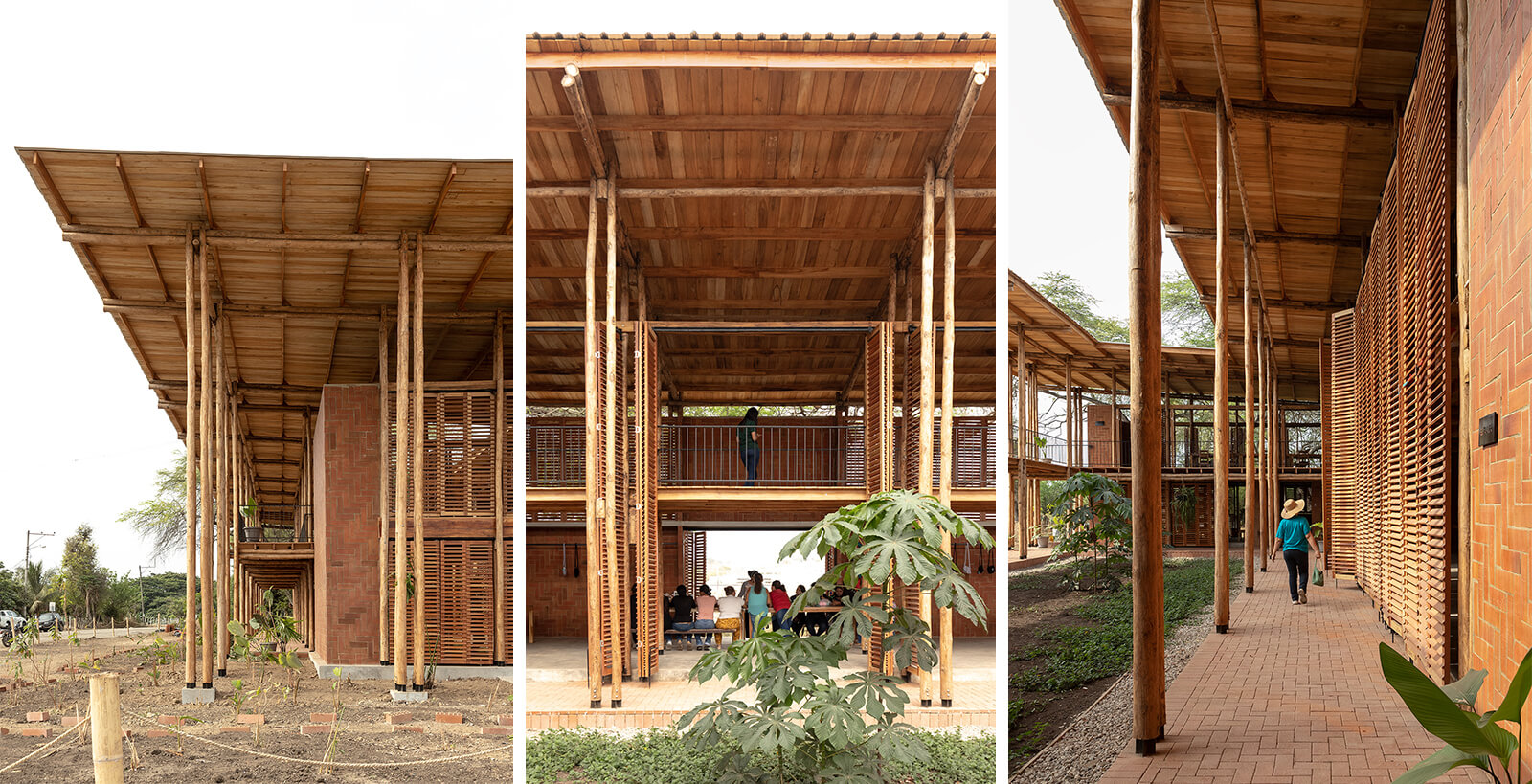

Passages on both are either completely open or placed behind brick walls Image: Courtesy of JAG Studio

Elaborating on the same, Bamba and Gómez tell STIR, “We believe the project had to be a manifesto against the destructive urban development currently taking place in the city of Guayaquil, proposing sustainable alternatives from a social, environmental and economic perspective through a radical and concise project.”

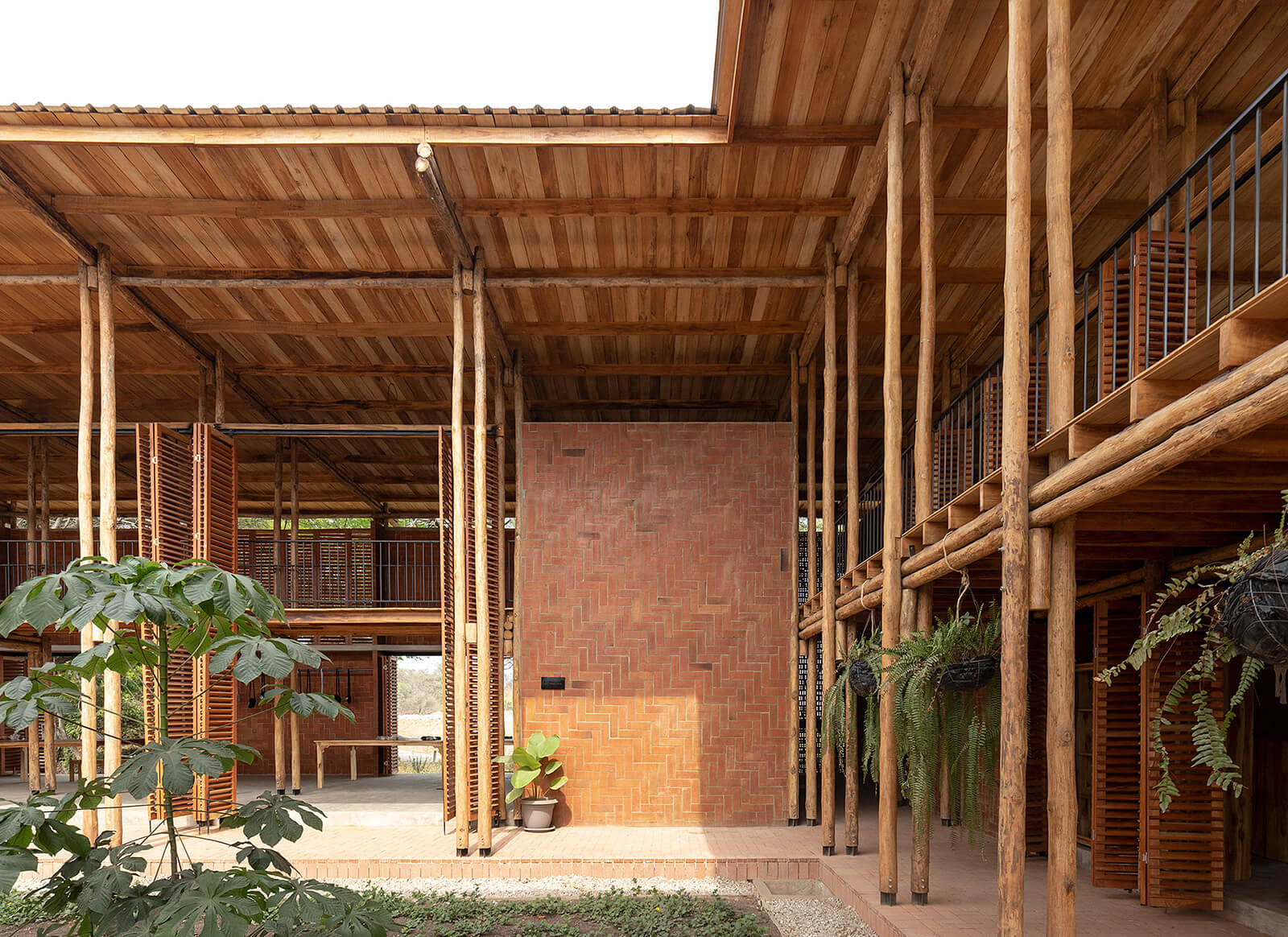

Local materials such as teak wood and clay brick are used, the latter arranged in an intricate herringbone pattern in the project | Las Tejedoras Community Productive Development Center | STIRworld
Local materials such as teak wood and clay brick are used, the latter arranged in an intricate herringbone pattern in the project Image: Courtesy of JAG Studio

The community architecture’s central patio is conceived as a meeting and exhibition space surrounded by endemic vegetation, contained by two side naves and a central one — one of them hosts theoretical training classrooms, a cafeteria and hygienic services while the other features practical learning workshops, sleeping spaces, warehouses and a store to sell the products developed in the central nave, where the artisan fabrics are made.

Local materials such as teak wood and clay brick are used, the latter arranged in an intricate herringbone pattern in the project | Las Tejedoras Community Productive Development Center | STIRworld
The community center is built by and for the community Image: Courtesy of JAG Studio

“Endemic vegetation has been planted based on the advice of the La Iguana Foundation, experts in plant-based solutions. Currently, the guarumo trees and bromeliads have grown, and the bioclimatic performance of the courtyard has improved,” the authors tell STIR, elaborating on their salient effort against the region’s rapid deforestation.

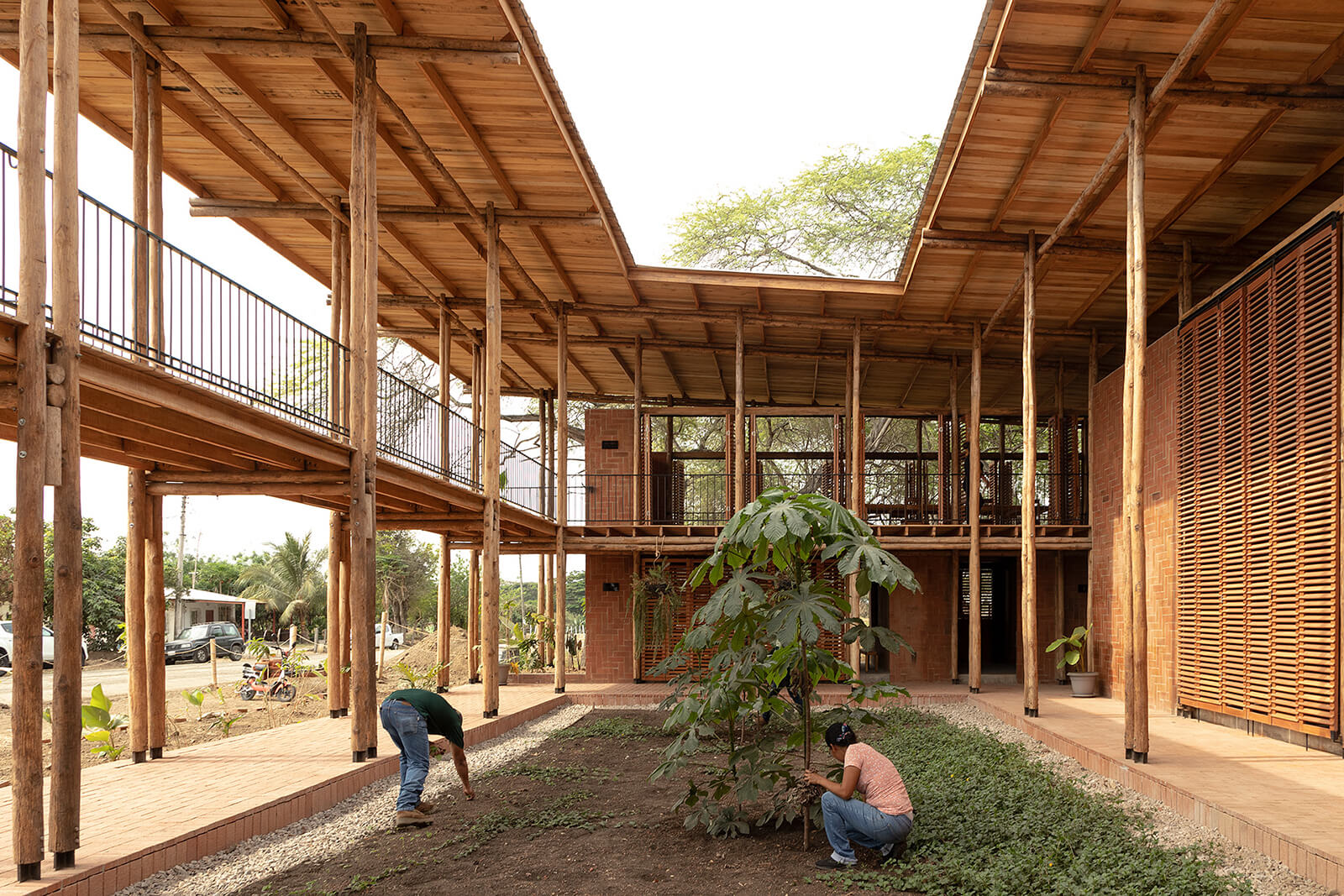

View towards the central patio, which contains endemic plants | Las Tejedoras Community Productive Development Center | STIRworld

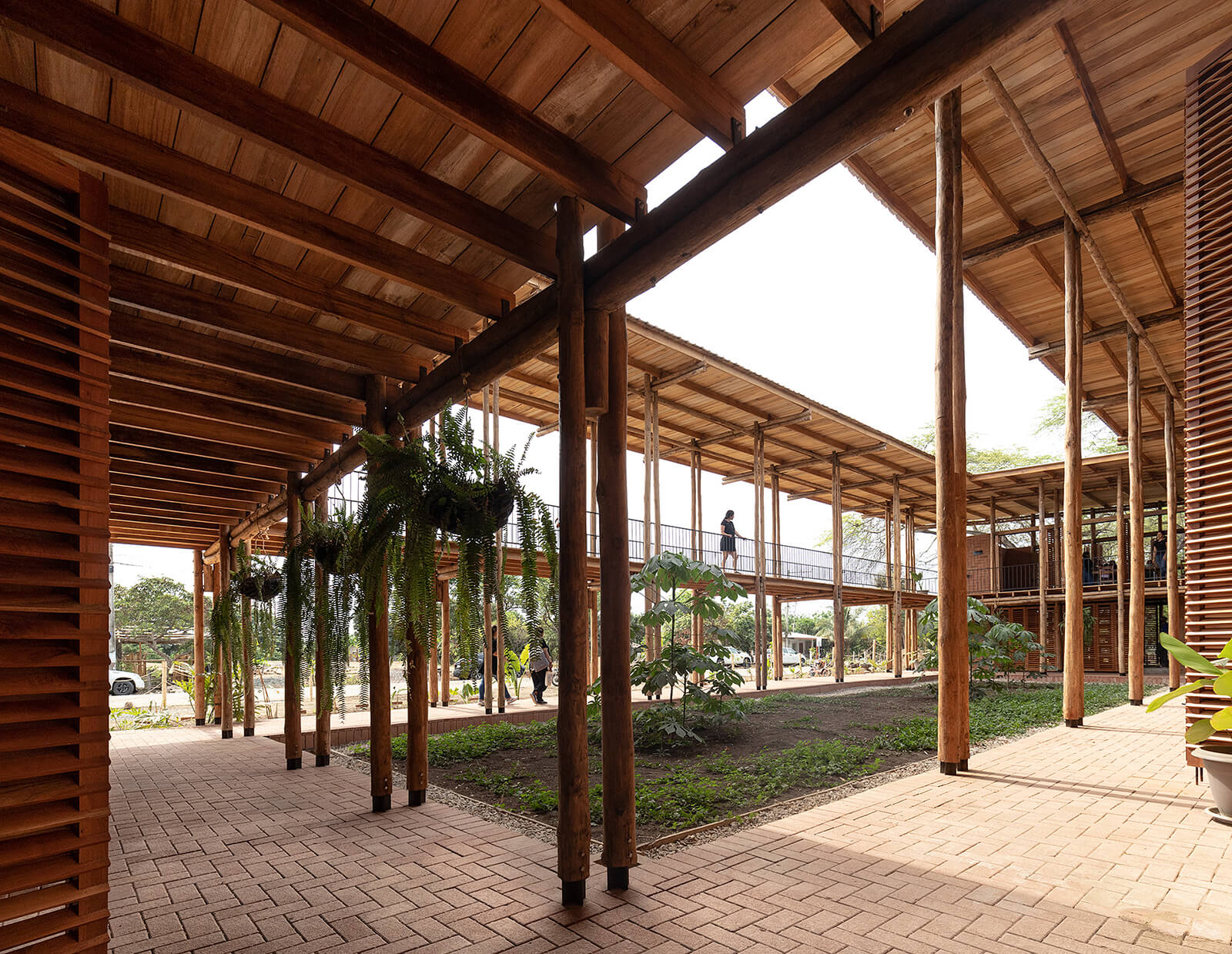

View towards the central patio, which contains endemic plants Image: Courtesy of JAG Studio

The main front is a productive exhibition gallery, which doubles up as a filter for the lushly planted courtyard design and as an element generating urbanity towards the street, the architects mention. In contrast, the rear façade is more closed off towards the dividing space, providing greater control and security. Supporting the roof and the upper level’s floor, young, round teak wood articulates the main structure, a ubiquitous regional material used for the base supports of stilt houses in vulnerable areas here, owing to its hardness and durability.

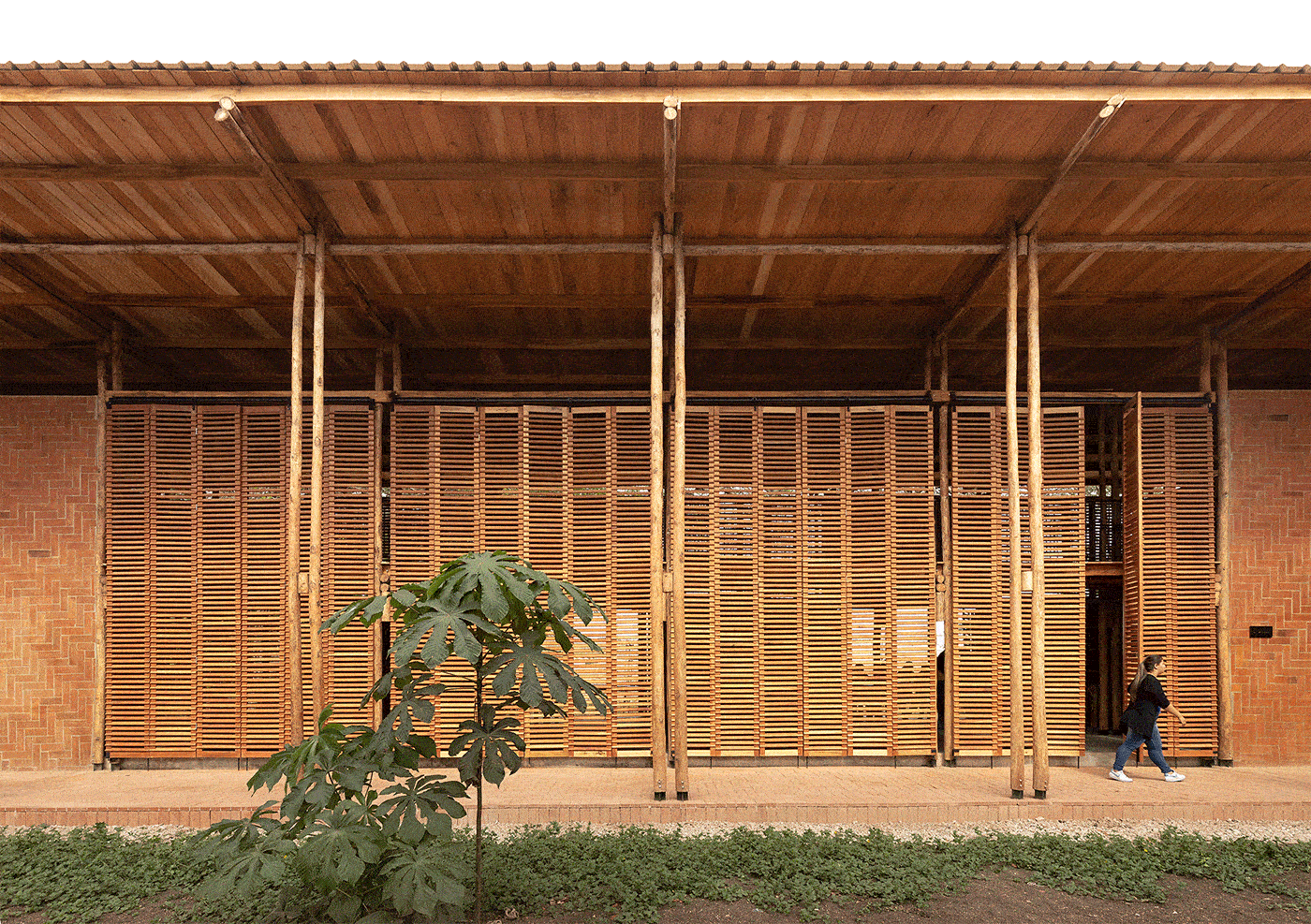

Folding wooden lattice screens were also designed and incorporated to regulate ventilation and illumination inside the centre | Las Tejedoras Community Productive Development Center | STIRworld

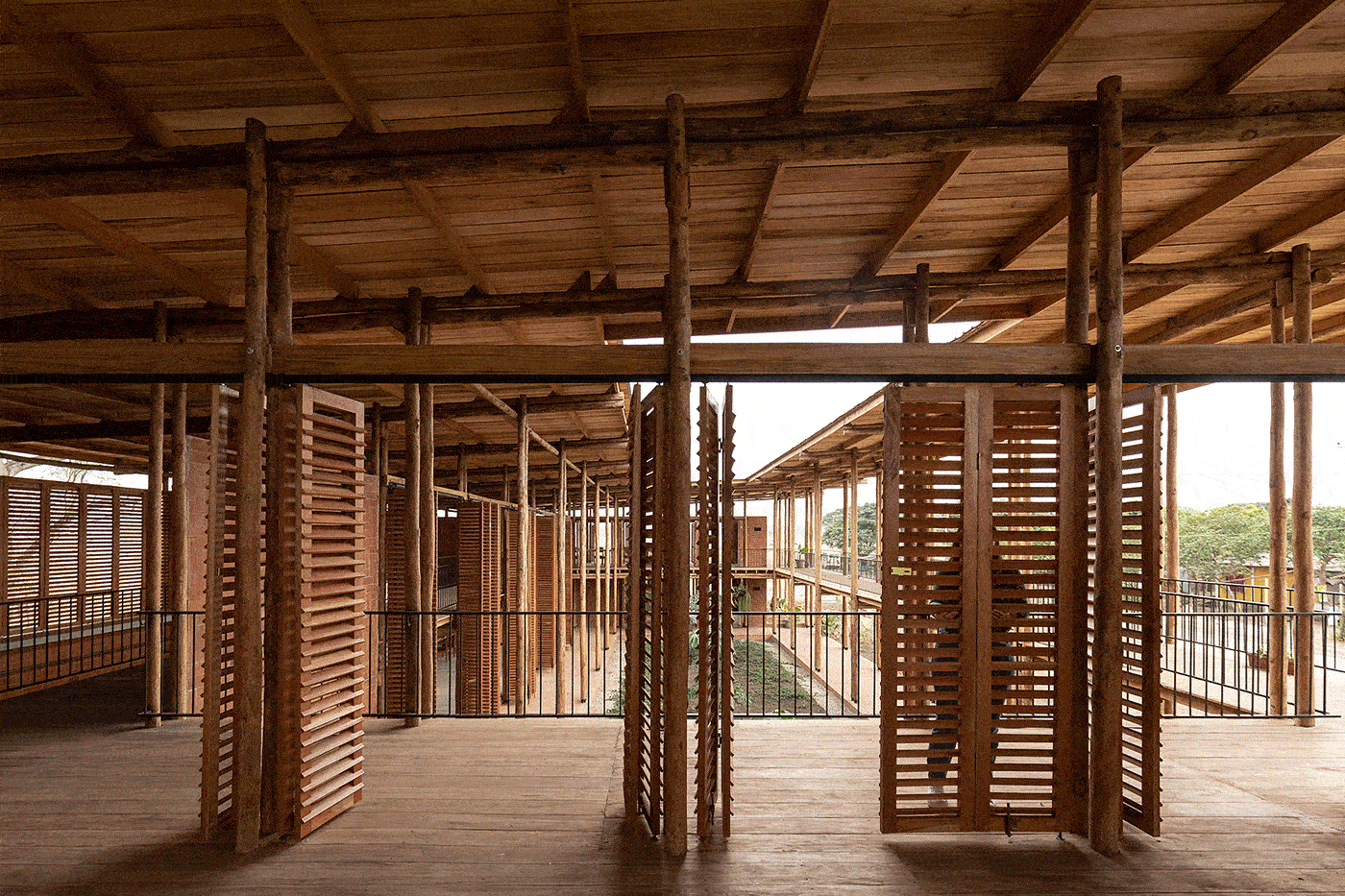

Folding wooden lattice screens were also designed and incorporated to regulate ventilation and illumination inside the centre Image: Courtesy of JAG Studio

Folding wooden lattice doors (a common element in the architecture of the Ecuadorian coast known as chazas, as per Bamba) were also created and incorporated to help control ventilation and illumination. These screens create flexible, naturally ventilated spaces that maintain occupant comfort sans air conditioning — an impressive feat given the region’s high humidity and temperature levels. The local earthen brick walls of the community building feature a herringbone weave pattern, stiffened by the very shape of the interlocked brick themselves, adding to the design’s subtle details and appeal.

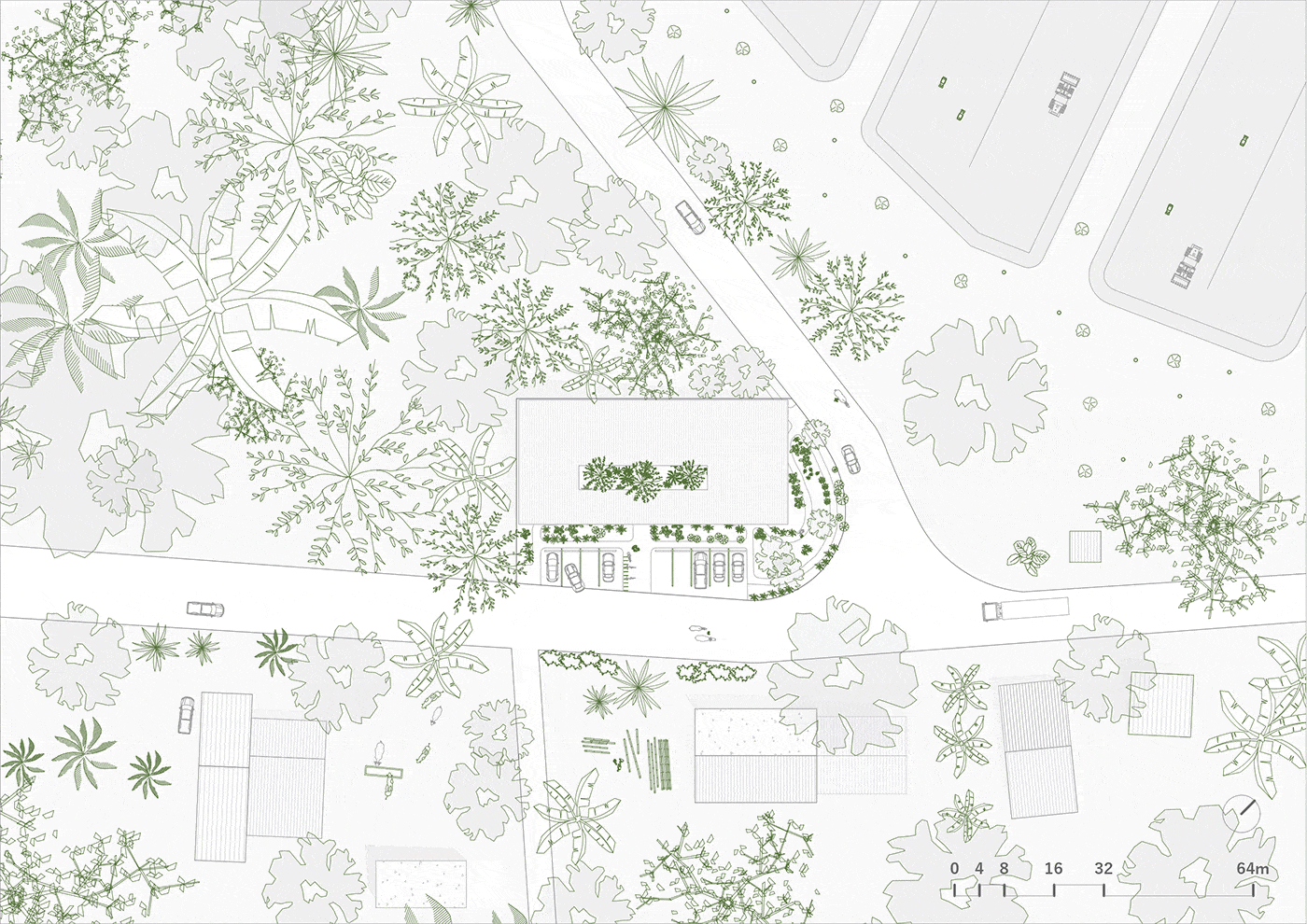

Las Tejedoras: Site plan; floor plans; open cross-section; open longitudinal section; axonometric exploded diagram; drawing detail of the screen | Las Tejedoras Community Productive Development Center | STIRworld
Las Tejedoras: Site plan; floor plans; open cross-section; open longitudinal section; axonometric exploded diagram; drawing detail of the screen Image: Courtesy of José Fernando Gómez Marmolejo (founder of Natura Futura) + Juan Carlos Bamba

Architectural activism in public buildings involves conceptualising and creating frameworks for projects that promote social equity, affordability, cultural relevance and environmental justice. It also carries, in tandem, a hope and vision to conceive inclusive and resilient communities through conscious and responsible practices. Central to this approach/ vocation/ intention is the keyword of ‘participatory design,’ which rethinks spaces and practises to effectively meet the needs of the communities they serve, where its members are actively involved in the development of projects, ensuring their voices are heard, their contributions seen and polished, and their stories told — as manifested and attested in the mindful design of the Las Tejedoras Community Productive Development Center.

Project Details

Name: Las Tejedoras
Location: Chongón, Guayaquil, Ecuador
Client: Young Living Foundation - Andrea Ollague
Architect: José Fernando Gómez Marmolejo (designer, founder of Natura Futura) + Juan Carlos Bamba (designer, founder of Juan Carlos Bamba)
Management and administration: Young Living Foundation
Collaborators: Pablo Ponce (principal builder); Andrea Ollague, Hector Perlaza, Fundacion La Iguana, Bromelias, Andres Ortega; Andres Ortega, Cynthia Rosero (graphics); Escape Fotografía (drone); Jaime Peña (illustrations)
Year of Completion: 2023
