HUMA Arquitectura restores centuries-old Torre del Agua in Aledo, Spain

The Spanish architectural studio utilised the original materials and construction techniques to restore the water tower stationed on the slope of the hilly Aledo municipality.

by Almas SadiquePublished on : May 02, 2024

Beyond the relics of monumental structures that pronounce the glory of past dynasties, one seldom gets a chance to witness remnants from the past in the form of material heritage. The households of the common public, structures constructed for public usage and modestly sized commemorative monuments are usually the first ones to bear the brunt of developmental projects and the onslaught of newer civilisations and empires. Despite such consternation, when such structures manage to persist through the years, their endurance is commonly attributed to their obscure location or the association of fascinating lores (think: the Khooni Darwaza in New Delhi, India) with the locale. However, despite their endurance, conservation efforts directed their way are scant, ergo, expunging the didactic potential of such material sites.

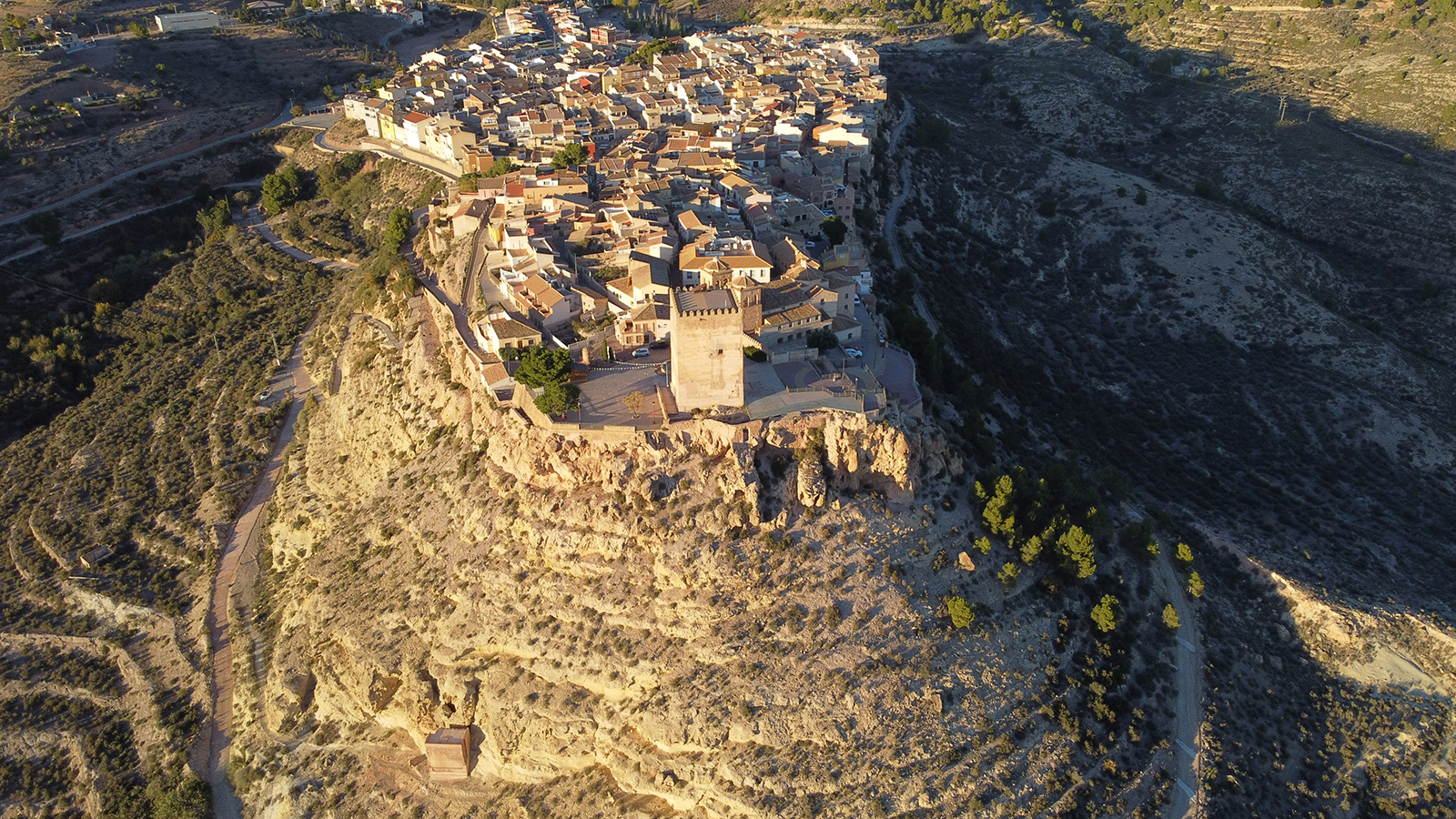

  • Bird’s eye view of Aledo | Torre del Agua | HUMA Arquitectura | STIRworld
    Bird’s eye view of Aledo Image: Courtesy of HUMA Arquitectura

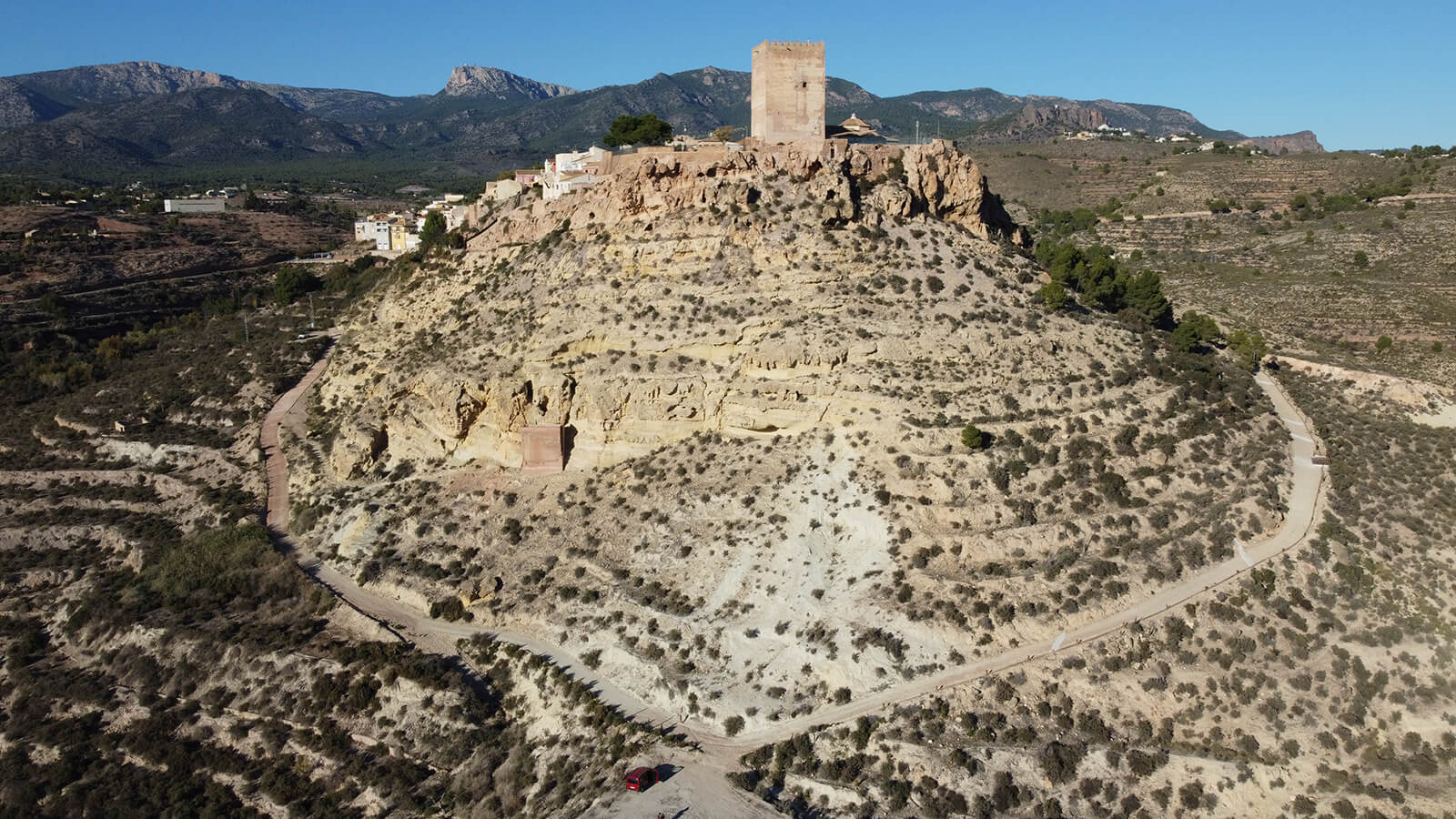

  • The town of Aledo is crowned with a castle tower on the top of the hill  | Torre del Agua | HUMA Arquitectura | STIRworld
    The town of Aledo is crowned with a castle tower on the top of the hill Image: Courtesy of HUMA Arquitectura

Hence, coming across Spain-based design practice HUMA Arquitectura’s recent restoration project Torre del Agua or Water Tower, which is humble in both size and decoration, was a welcome surprise. Enunciating upon their affinity for heritage conservation and restoration projects, the architects at HUMA Arquitectura share, "Restoration for HUMA is a way to understand the memory of the place and be able to give it continuity from a current vision. For us, it seems like a learning field for the development of our discipline.” The architecture studio is also currently working on two restoration projects, in the city of Cartagena, Colombia. One of these is the restoration and adaptive reuse of a coastal battery in the Cartagena dock into a museum and the second is the restoration of a 19th century fort and the transformation of parts of it into an interpretation centre.

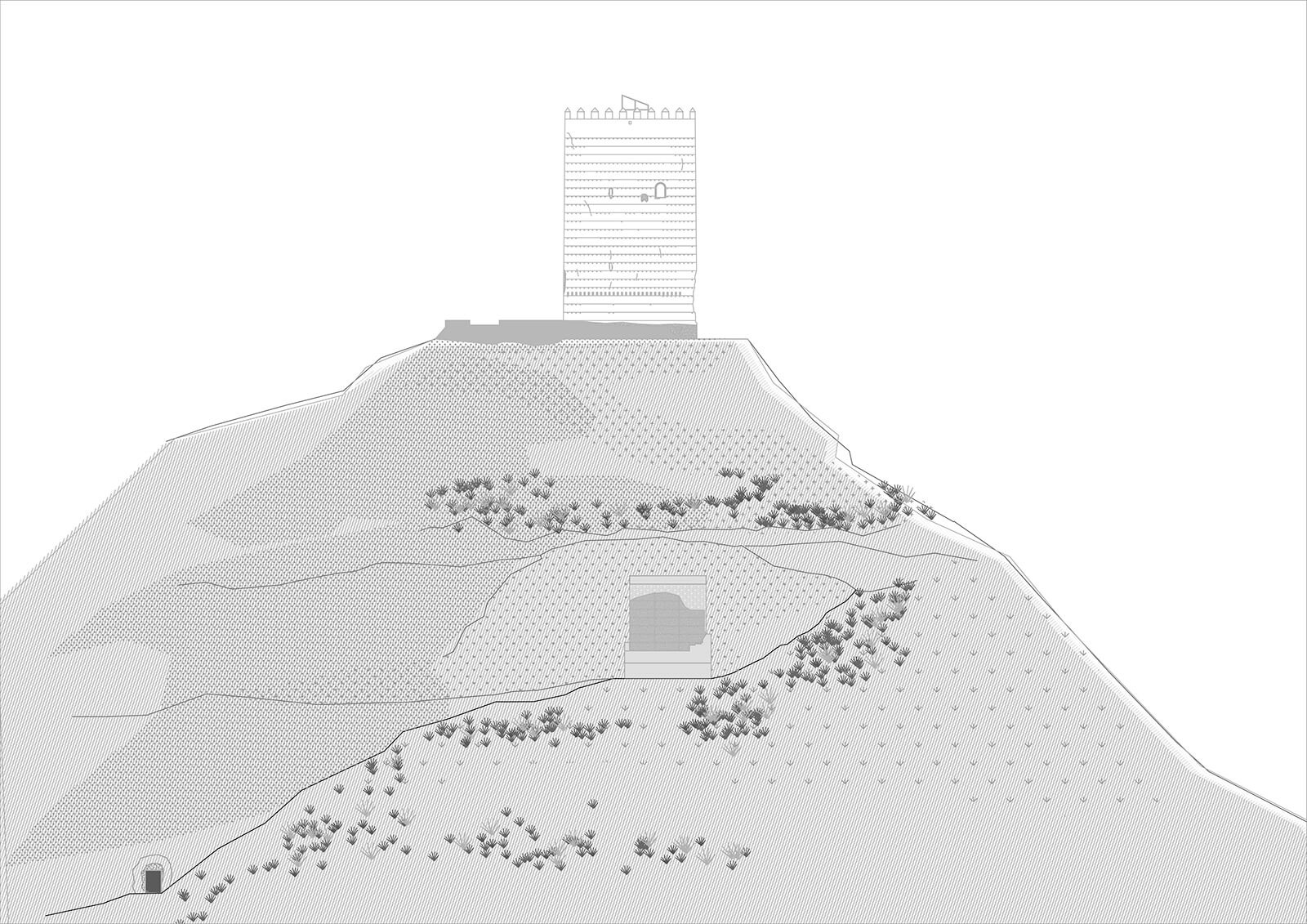

  • Diagram showcasing the castle tower on top and the water tower and snail mill on the slope of the hill  | Torre del Agua | HUMA Arquitectura | STIRworld
    Diagram showcasing the castle tower on top and the water tower and snail mill on the slope of the hill Image: Courtesy of HUMA Arquitectura
  • Stationed on an undulating site, the Water Tower was constructed to defend the town and protect its water source | Torre del Agua | HUMA Arquitectura | STIRworld
    Stationed on an undulating site, the Water Tower was constructed to defend the town and protect its water source Image: Courtesy of HUMA Arquitectura

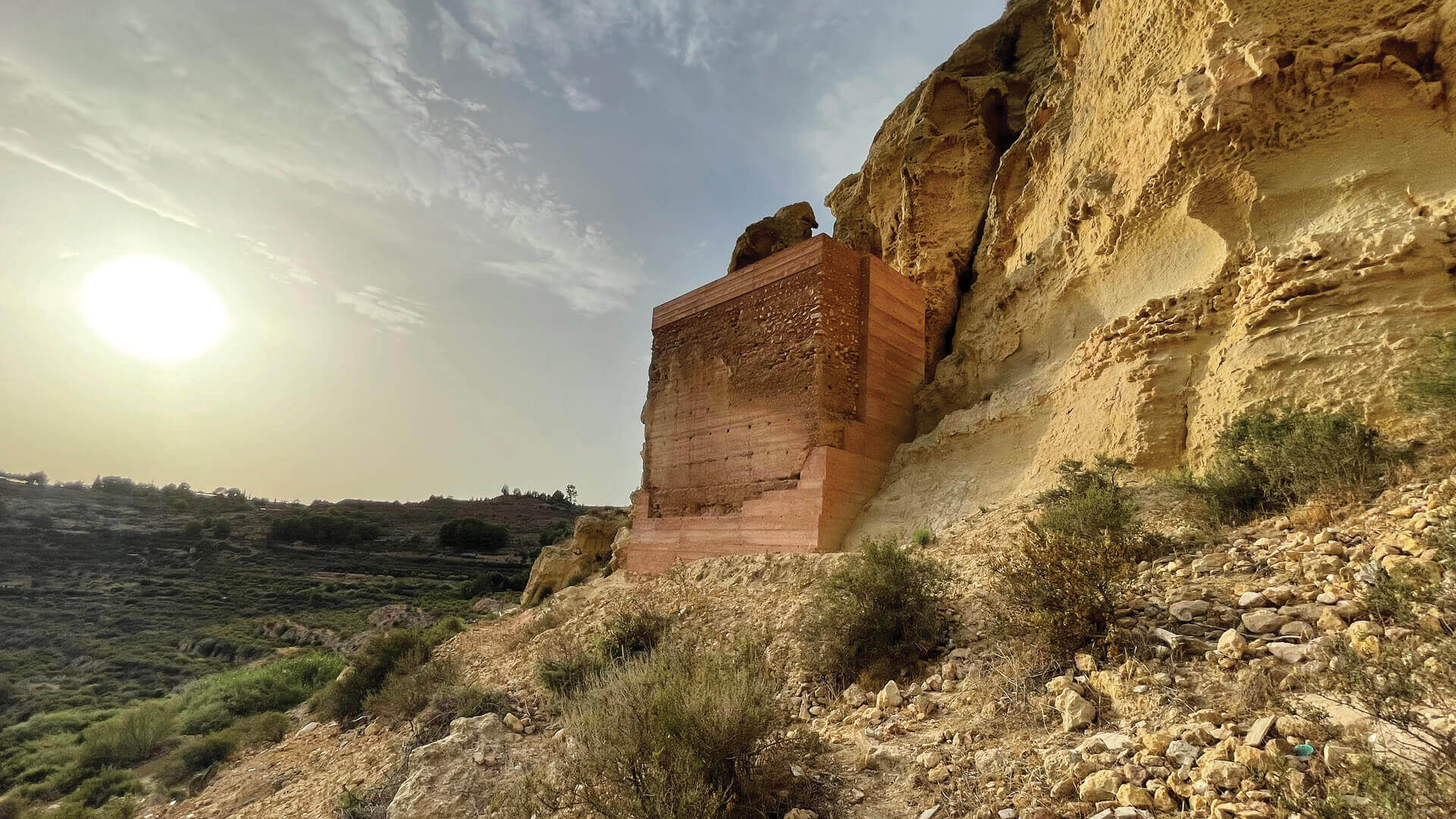

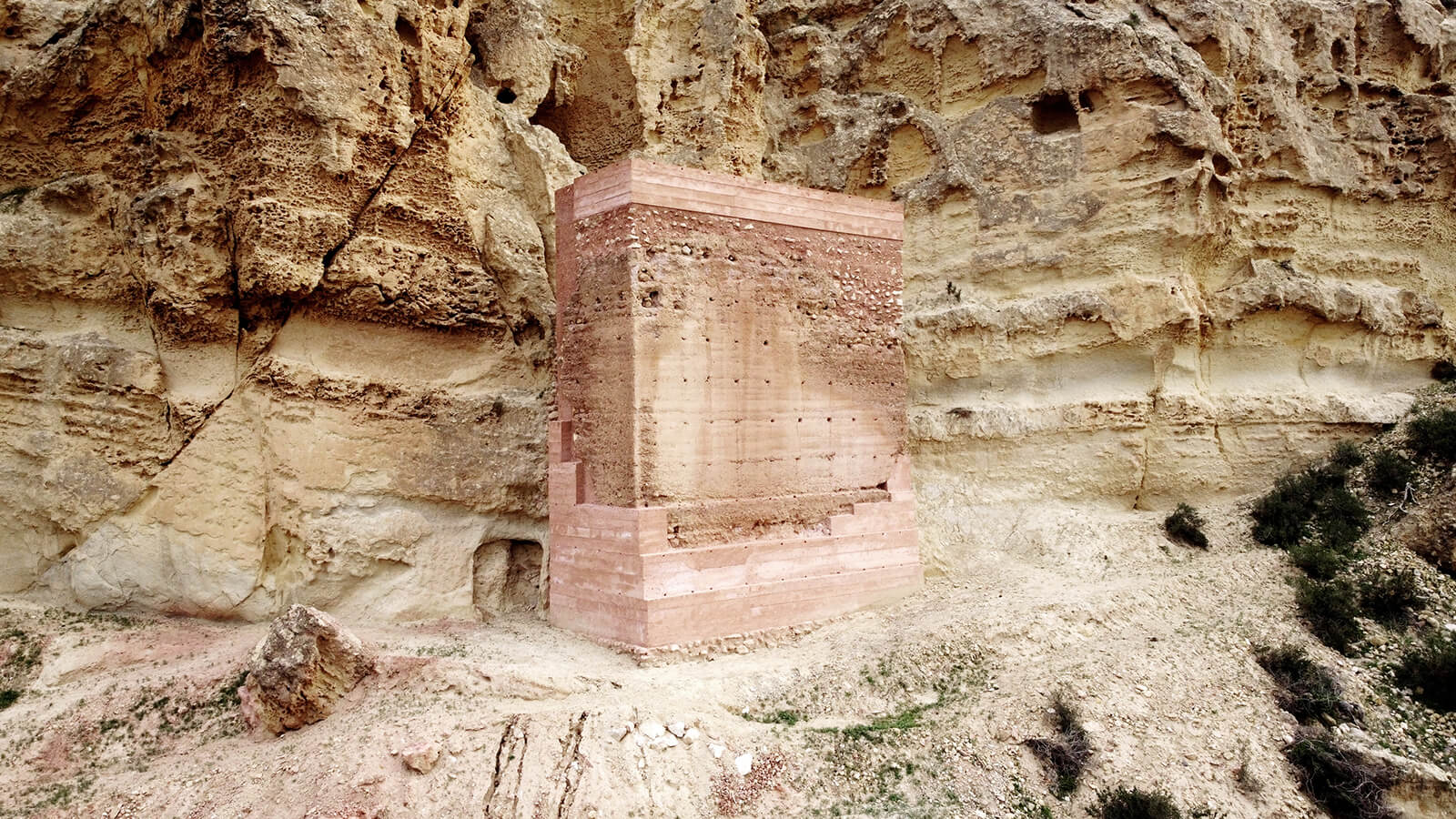

  • Built using vernacular materials, the structure appears to have emerged naturally from the ground | Torre del Agua | HUMA Arquitectura | STIRworld
    Built using vernacular materials, the structure appears to have emerged naturally from the ground Image: Courtesy of HUMA Arquitectura

As for Torre del Agua, the tower is located in the hilltop fortified town of Aledo in Spain. This region, a witness to the conquest and governance of the Umayyad Caliphate and later, the Abbasid Caliphate, bears the imprints of past times in the form of material remnants. The Water Tower, stationed on the slope of the hilly city, was also originally built by the Arabs. A derivative of a previously built tower on the top of the fortified town, Torre del Agua was constructed as part of the locale’s defence system in the lower part of the hilly terrain. While its precursor served the purpose of defence on higher land, the Water Tower was built primarily to prevent enemy access from adjacent roads and to defend the region’s water spring, which served as the source of water for the entire city. “This system is a defence system, already developed by the Arabs in other places where several constructions are designed that, in addition to protecting the town, protect each other,” shares Jose Amoros Martínez, co-founder of the Spanish architecture studio.

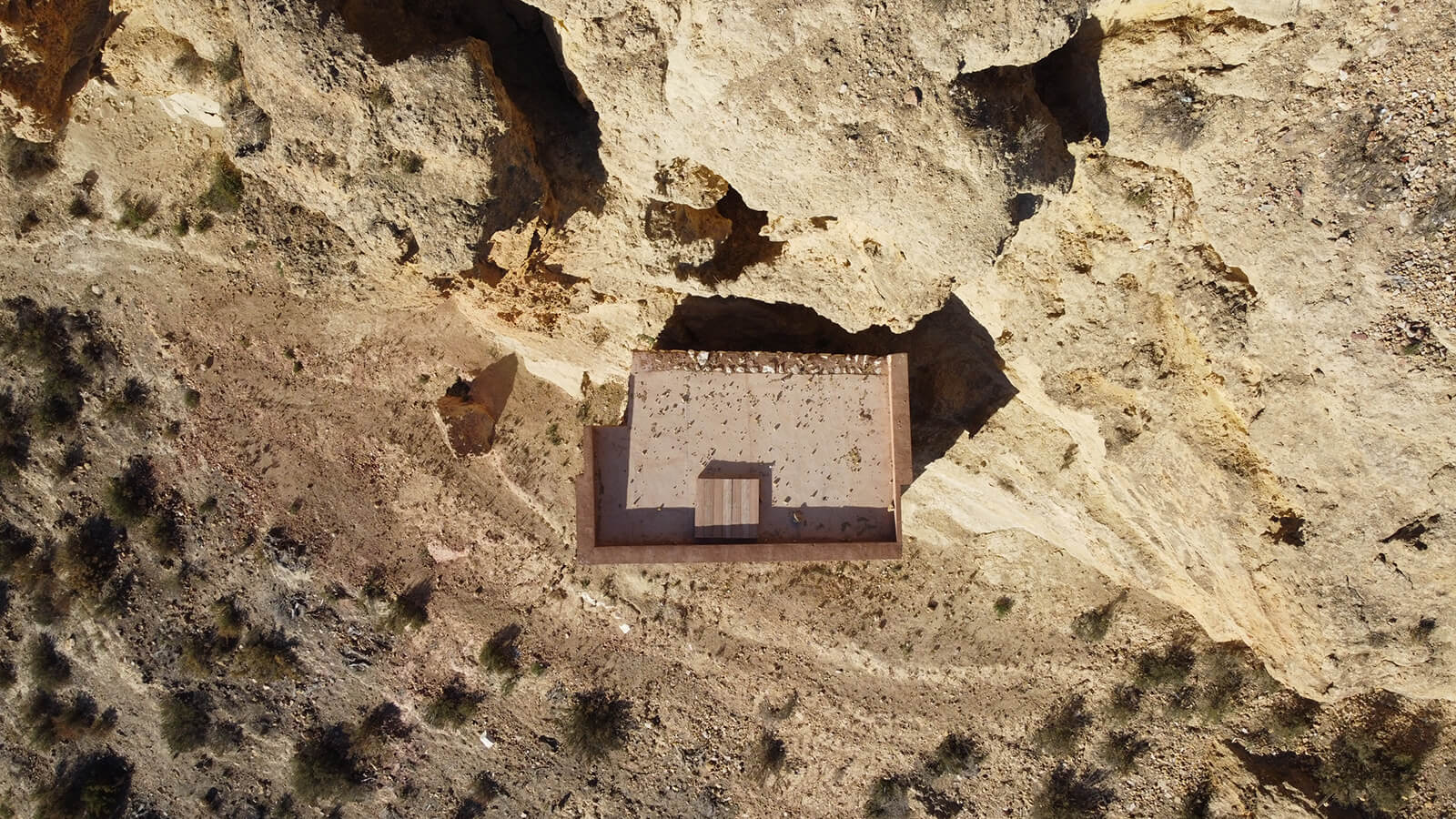

  • Top view of the Water Tower | Torre del Agua | HUMA Arquitectura | STIRworld
    Top view of the Water Tower Image: Courtesy of HUMA Arquitectura

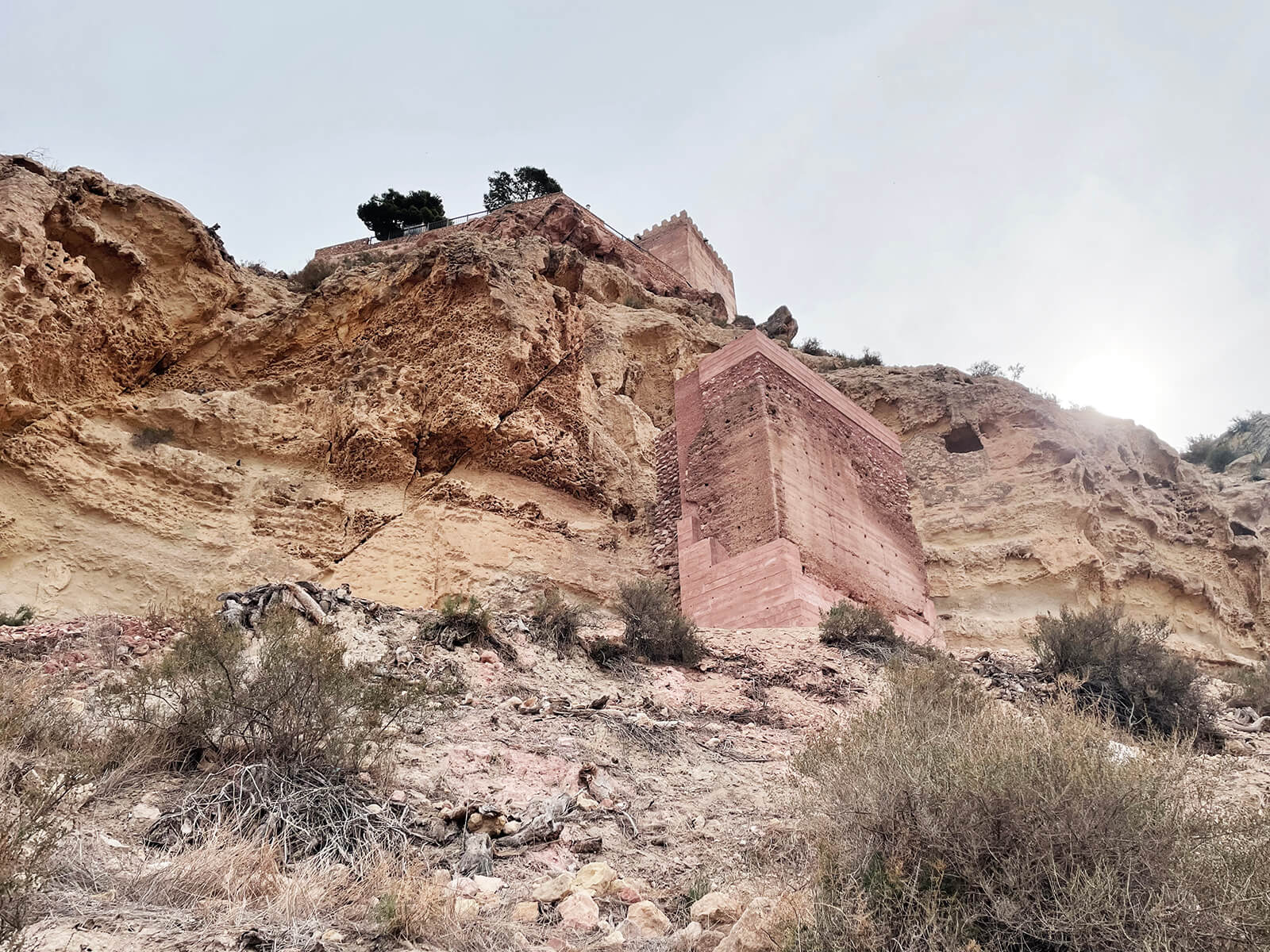

  • The lower and upper towers were parts of the fortified town’s defence system  | Torre del Agua | HUMA Arquitectura | STIRworld
    The lower and upper towers were parts of the fortified town’s defence system Image: Courtesy of HUMA Arquitectura

A means of defence for both life and sustenance in the region, the existence of Torre del Agua directs attention towards the natural waterway channel that emerges from within the mountainous landscape, to be stored (and supplied to the inhabitants housed in the upper area of the town), in cisterns placed in the lower area. Martínez predicts the presence of nearly 5,000 inhabitants in the city during the times when the Water Tower actively defended the city and aided the supply of water to each household. Originally, the walls of the tower, constructed on site, were made using wooden formwork and several vernacular materials such as sand, stone and earth, mixed with lime mortar. The reddish tint of the structure comes from the usage of sand that was acquired from the adjacent slopes. This usage of local materials in the erstwhile era helped the tower integrate well with its surroundings, making it appear like a rock naturally emerging from the undulating site.

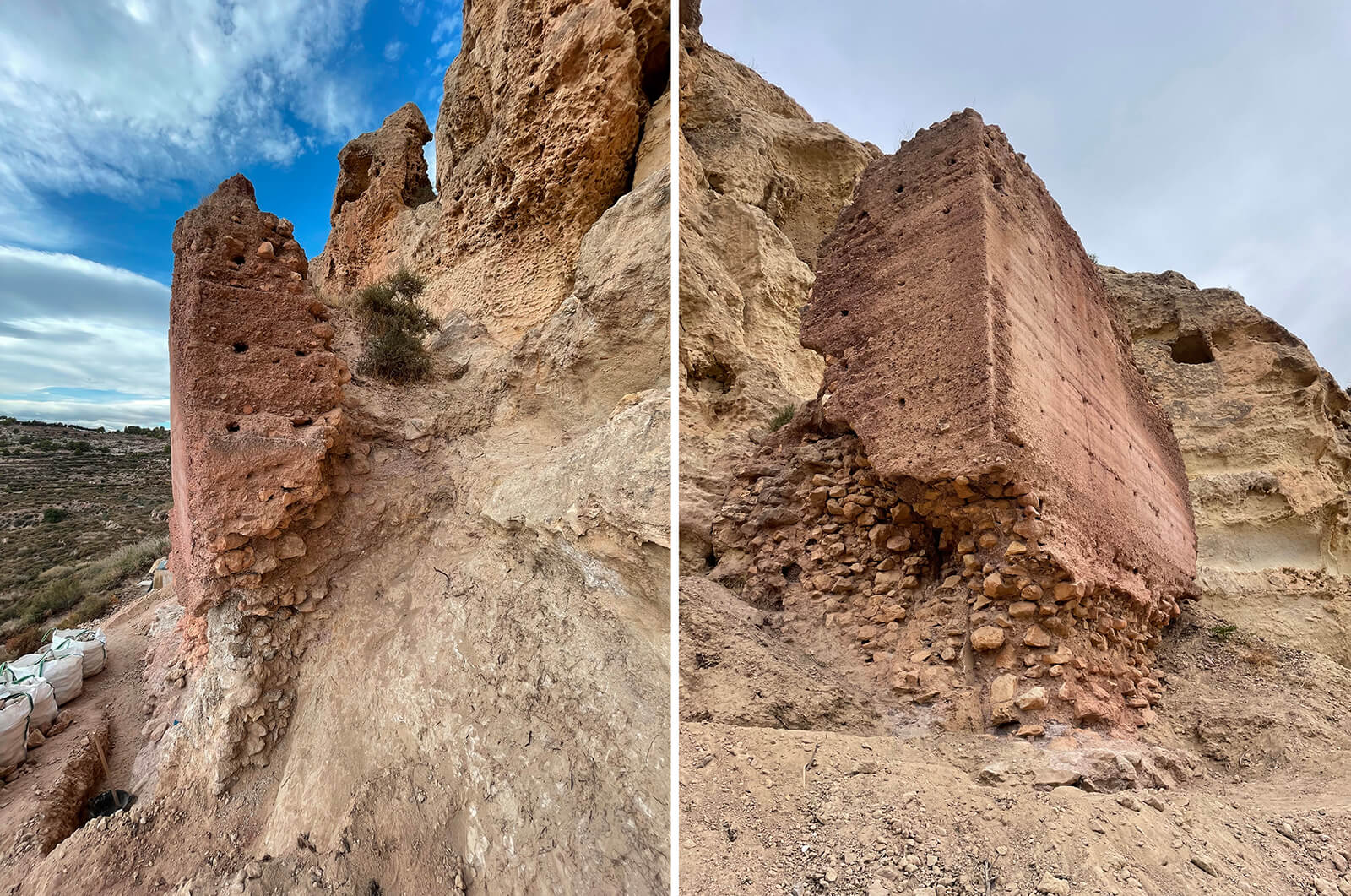

  • Close-up views of Torre del Agua before restoration  | Torre del Agua | HUMA Arquitectura | STIRworld
    Close-up views of Torre del Agua before restoration Image: Courtesy of HUMA Arquitectura

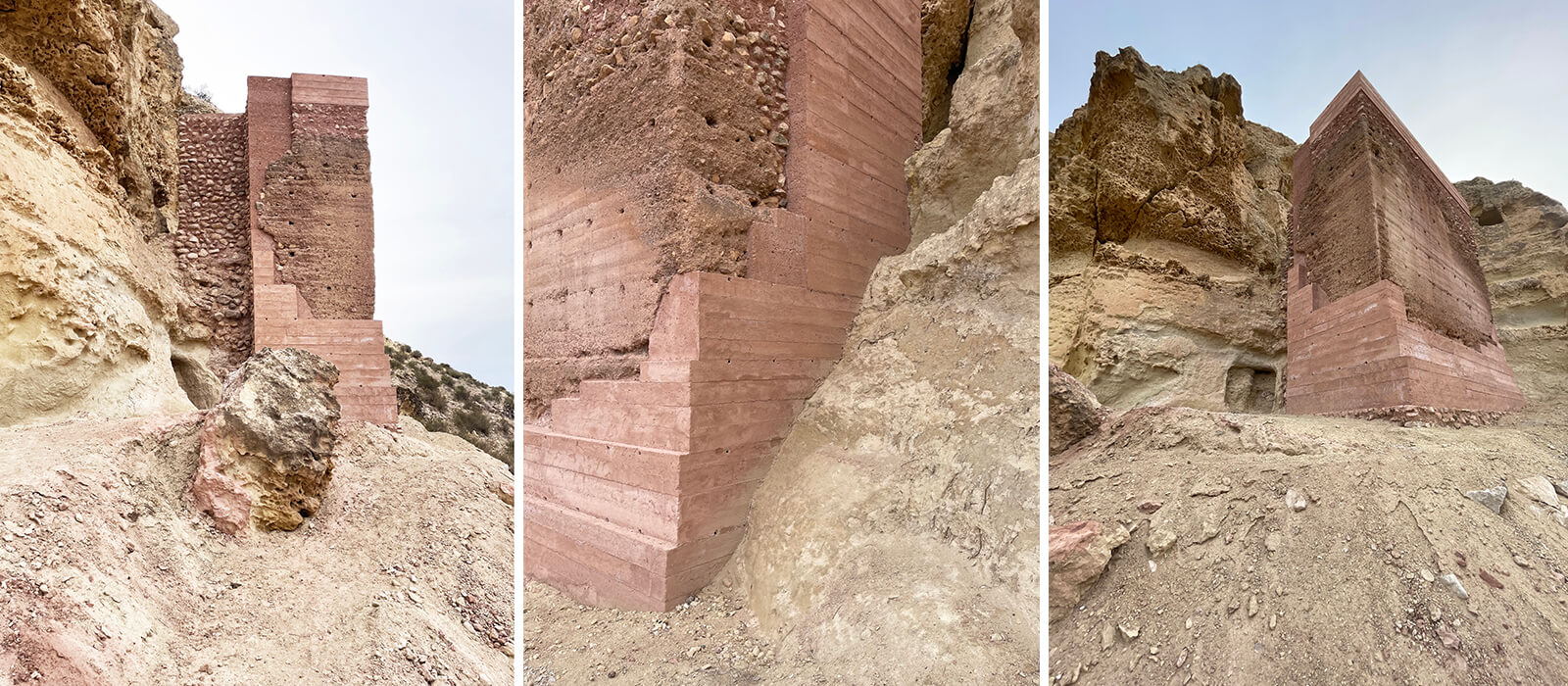

  • Close-up views of Torre del Agua after restoration  | Torre del Agua | HUMA Arquitectura | STIRworld
    Close-up views of Torre del Agua after restoration Image: Courtesy of HUMA Arquitectura

When asked about the condition of Torre del Agua before HUMA Arquitectura intervened, Martínez shares, “The original state before the intervention was extremely urgent, the water runoff had caused the collapse of the tower, which if there had not been intervention, would have occurred in a short space of time. Hence, the City Council urgently requested intervention to preserve the site in the following years and not lose part of its history.” HUMA Arquitectura utilised construction techniques similar to the original methods to restore the damaged structure. Using the same vernacular materials and building techniques, the architecture studio ensured the reproduction of the original way of construction and akin aesthetics.

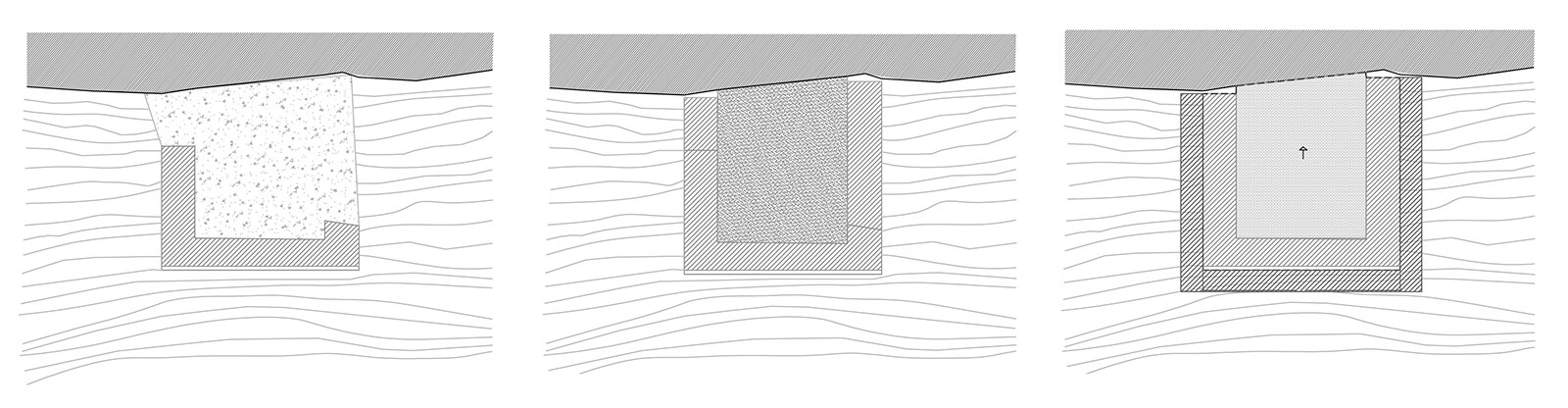

  • Diagram showcasing the foundation of Torre del Agua  | Torre del Agua | HUMA Arquitectura | STIRworld
    Diagram showcasing the foundation of Torre del Agua Image: Courtesy of HUMA Arquitectura

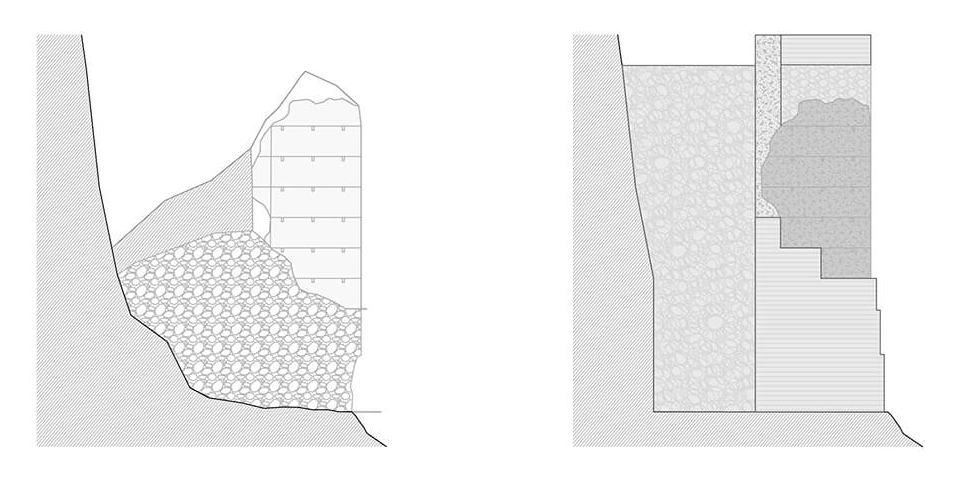

  • Diagrams showcasing the condition of the Water Tower before and after restoration  | Torre del Agua | HUMA Arquitectura | STIRworld
    Diagrams showcasing the condition of the Water Tower before and after restoration Image: Courtesy of HUMA Arquitectura

While the plinth of the Water Tower retains its claws on the stepped landscape via the masonry and mortar foundation, the recent interventions by HUMA Arquitectura are done using the calicastrated system, which includes the employment of a modular wooden formwork system injected with sand and lime mortar. This methodology, similar to the archaic construction technique, was used to shape the walls. “The holes in the walls correspond to the modulation of the boards used and the walls thus raised tied together by transverse pieces of wood that sew the inside and outside of the wall, leaving the hole on the outside once it is removed,” the studio shares. The new walls by HUMA Arquitectura are raised with a shallow setback from the original walls. The intermediary area and the plumbing lines running through them are shielded with geotextile. The process of setting the wall back from the original one is undertaken with an attitude of respect and reverence for the pre-existing monument.

In addition to restoring the Water Tower, the Spanish architects also cleaned out the surrounding area and reforested it with local plants such as thyme, rosemary, mastic and cistus, in an attempt to bring back the charm of the structure. This not only enhances the experience of this structure but also builds up anticipation for the much grander Villa de Aledo, which lies at the top of the hilly terrain.

  • Snail mill, located at some distance from the Water Tower  | Torre del Agua | HUMA Arquitectura | STIRworld
    Snail mill, located at some distance from the Water Tower Image: Courtesy of HUMA Arquitectura

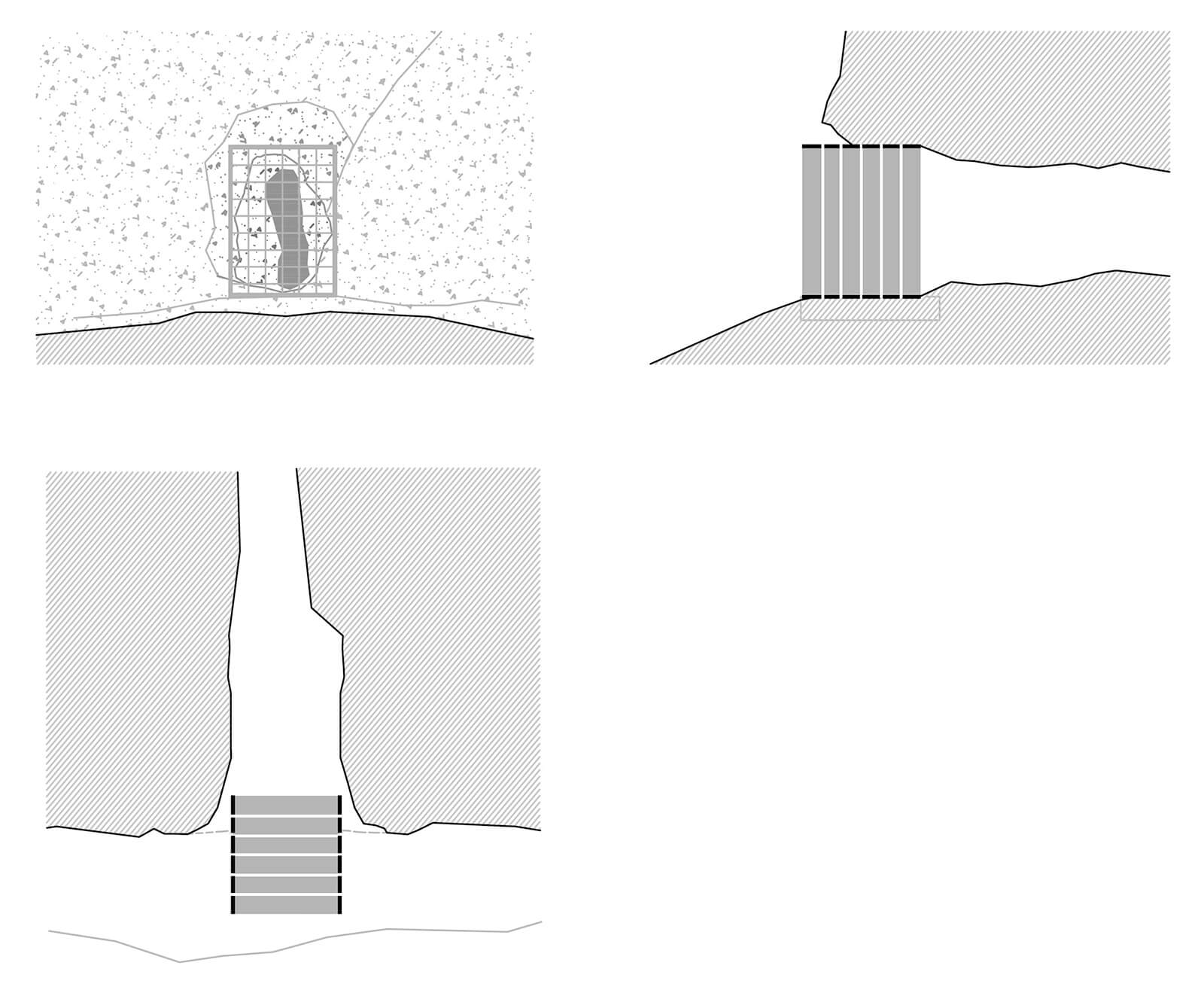

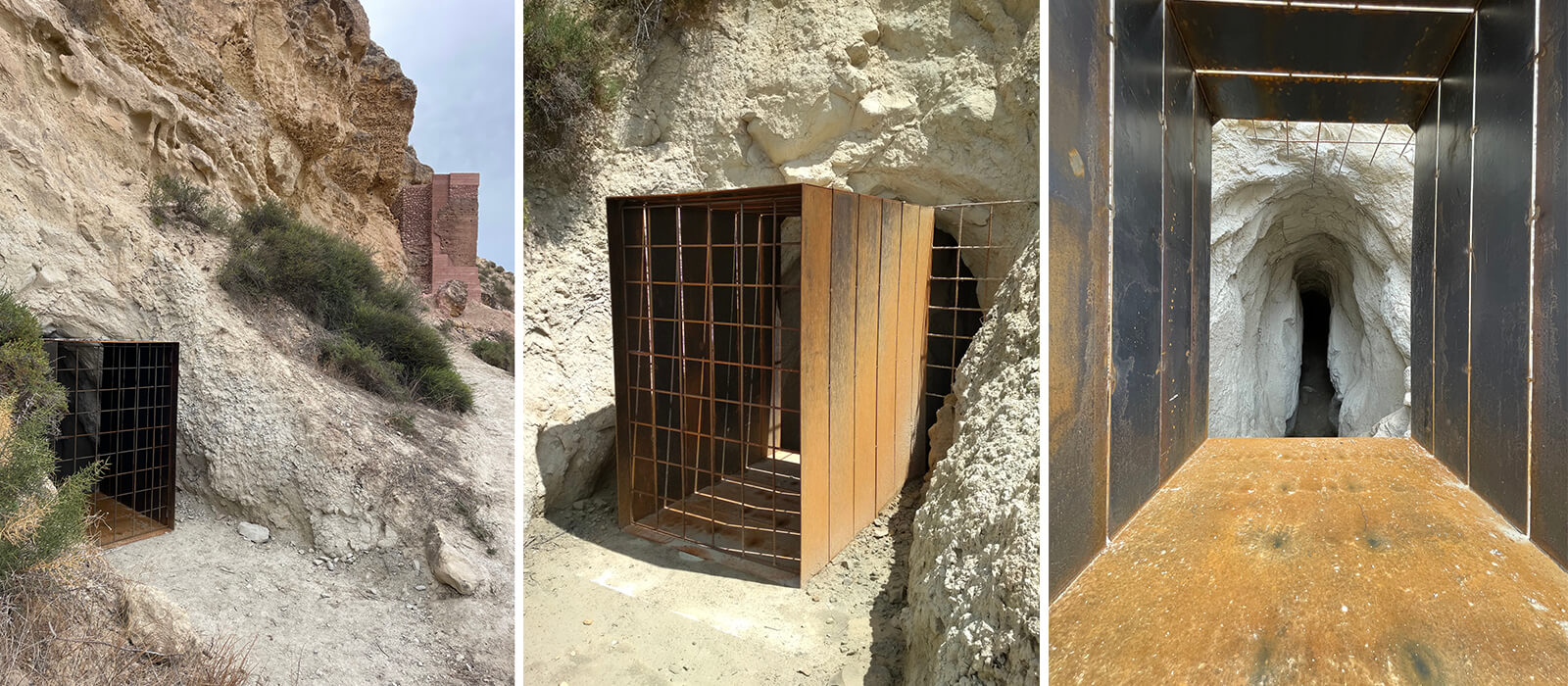

  • Details of the door that leads into the spring mine | Torre del Agua | HUMA Arquitectura | STIRworld
    Details of the door that leads into the spring mine Image: Courtesy of HUMA Arquitectura

The vicinity of the Water Tower also hosts a snail mine—a natural water spring mine on the mountain. A new horn-like door—accessible from an open road that runs to the top of the mountain—allows entry and control of this snail mine. While this subterranean passage remains well-ventilated via the door opening, the space has not yet been rendered visitable. Several points in the passage present the risk of collapse. However, this consternation also opens up the possibility of employing similar restoration efforts, to render the complete district a rich heritage zone, through restoration efforts.

When asked about the current usage of the structure, the architects share, “Currently, due to the advances made in the city, the provision of water is not necessary, so both the water mine and the tower are in disuse, they simply fulfil the romantic function of reminding its inhabitants that thanks to these elements, their ancestors were able to survive for centuries.”
