A humid subtropical climate defined by high temperatures, frequent rainfall, and occasional hurricane needs buildings that feature sustainable design, resilience, and efficient cooling systems. Houston, Texas is one such town. To address the challenging context it sits in, Brooklyn-based architectural studio Modu has designed a cutting-edge mixed-use office and retail centre, Promenade. This 15,000-square-foot facility integrates nature, innovation, and design to redefine the traditional concept of a commercial building. Focused on addressing the challenges posed by Houston's hot and humid climate, Promenade employs self-cooling walls, shading fins, and lush green spaces to create a harmonious environment that promotes well-being and sustainability.

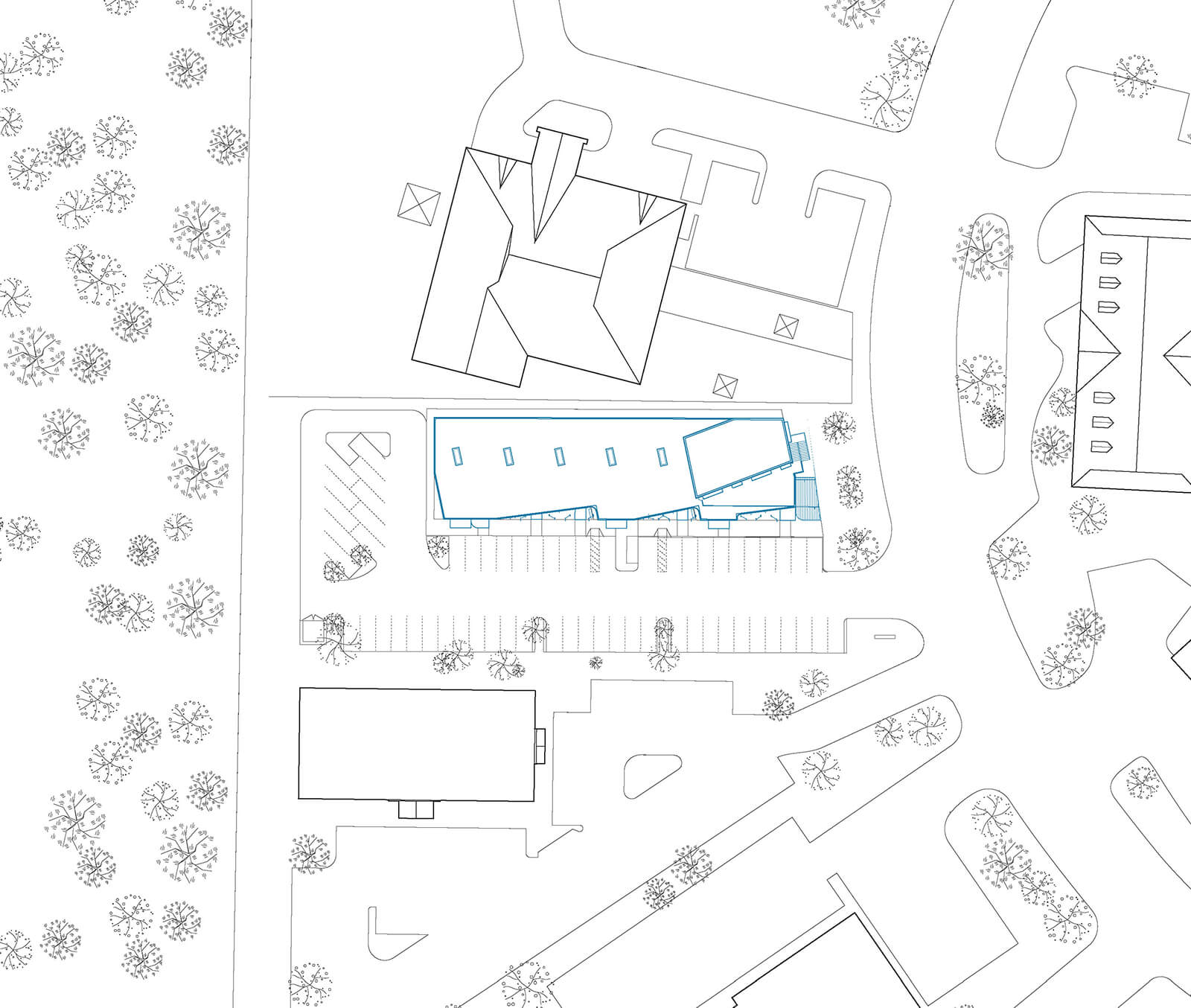

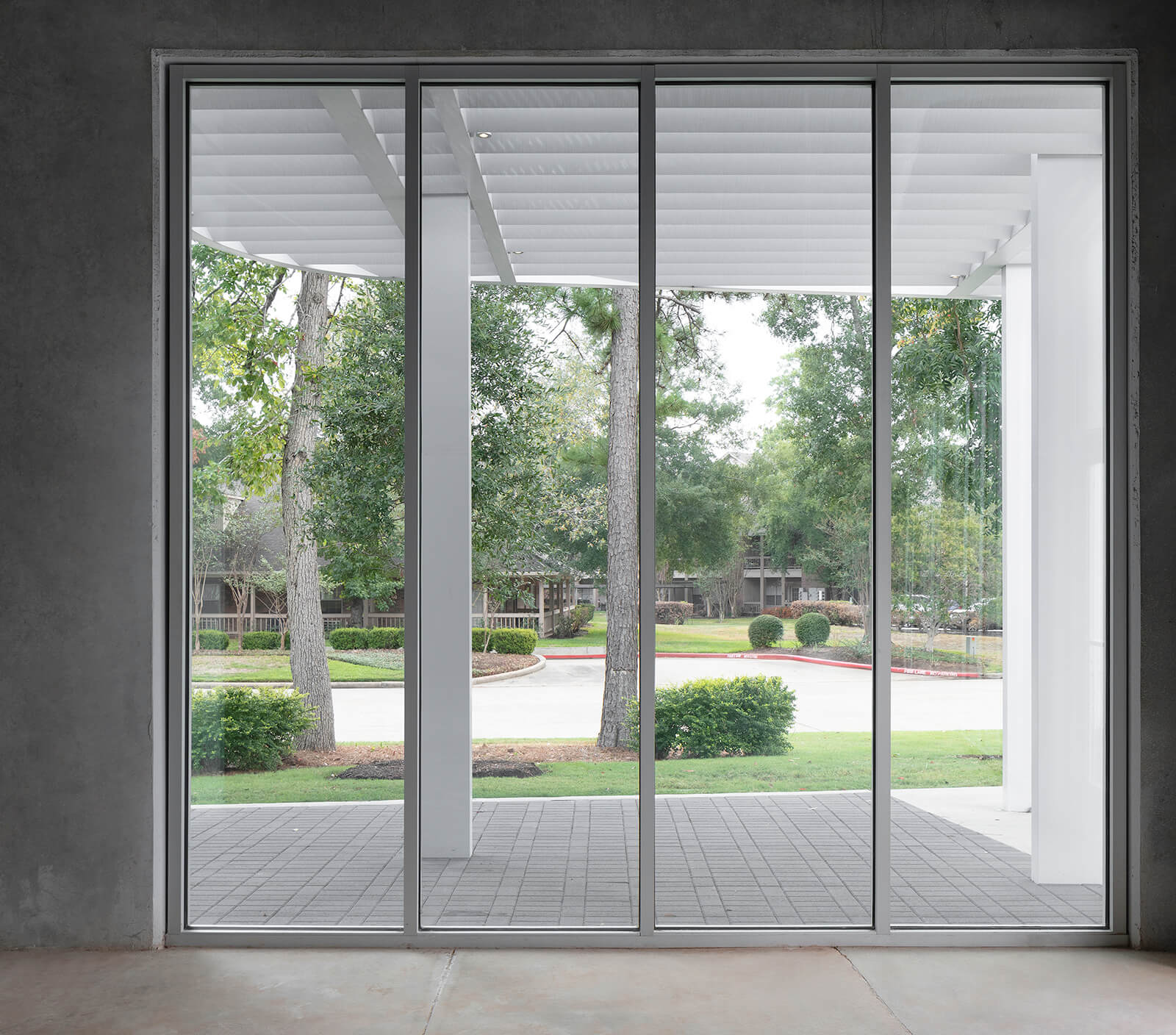

The overall design philosophy of Promenade revolves around blending indoor and outdoor spaces, offering an inviting atmosphere for both visitors and employees. The exterior spaces are strategically angled to the street to enhance visibility while also extending the indoor activities of work and retail to the outdoors. The second-story terrace and the building volume create a welcoming space for social gatherings, creating an atmosphere of connectivity among the occupants.

With scorching heat and frequent rain, Houston's climate poses a unique set of challenges. Modu combats these challenges head-on by using innovative technology and design solutions. Their design strategy is moulded to lower the ambient air temperature and reduce the reliance on air conditioning. One of the innovations employed by the studio is the self-cooling concrete walls. These are perhaps the most exciting features of Promenade's design. They are cast with patterns that dissipate solar heat more efficiently when exposed to wind.

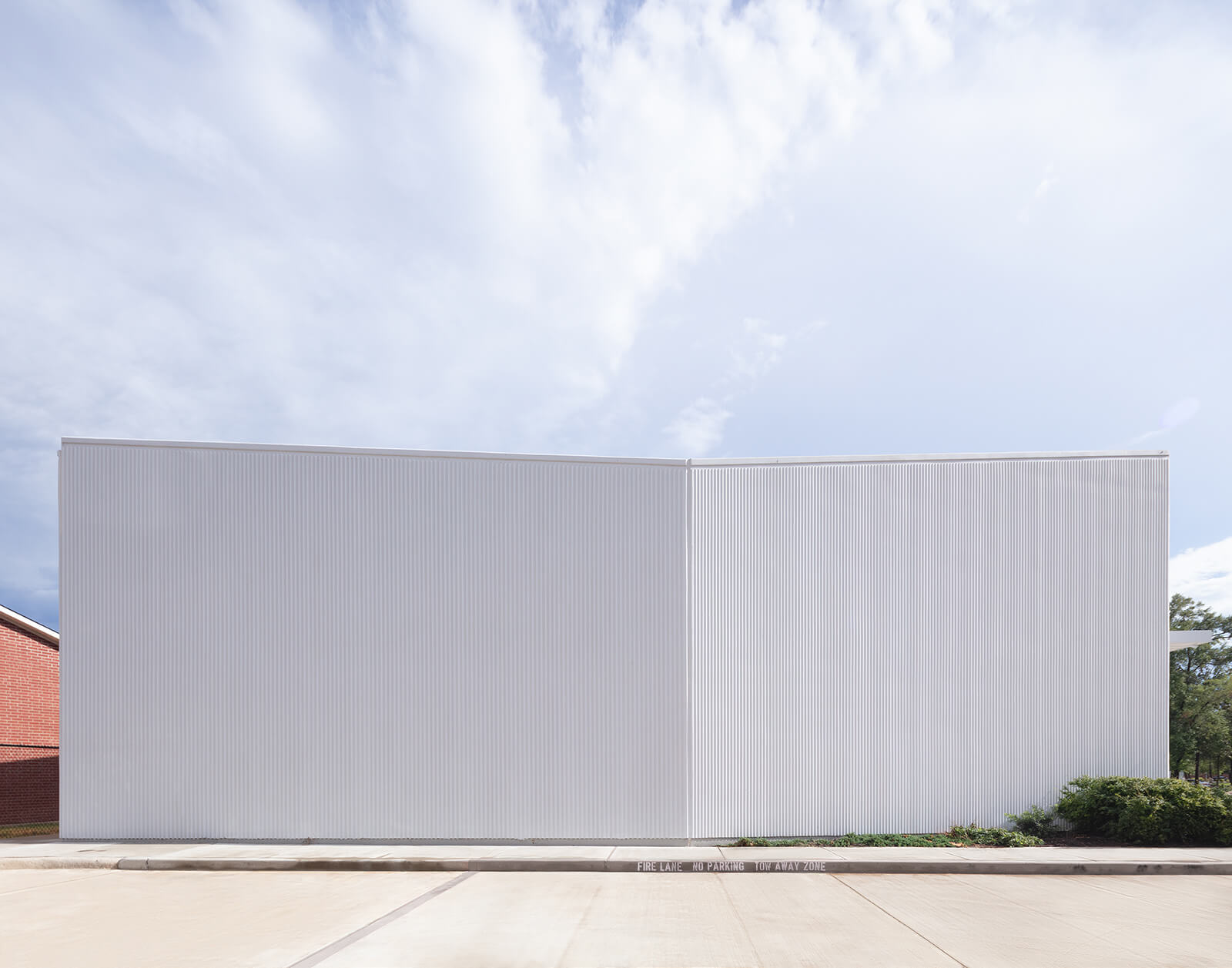

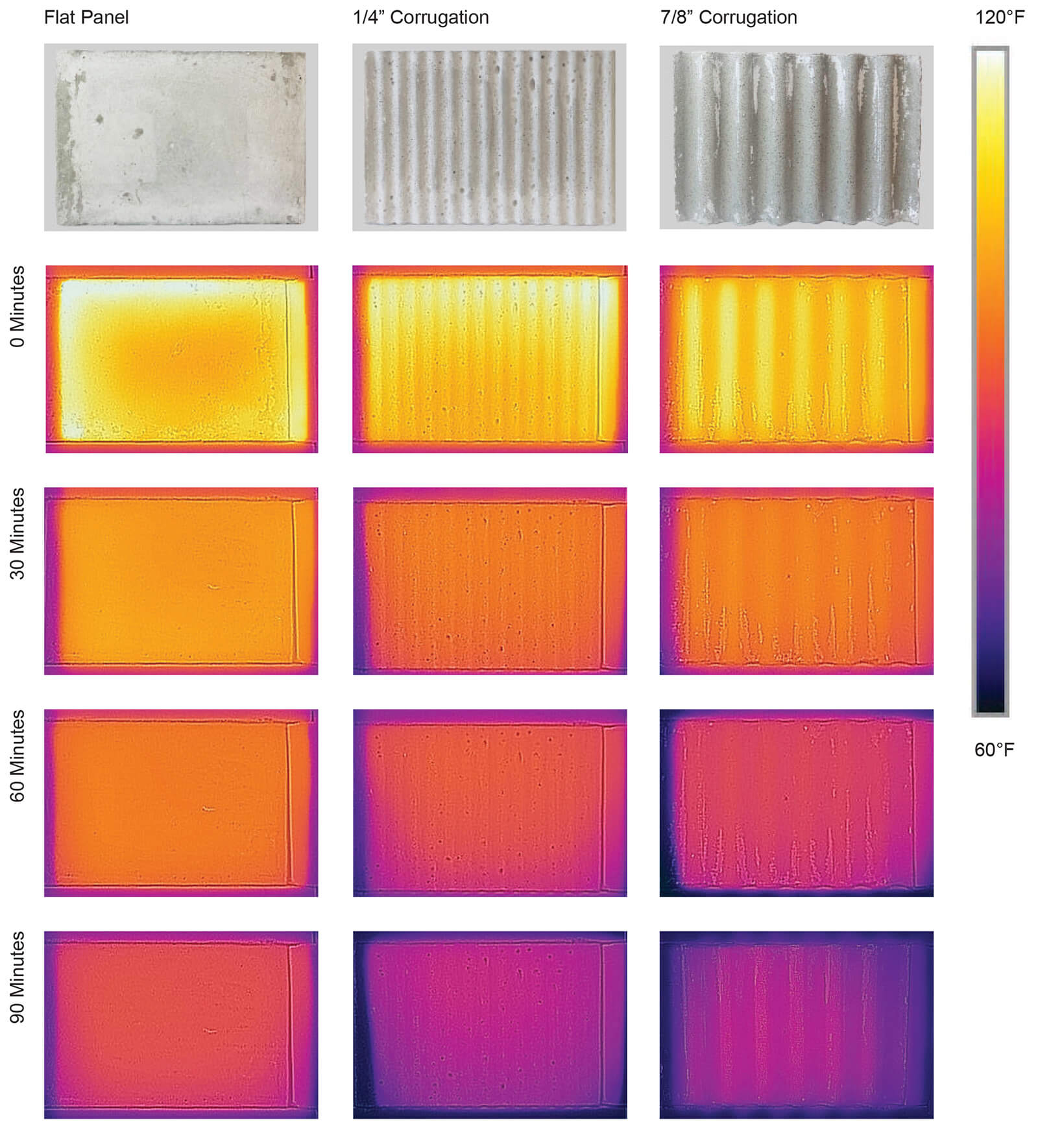

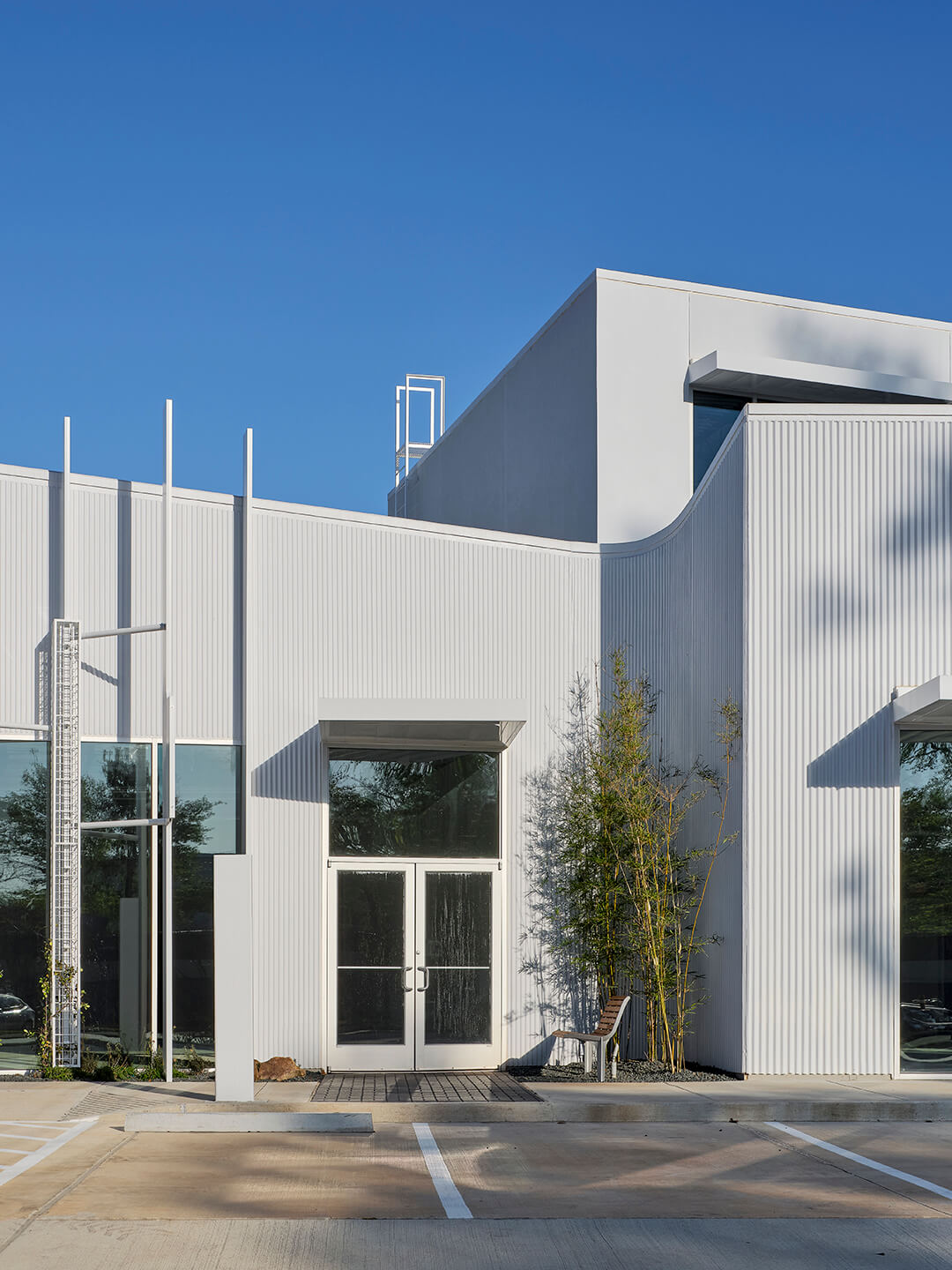

The innovative self-cooling walls are a result of a collaboration between Modu and Transsolar, providing a unique solution to combat the intense Texas heat. The white, corrugated surfaces of these walls reflect sunlight, while the cast patterns release solar heat. According to thermal photography tests, these patterns can reduce wall temperatures by up to 18 degrees Fahrenheit (7.7 Celsius), showcasing the effectiveness of the cooling strategy. The dynamic interaction of the patterns with wind ensures a rapid dissipation of heat, making it an economically efficient and sustainable cooling solution.

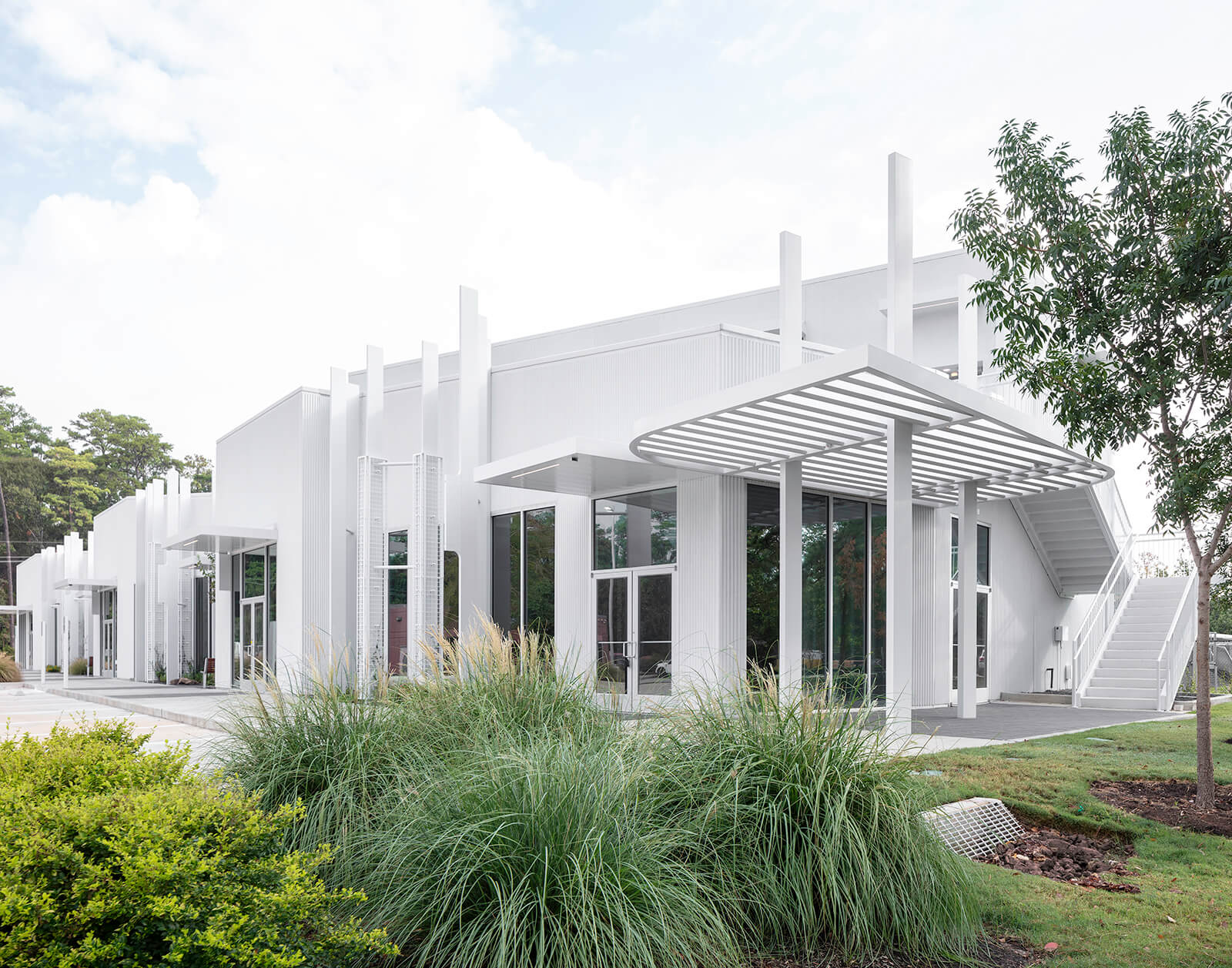

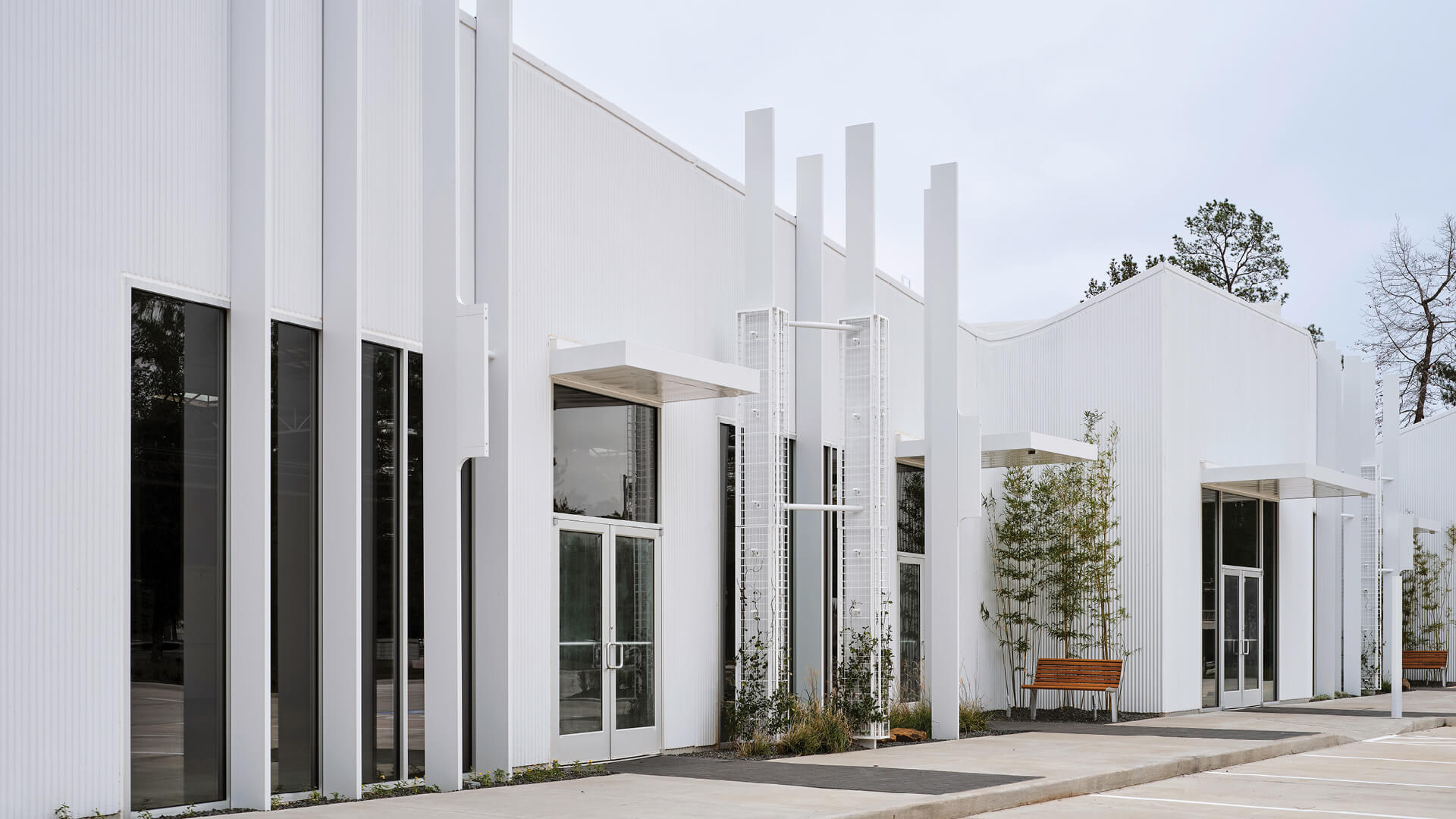

The exterior of the Promenade is fitted with tall aluminium shading fins, creating a visually striking architectural identity for the centre. These fins serve more than just their aesthetic purpose. They also act as cooling elements, contributing significantly to the overall reduction of solar heat gain. Some fins incorporate mesh material, offering support for climbing plants that contribute to additional microclimates, demonstrating a commitment to biodiversity and green architecture.

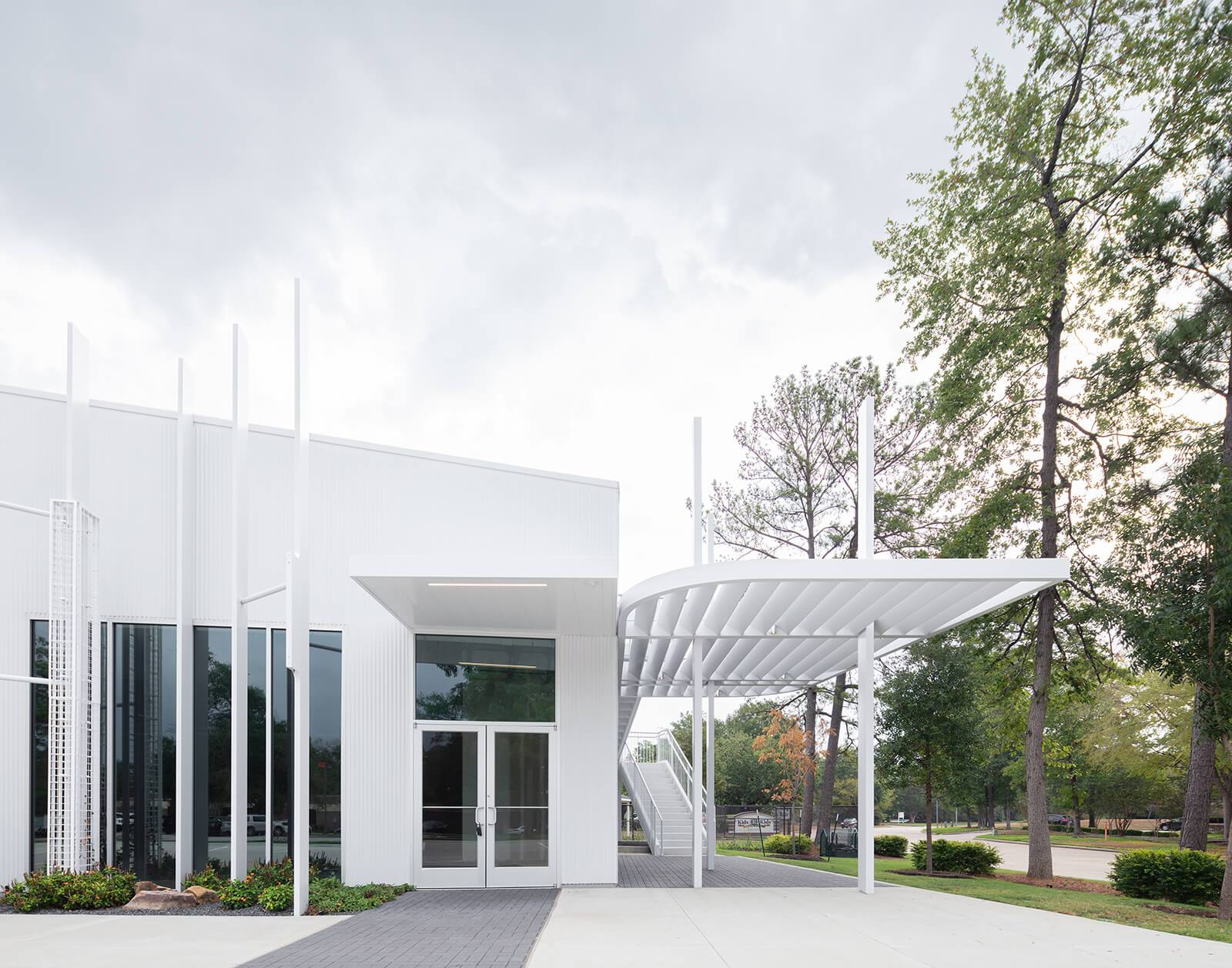

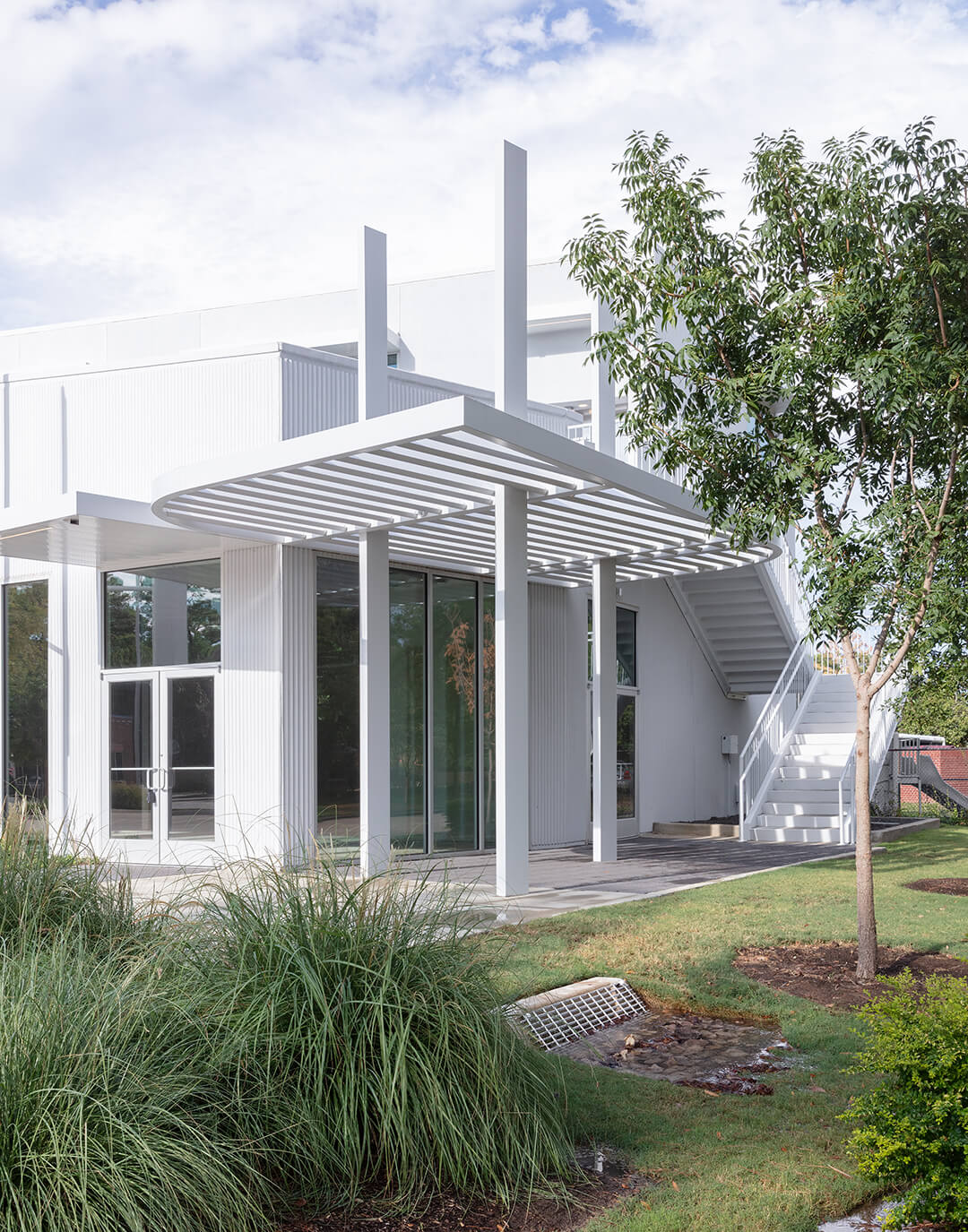

The trellises, strategically placed along the building's length, further the cooling effect by providing additional shade. The horizontal trellis at the building's end serves as a cooling element for an exterior passageway. This promotes outdoor thermal comfort and encourages occupants to spend more time in the green thresholds.

One of Promenade's standout features is the integration of lush gardens inspired by local ecologies. Modu has created a collection of spaces inspired by the Texan landscape. From a Texas rock garden to a tall grass garden, a pollinator garden, and even a desert garden, each space offers a multi-sensory experience for visitors. These gardens not only connect people to their surroundings but also contribute to the overall cooling strategy by providing shade, natural ventilation, and natural insulation.

With the world growing hotter each year, the need for cooling indoor spaces to maintain comfortable habitable environments has increased. However, employing mechanical cooling devices such as air conditioners is a band-aid approach that doesn’t fix the problem, but instead exacerbates it further. It has become essential to explore sustainable cooling solutions and innovative technology that addresses this global problem without worsening it.

Promenade is very clearly an example of one such attempt. It expertly showcases how thoughtful design can combat the challenges posed by extreme climates. It is a building that is deliberately sustainable for the environment, but it is also sustainable for its occupants. The integration of self-cooling walls, shading fins, and lush green spaces creates a holistic and inviting environment, fostering well-being and connectivity. Projects like Promenade serve as inspirations for future developments, proving that sustainability, comfort, and aesthetics can coexist harmoniously in the urban landscape.

Project Details

Name: Promenade
Location: Houston, Texas, U.S.A
Year of completion: 2023
Design Firm: Modu Architecture
