Winery in Châteauneuf-du-Pape by JSPA Design gets an earthy organic extension

The rammed earth construction by Beijing-based JSPA Design connects modern wine-making experience to the rich history of Châteauneuf-du-Pape using organic architecture.

by Akash SinghPublished on : Oct 07, 2023

Châteauneuf-du-Pape, the name of the wine that shares the same name as the region it is produced in—possesses a rich past and a tradition spanning centuries. The village's name translates to 'The Pope’s new castle', signalling its deep intertwining with papal history. The majestic bottles of the wine are adorned with papal keys. The wine-making process has its traditional roots, but modern techniques have started catching up. While the processes and systems have been evolving, the nature of associated identity persists. The rammed earth winery by JSPA Design is designed to be in the wine-making region of Châteauneuf-du-Pape, a village in Southeast France. The project brief aims at building a wine cellar, extending an existing winery, creating a shop, and developing new public event spaces.

Central patio of the winery | Rammed Earth Winery | JSPA Design | STIRworld
Central patio of the winery Image: Courtesy of JSPA Design

The village of Châteauneuf-du-Pape is about three kilometres to the east of Rhône and 12 kilometres north of the town of Avignon. The wine is an Appellation d'origine contrôlée (AOC) located around the village. It is one of the most renowned appellations of the southern part of the Rhône Valley. In 1309, Pope Clement V relocated the papacy from Rome to the town of Avignon. The significance of wine in Christianity and the relocation of the papacy to this region significantly boosted the growth of Viticulture in the region.

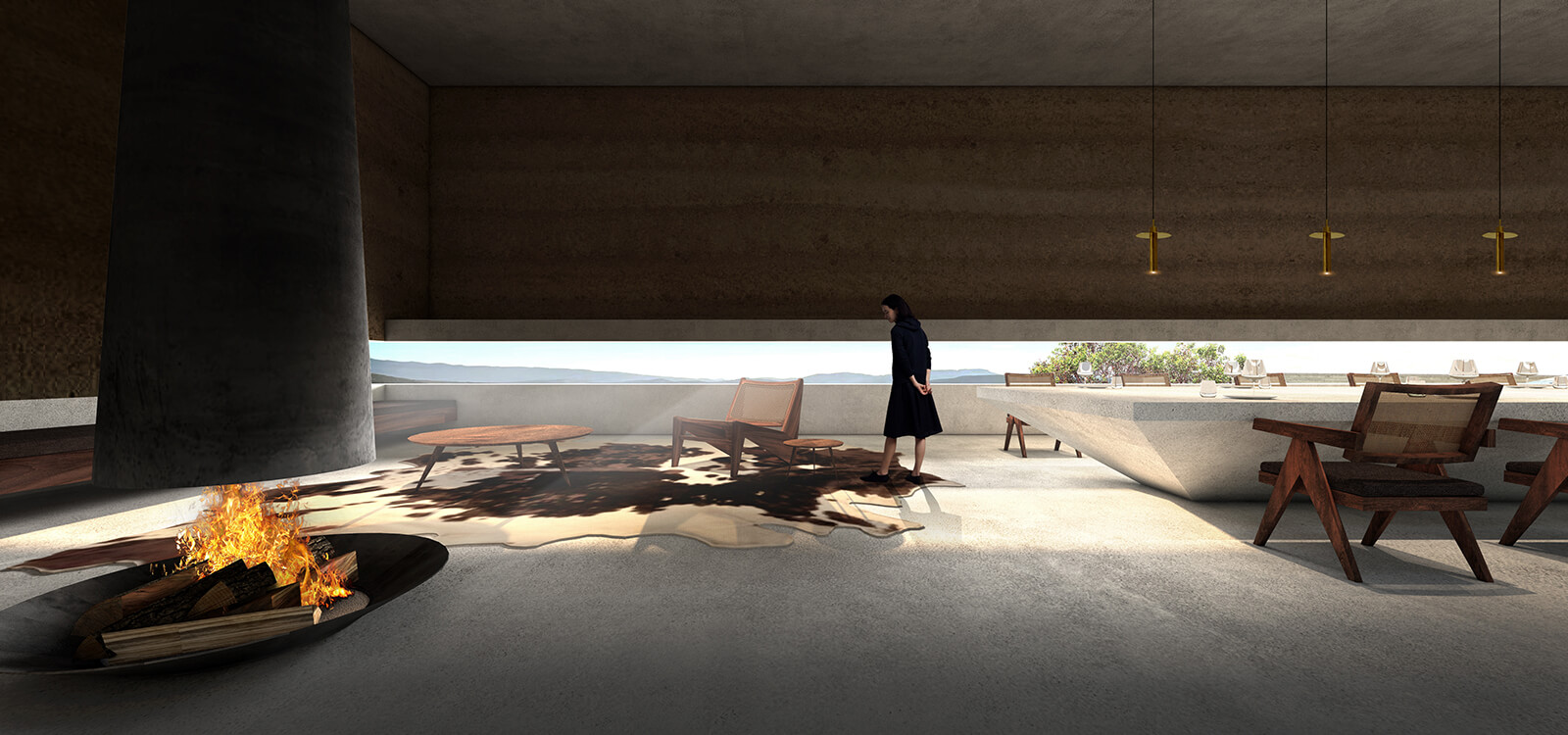

  • The Event Space consists of a breakout area, dotted with a contemporary fireplace | Rammed Earth Winery | JSPA Design | STIRworld
    The event space consists of a breakout area, dotted with a contemporary fireplace Image: Courtesy of JSPA Design
  • The event space has windows to let in natural light and glimpses of the outside | Rammed Earth Winery | JSPA Design | STIRworld
    The event space has windows to let in natural light and glimpses of the outside Image: Courtesy of JSPA Design

With the responsibility to be authentic to the region's history and also be a contemporary design that stands out on its own, the rammed earth construction of the building, along with its modernist form establishes a distinctive identity. A visual characteristic of rammed earth, meandering horizontal waves adorn the structure’s surface, grounding the modern form and integrating it seamlessly into the landscape. While visually striking as a consequence of contrast from its architectural context, it borrows in materiality and language from the predominantly agricultural culture of the region, reinforcing the feeling of connection with the site. The thermal and acoustic insulation properties of the building allow it to be more sustainable and functionally efficient. "The design process was guided by the idea of producing a clear reading between the existing architecture and the new extension while creating a coherent whole in terms of scale and architectural form and typology,” explains Johan Sarvan, founder of Beijing-based JSPA Design.

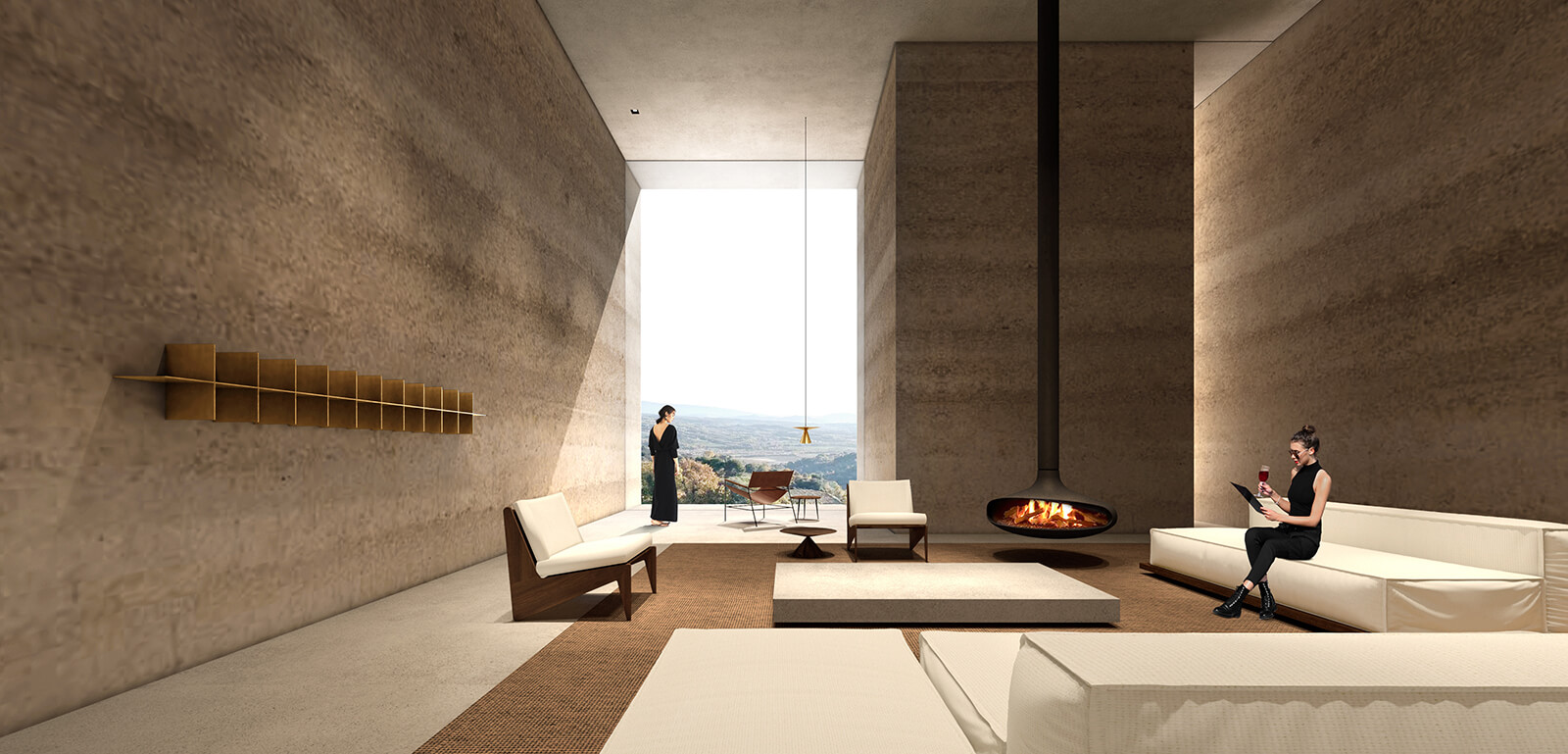

The private tasting space is the highest place in the structure, providing an expansive view of the vineyards | Rammed Earth Winery | JSPA Design | STIRworld
The private tasting space is the highest place in the structure, providing an expansive view of the vineyards Image: Courtesy of JSPA Design

All the functions—the wine cellar, extended winery, shop, and event space—are dissected into four distinct volumes that revolve around a central patio. The project was designed to blend into the context in terms of scale, and hence the fragmentation allowed the building to be unimposing, integrating the architecture into the village. While the project is an extension of the existing infrastructure, It is connected only through an underground link, which juxtaposes the new and the existing without a visible connection.

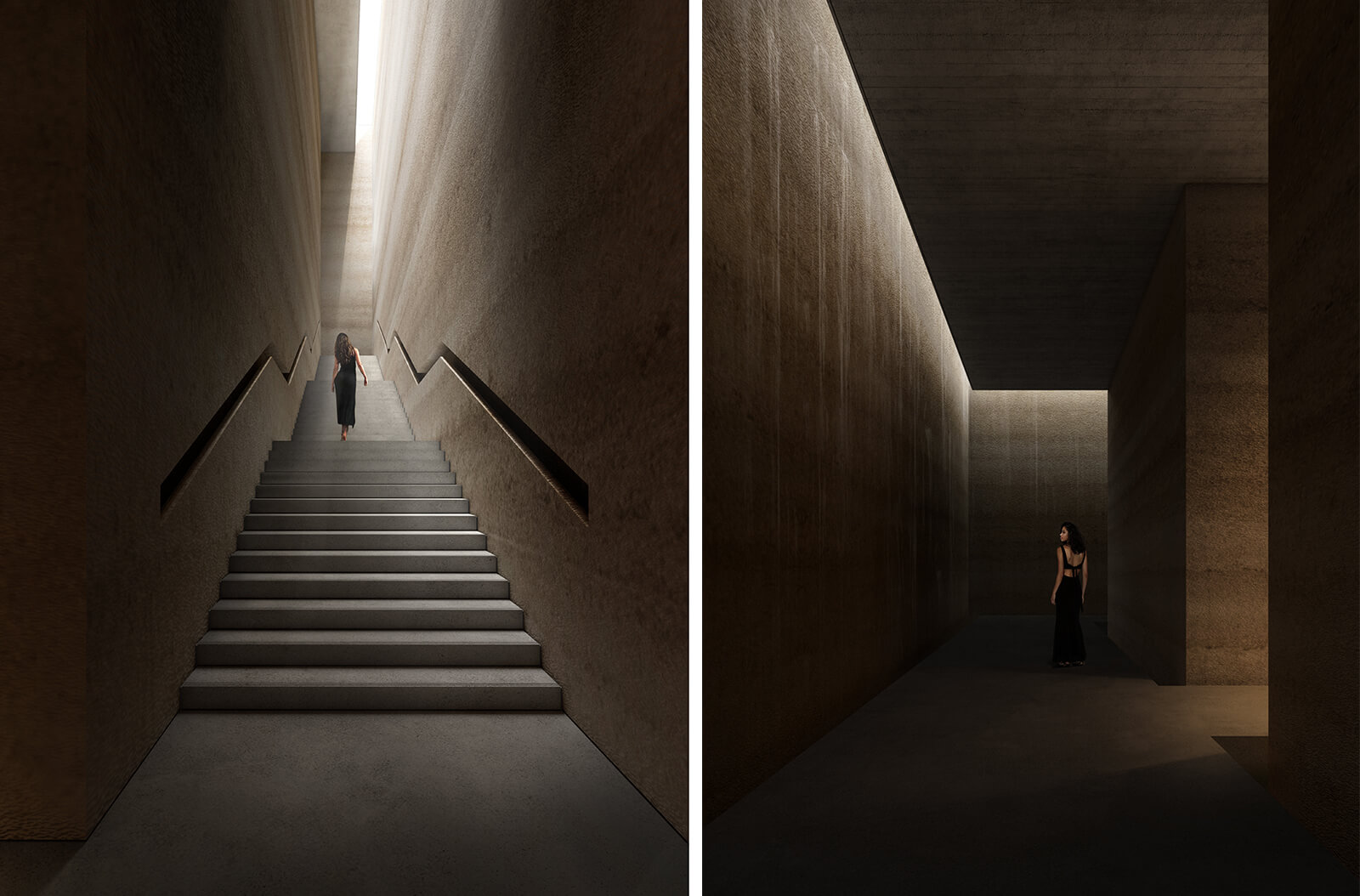

(L) The space is lit through indirect sunlight; (R) The wine cellars are illuminated by natural light through tiny slits in the slab | Rammed Earth Winery | JSPA Design | STIRworld
(L) The space is lit through indirect sunlight; (R) The wine cellars are illuminated by natural light through tiny slits in the slab Image: Courtesy of JSPA Design

One of the primary drivers of the project is its water circulation. The green roofs of the cantilever structures absorb the rainwater, directing it to the central patio pool where it is collected. The narrow slits at the contours of the patio allow excess water to drain into the underground wine cellar, reaching the lower level where it is collected in a cistern for future use. Through natural evaporation, the water tank provides the level of humidity required for proper conservation of the wine throughout the year. The thermal conditions of the space are crucial for the project since it also consists of a wine cellar, which requires careful temperature and humidity control. The cellar is located underground to benefit from the consistent temperature, and the insulative nature of rammed earth plays a crucial role in the function.

  • Sectional diagram illustrating the elements of the project | Rammed Earth Winery | JSPA Design | STIRworld
    Sectional diagram illustrating the elements of the project Image: Courtesy of JSPA Design
  • Physical model of the Rammed Earth Winery | Rammed Earth Winery | JSPA Design | STIRworld
    Physical model of the Rammed Earth Winery Image: Courtesy of JSPA Design

The experiential quality of the project is elevated in the way it plays with light and shadow. The natural textures of the project become a canvas for the elements to take centre stage. Natural light delicately filters into the cellar through the fine openings in the slabs, generating a sequence of light and shadow that evoke a sense of depth and mystery. “When visitors step into the cellar, they are transported into a world of sensory experiences, where the sights, sounds, and aromas of winemaking combine to create an immersive experience,” says Florent Buis, partner at JSPA Design, while explaining the intended experience for the visitor through the architecture of the Rammed Earth Winery at Châteauneuf-du-Pape. The architectural materials are a defining feature of the project and elevate the contemporary architectural experience without becoming urban in its appeal. The organic vocabulary of the architecture also appears to provide a direction to imagine the future of modern rural architecture—one that is not a watered-down version of its urban counterpart but holds onto its authenticity.

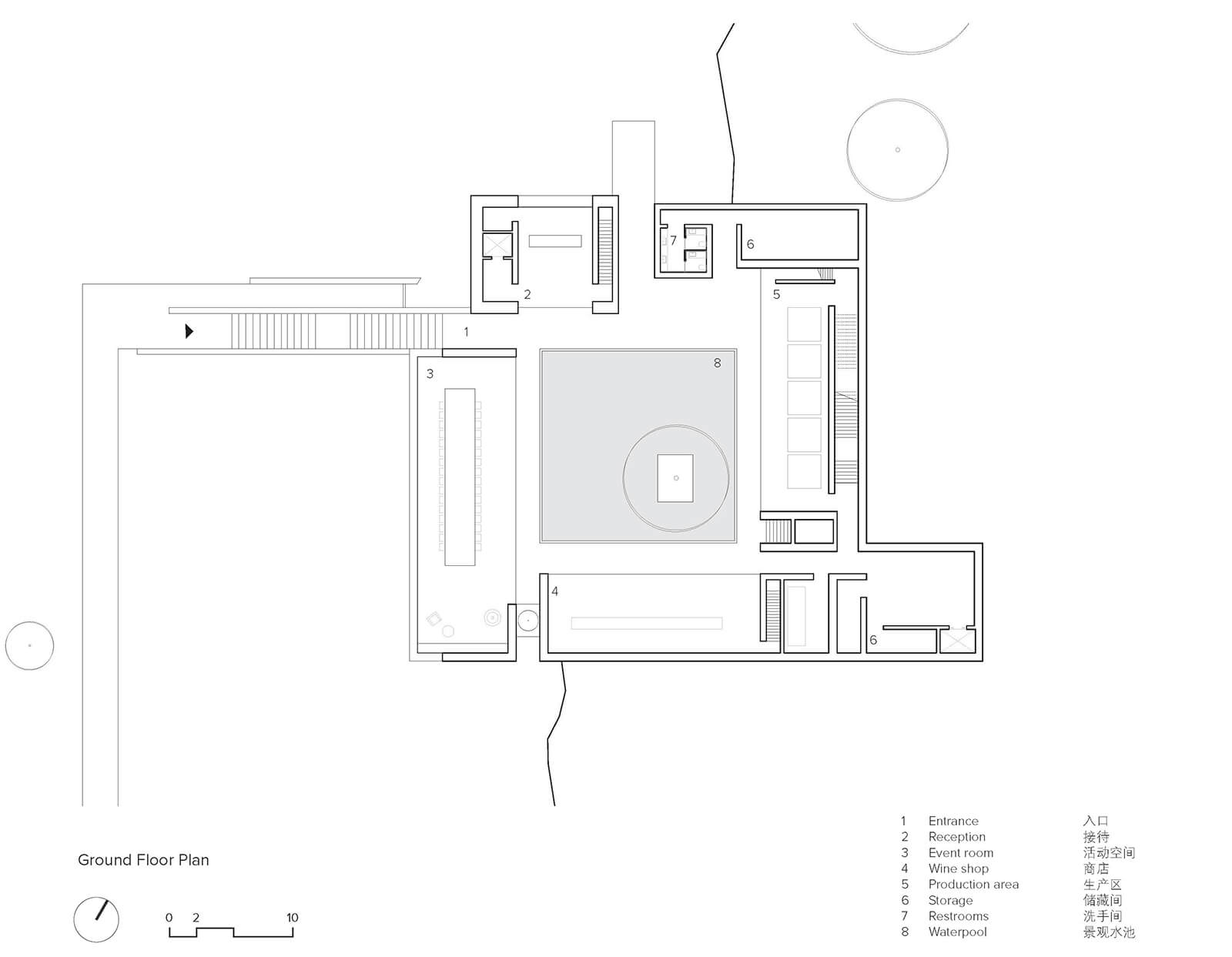

  • Ground floor plan | Rammed Earth Winery | JSPA Design | STIRworld
    Ground floor plan Image: Courtesy of JSPA Design

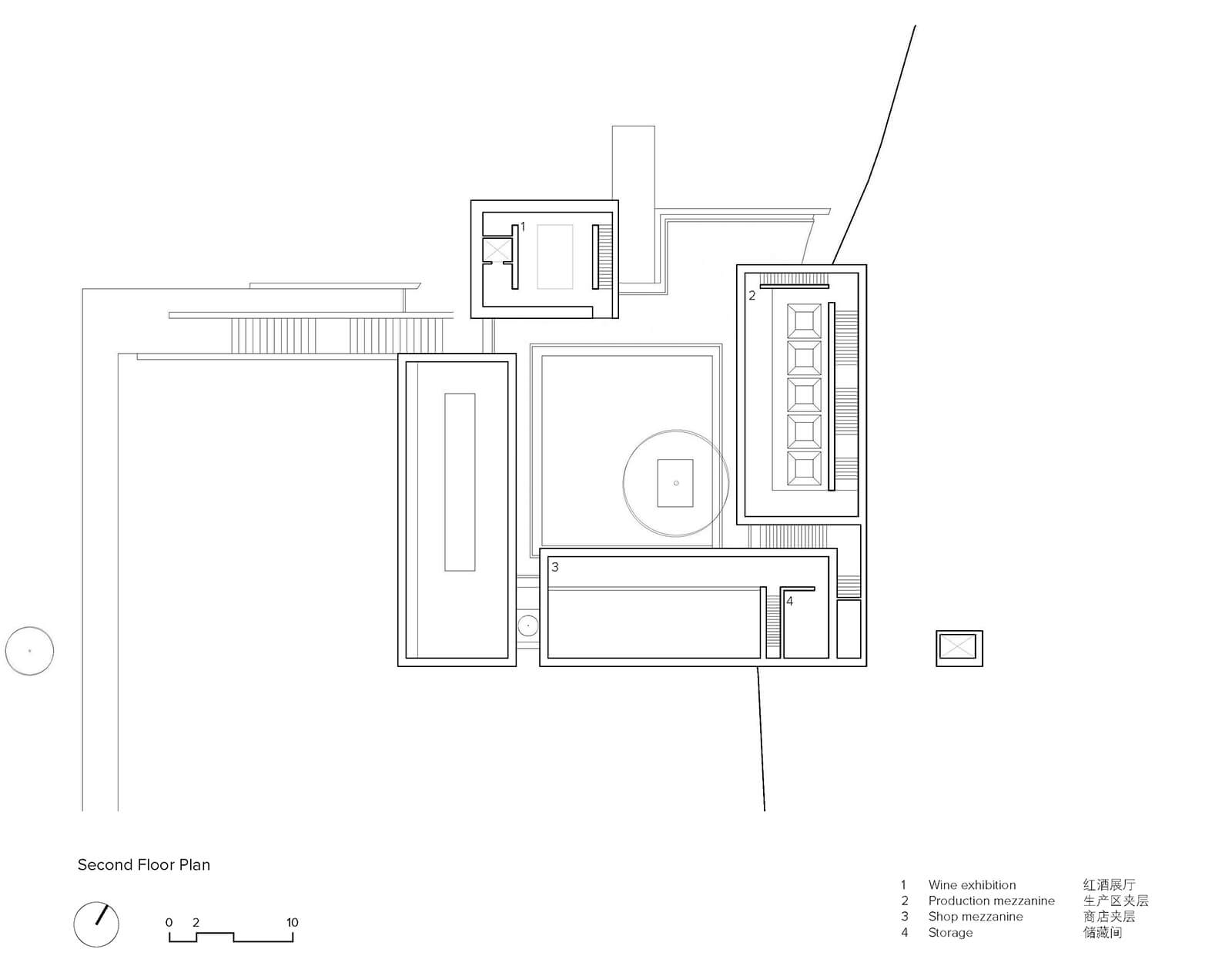

  • Second floor plan | Rammed Earth Winery | JSPA Design | STIRworld
    Second floor plan Image: Courtesy of JSPA Design

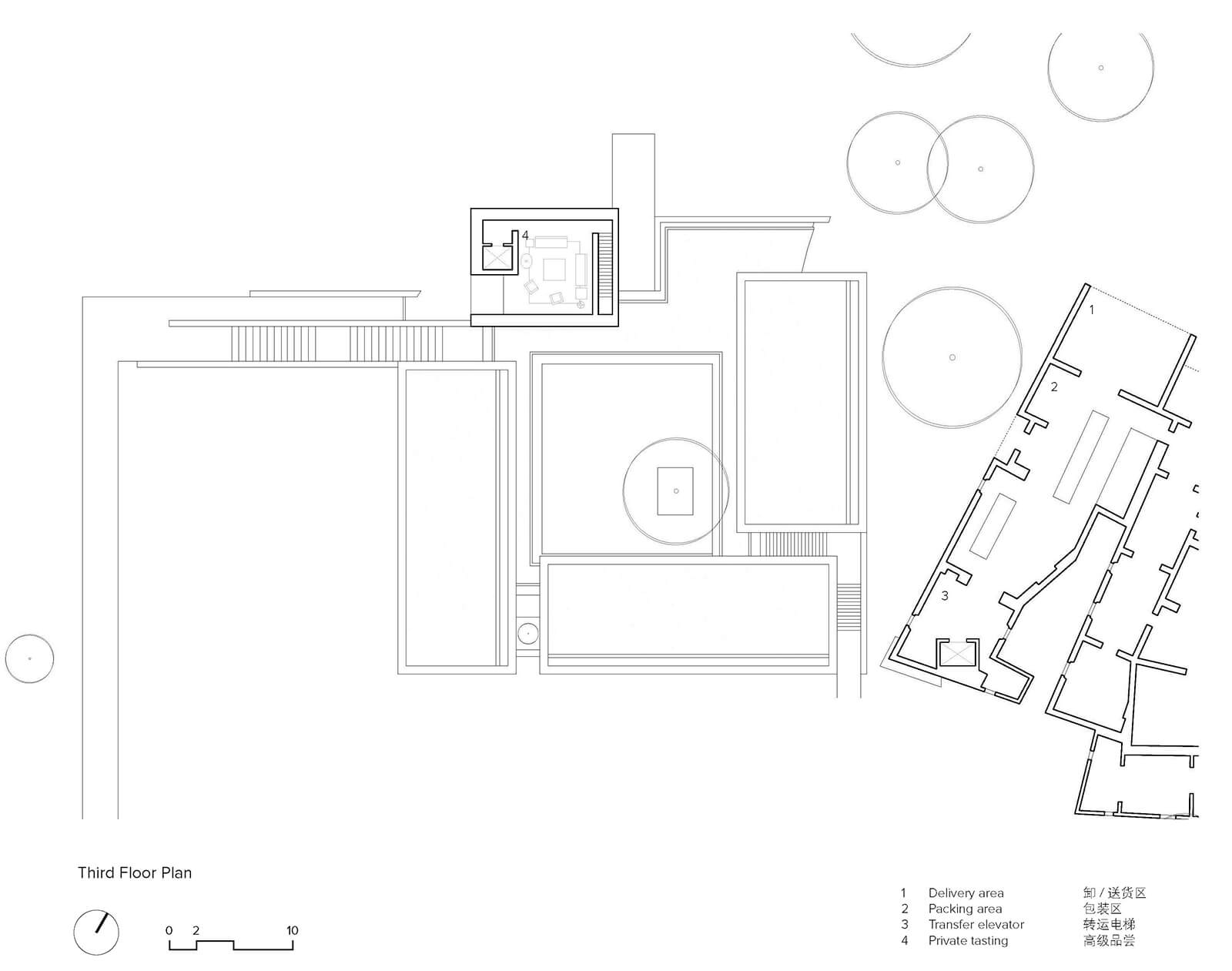

  • Third floor plan | Rammed Earth Winery | JSPA Design | STIRworld
    Third floor plan Image: Courtesy of JSPA Design

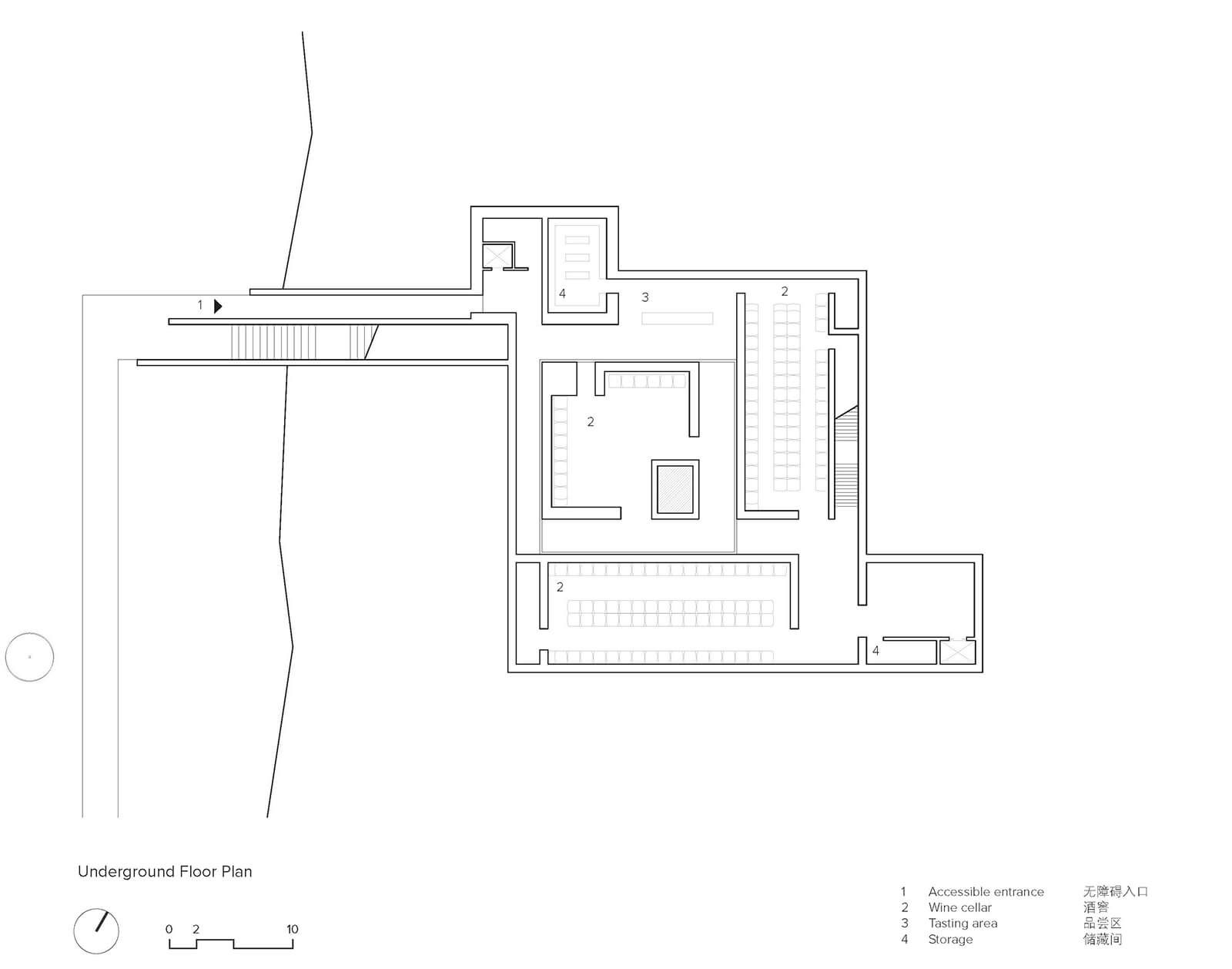

  • Underground floor plan | Rammed Earth Winery | JSPA Design | STIRworld
    Underground floor plan Image: Courtesy of JSPA Design

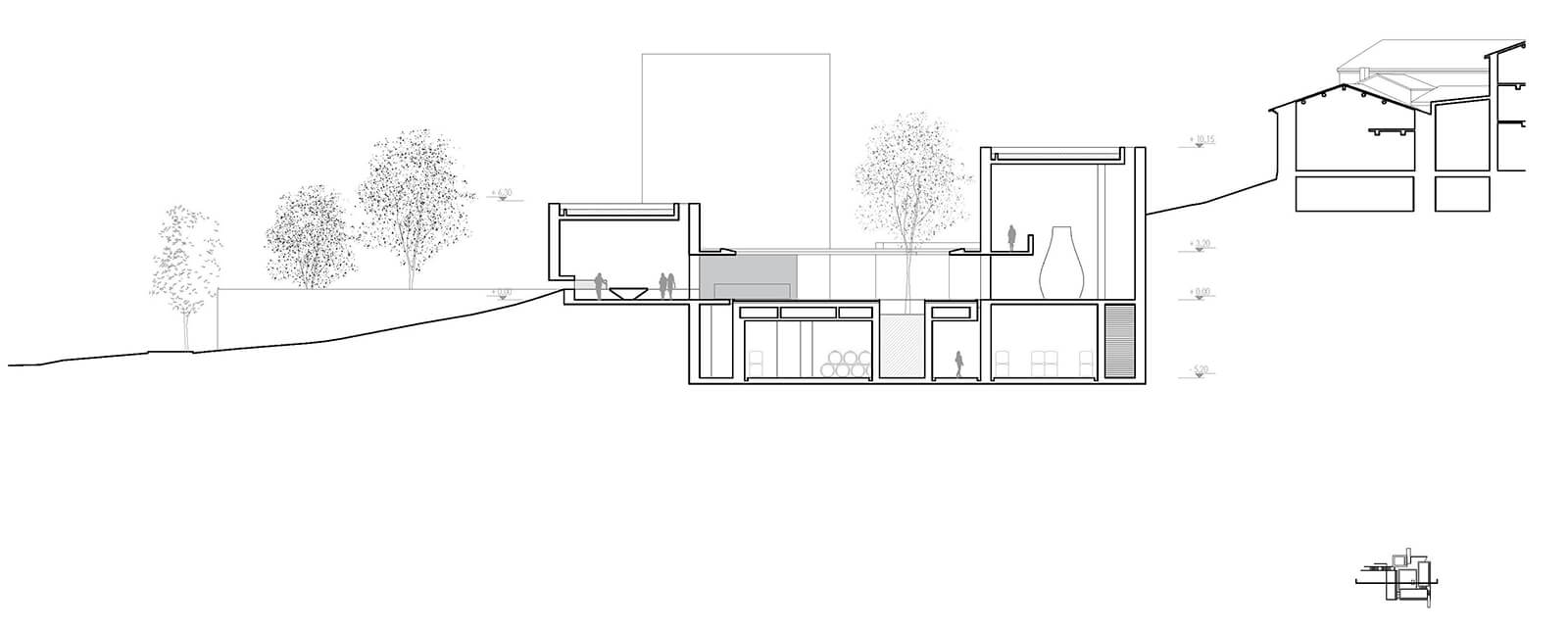

  • Section 1 | Rammed Earth Winery | JSPA Design | STIRworld
    Section Image: Courtesy of JSPA Design

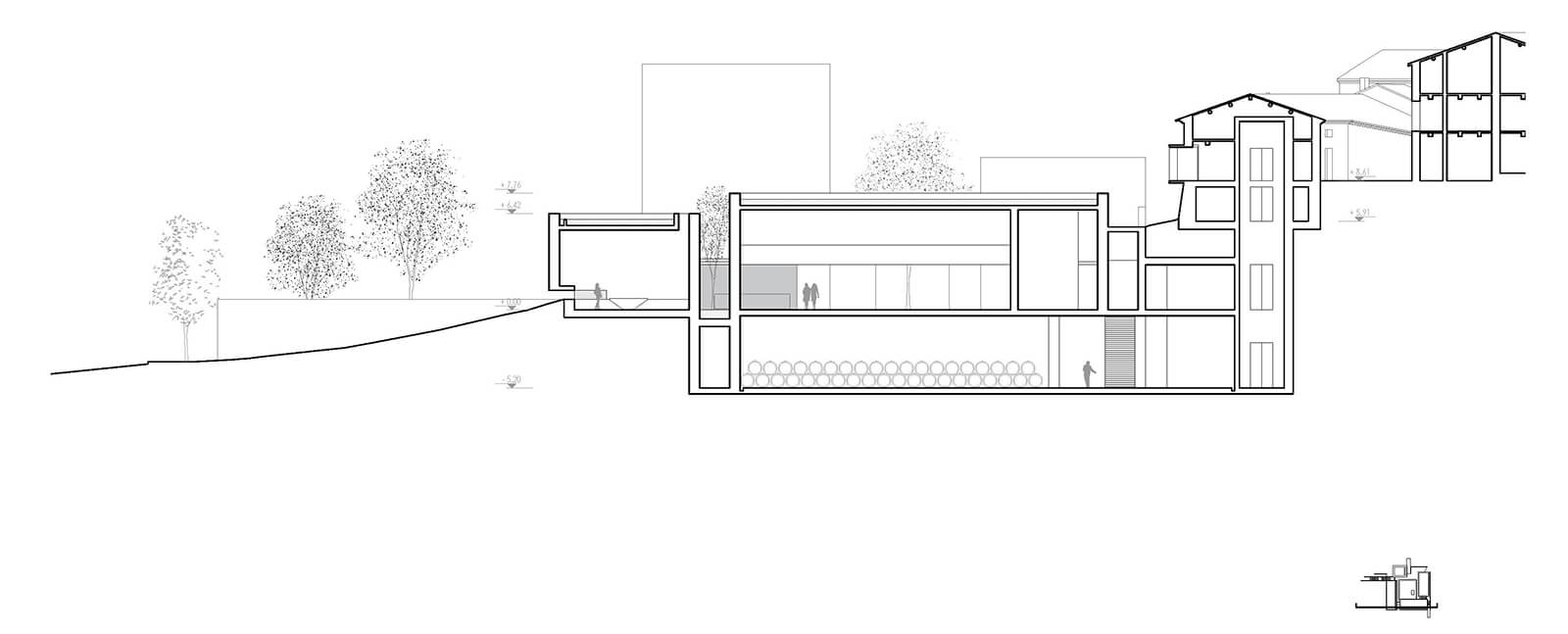

  • Section 2  | Rammed Earth Winery | JSPA Design | STIRworld
    Section 2 Image: Courtesy of JSPA Design

Project Details

Name: Rammed Earth Winery
Location: Châteauneuf-du-Pape, France
Area: 3400 sqm
Construction date: Beginning 2024
Architect: JSPA Design
Landscape architecture: JSPA Design
