A look at Arti Studio's contextual and adaptive reuse of an existing structure

The hospitality design of the Merlot Pods facilitates public-private engagement through the addition of an intermediary outdoor space between the street and the shop, in Indonesia.

by Dhwani ShanghviPublished on : Oct 24, 2023

The Merlot Pods, designed by Raynaldo Theodore and Natasha Astari of Arti Design Studio, accommodate Itsumo, a dessert shop originating in Batam, Indonesia. Located in Canggu, a coastal village on the south coast of Bali, the shop is one in a row along both sides of the primary street, Jalan Batu Bolong, culminating at the Batu Bolong Beach. The residential turned commercial neighbourhood of Canggu, previously a surfer town, is now also home to a recently created strain of impermanent residents or the digital nomad. The shops, restaurants, cafes, and bars along the street therefore not only draw a multitude of people in search of food or local stores but also serve the tourists and surfers approaching the beach and using the street as a thoroughfare.

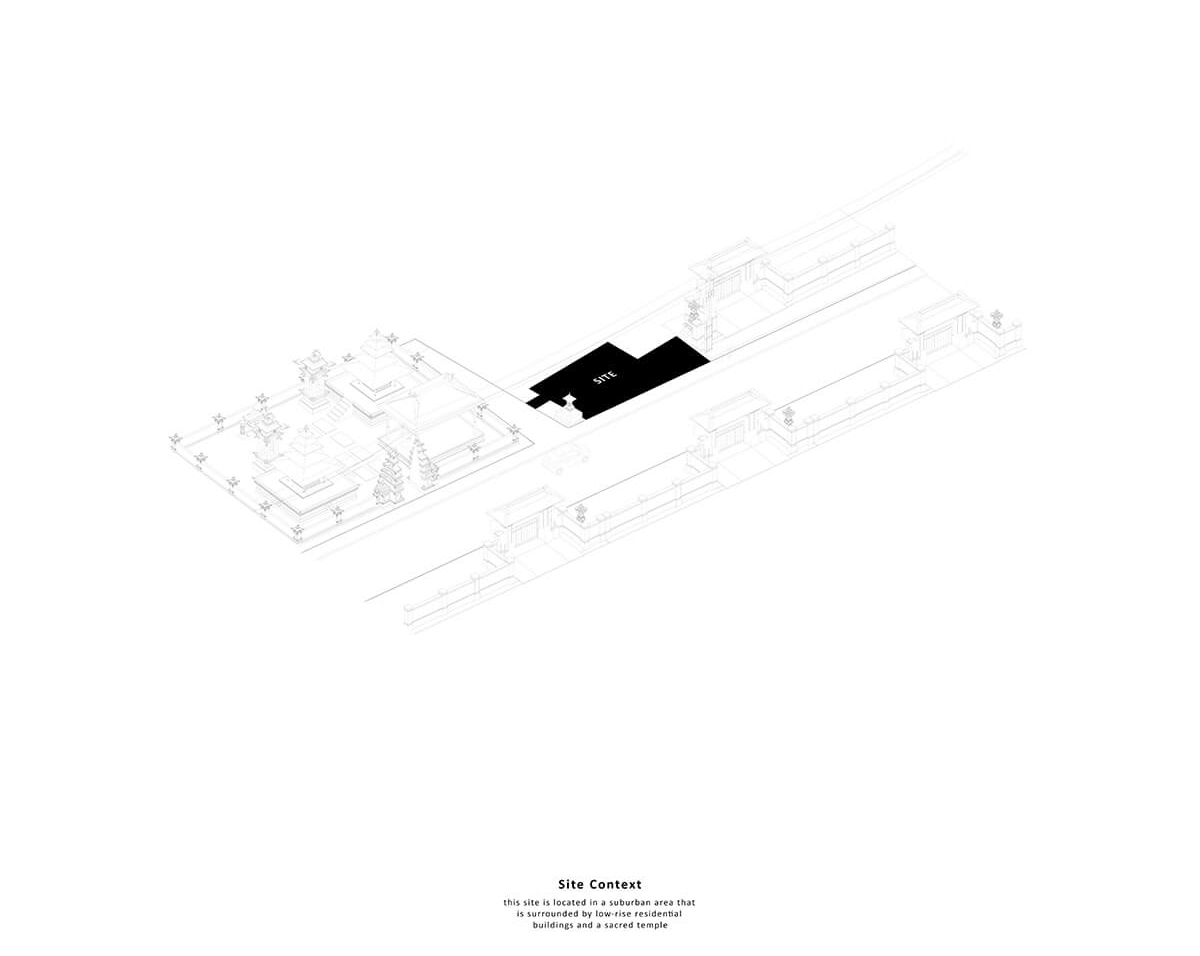

Site context and evolution of form| Merlot Pods| Arti Studio| STIRworld
Site context and evolution of form Image: Courtesy of Arti Studio

Beyond the street, low-rise residential buildings dominate the built fabric, whose hipped clay roofs, brick walls, and pavement blocks render a reddish ubiquity to the suburban site. At the edge of the street, the lack of a setback enables an intimate exchange between the site and the pavement. Itsumo is built on the frame of an existing building within this fabric, working off an open plan consisting of columns and a roof retained from the original structure.

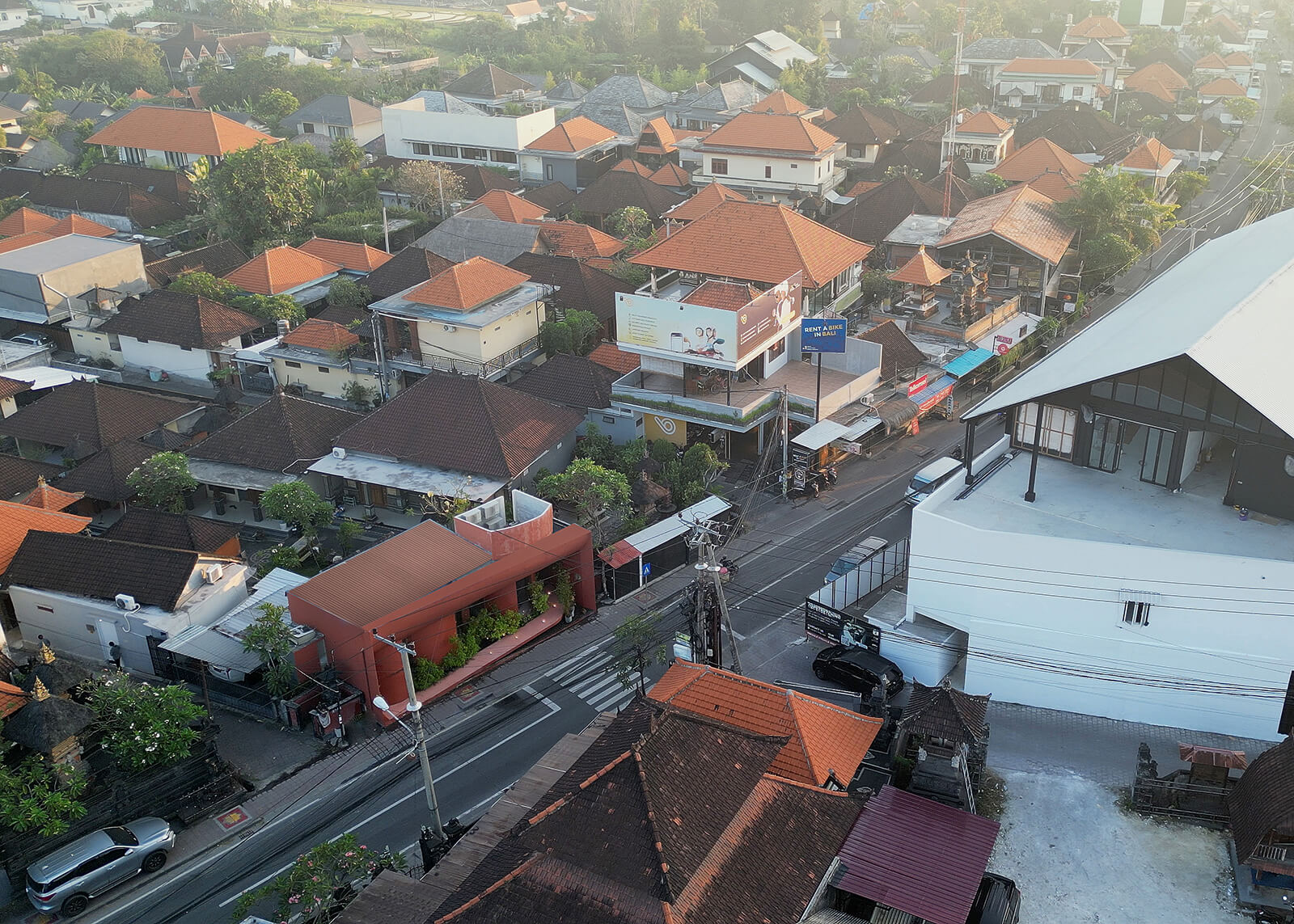

Hipped clay roofs, brick walls, and pavement blocks render a reddish ubiquity to the suburban site| Merlot Pods| Arti Studio| STIRworld
Hipped clay roofs, brick walls, and pavement blocks render a reddish ubiquity to the suburban site Image: Courtesy of Adi Widiantara

An outdoor space with urban furniture at the edge of the site creates a diversion along the otherwise linear pedestrian street. This intermediary space between the private indoors and the public street not only affords a spatial pause but also allows the public essence of the street to spill into the site.

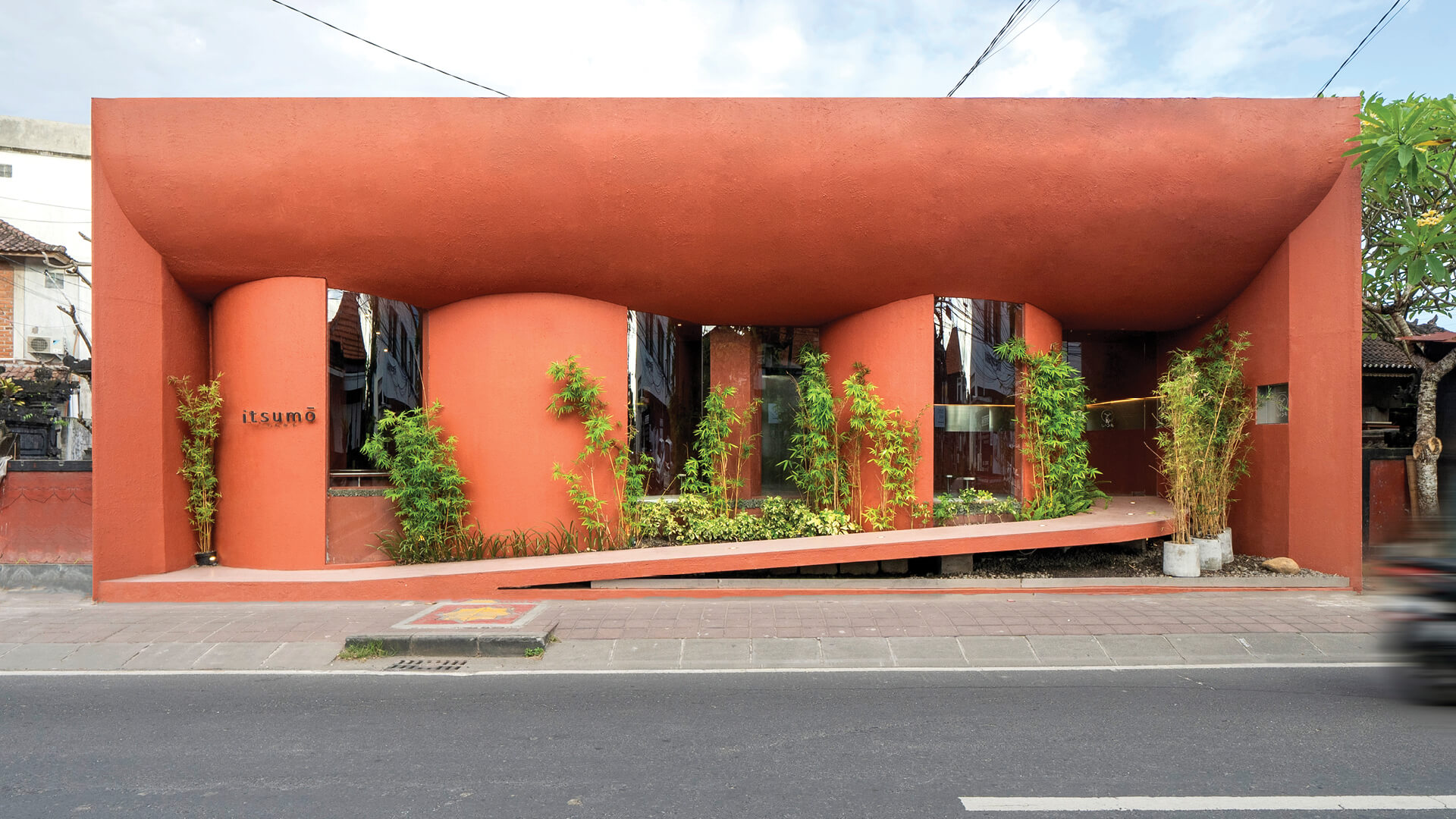

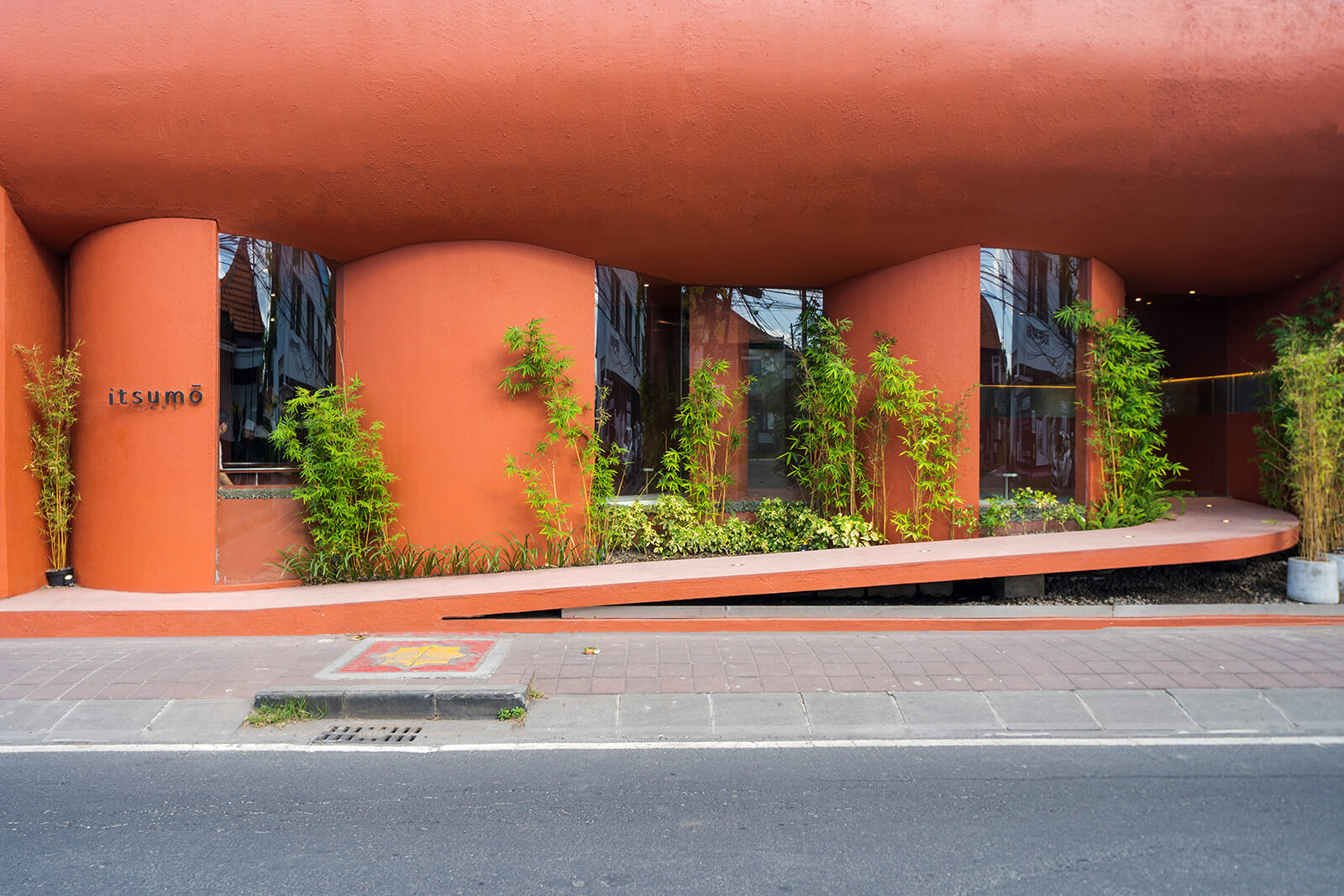

Bamboo plants act as a screen between the outdoor public and the indoor private | Merlot Pods| Arti Studio| STIRworld
Bamboo plants act as a screen between the outdoor public and the indoor private Image: Courtesy of Adi Widiantara

The form of the building is derived from the skeleton of the existing structure and distinguishes itself from the street fabric with a bulbous mass that accommodates seemingly cylindrical volumes. The ‘volume’ is, in fact, a curved wall—almost apse-like, which extends the space inside to integrate circular pods for seating. Internally the spatial distribution is governed by the existing columns and roof (concealed above a false ceiling). The new ceiling emulates the robust form of the façade and evolves as a suspended convex soffit made of gypsum board, below the original roof. The existing columns, sharp-edged and rectangular, unlike the wall and the ceiling, amplify their identity by disassociating themselves from the latter, in this case literally, by means of a gap.

  • Plan, The Merlot Pods | Merlot Pods| Arti Studio| STIRworld
    Plan, The Merlot Pods Image: Courtesy of Arti Studio

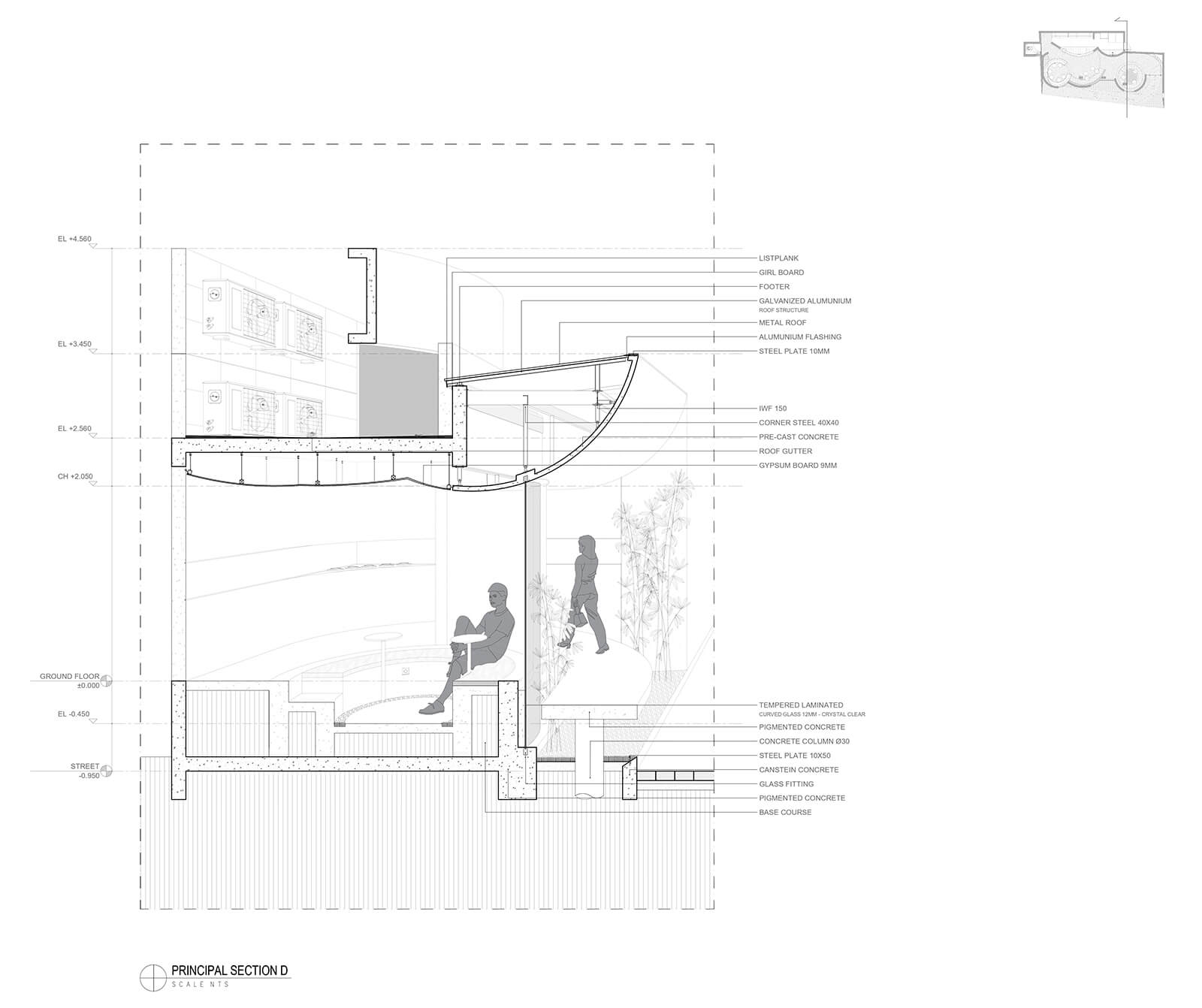

  • Detailed section of the roof, The Merlot Pods | Merlot Pods| Arti Studio| STIRworld
    Detailed section of the roof, The Merlot Pods Image: Courtesy of Arti Studio

The ubiquitous red of the streetscape is manifested in the Merlot Pods, both internally and externally, with a reddish textured finish. This allows the building to blend in with its immediate context.

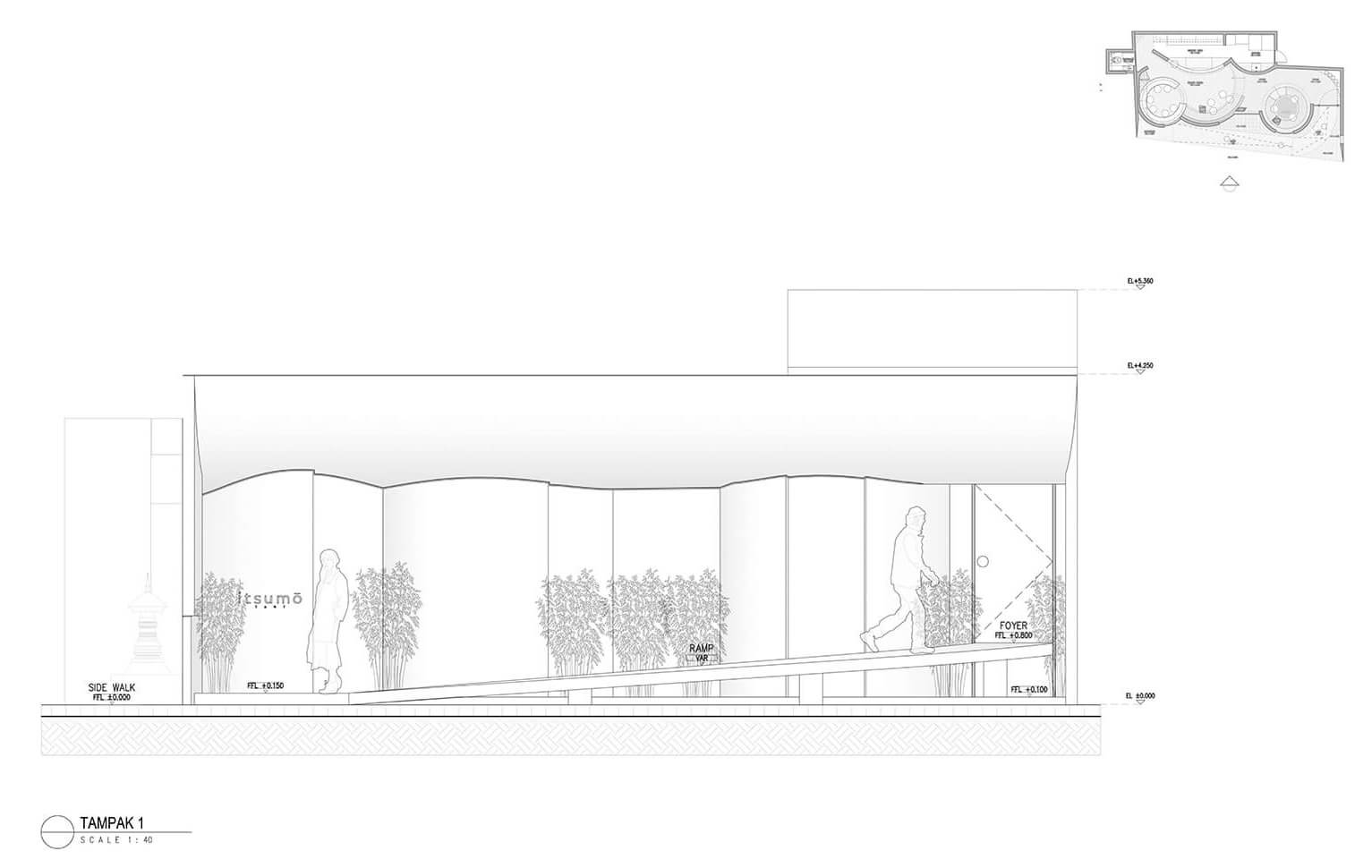

  • Elevation, The Merlot Pods | Merlot Pods| Arti Studio| STIRworld
    Elevation, The Merlot Pods Image: Courtesy of Arti Studio

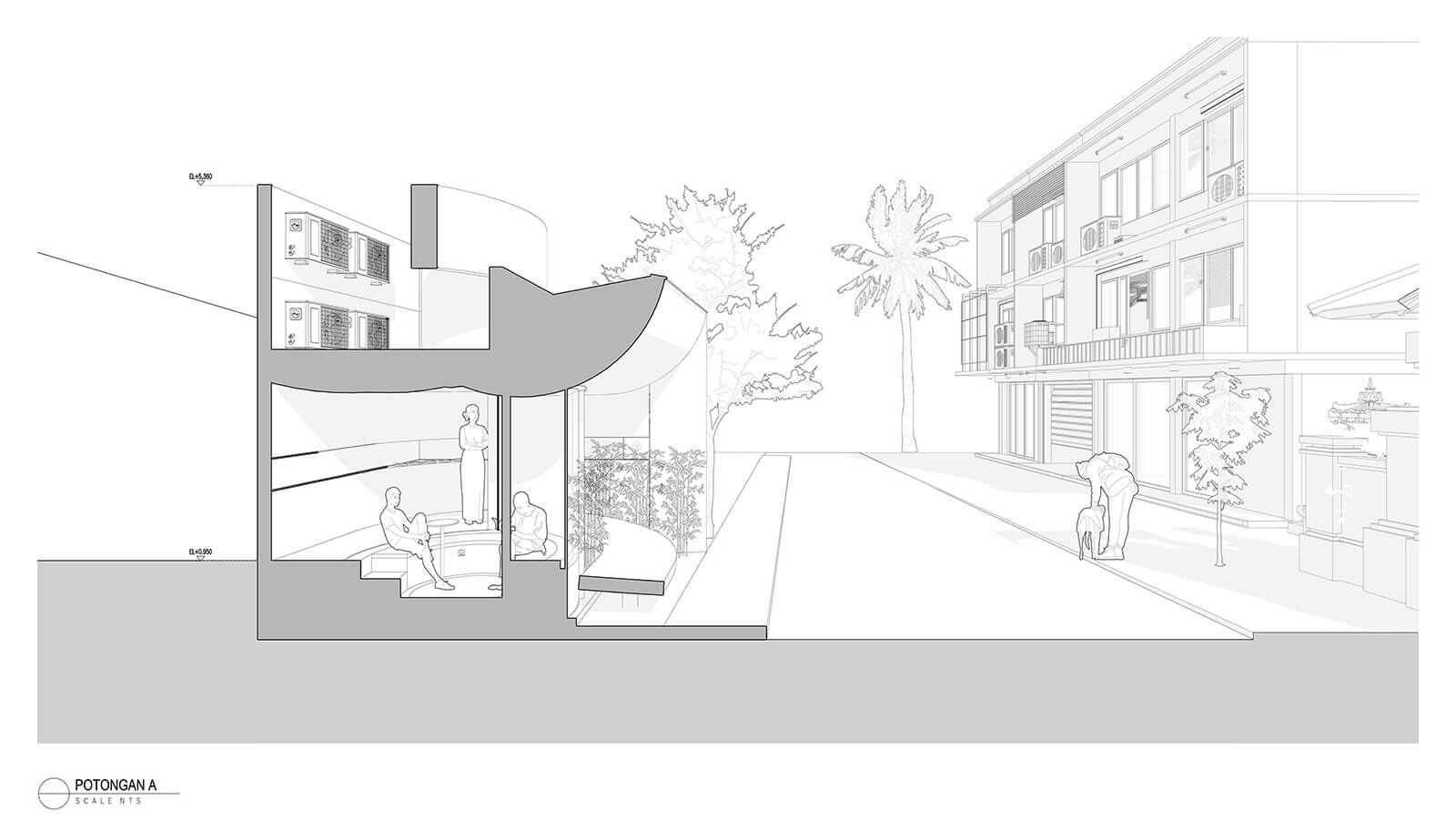

  • Section, Merlot Pods| Merlot Pods| Arti Studio| STIRworld
    Section, Merlot Pods Image: Courtesy of Arti Studio

Three curved screens (partly solid, partly glazed) constitute the front façade design, internally creating pods accommodating distinct seating arrangements with varying degrees of privacy. For solo patrons and smaller groups, an introspective, outward-looking space is created. Here, a table, running parallel to the curved wall, engages the users with the street, while the seating (radiating along the table) simultaneously ensures privacy from adjacent users within the pod, with their backs facing the busy foyer space. In another instance, the seating arrangement is reversed and inward-facing, thus facilitating conversation and group interactions.

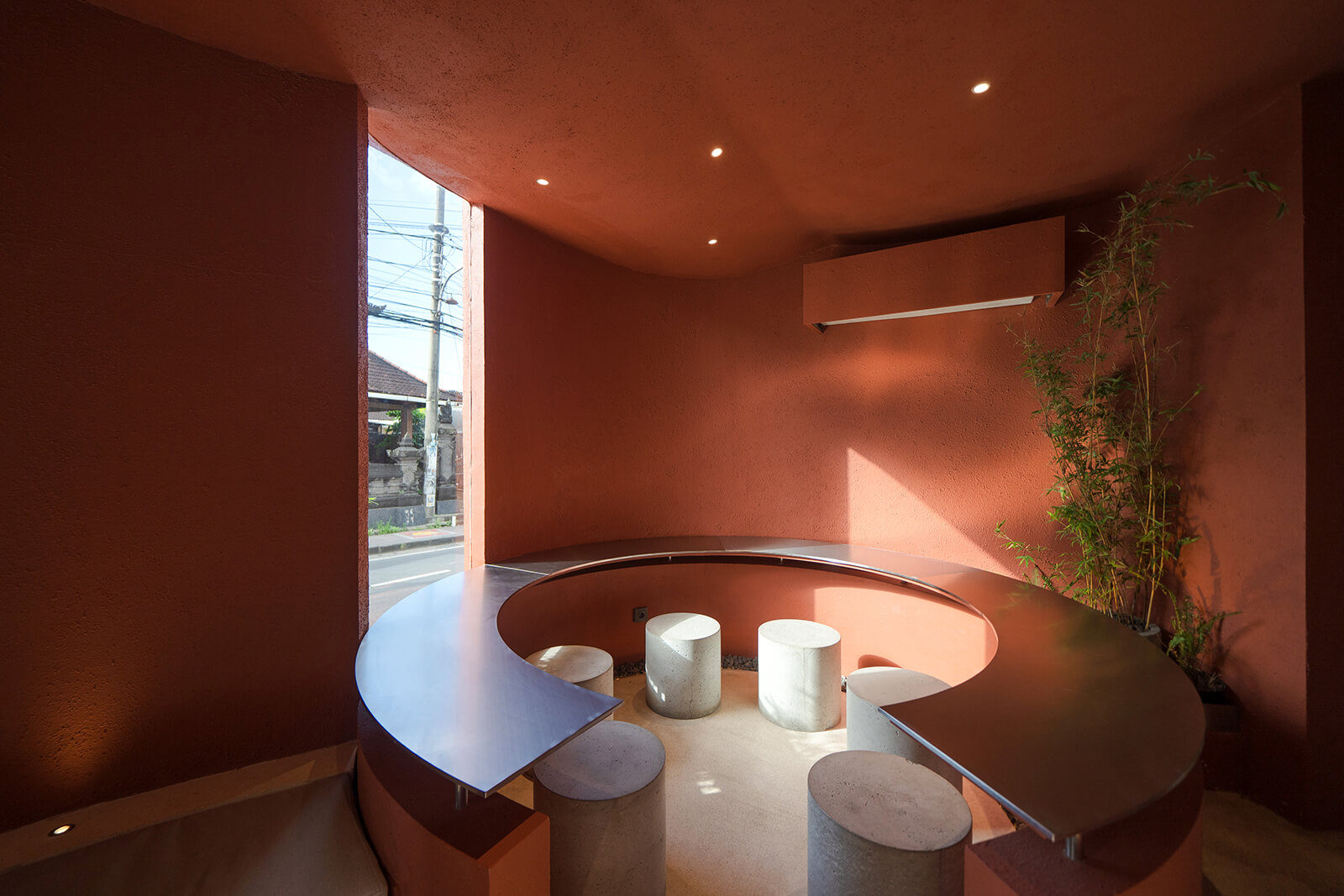

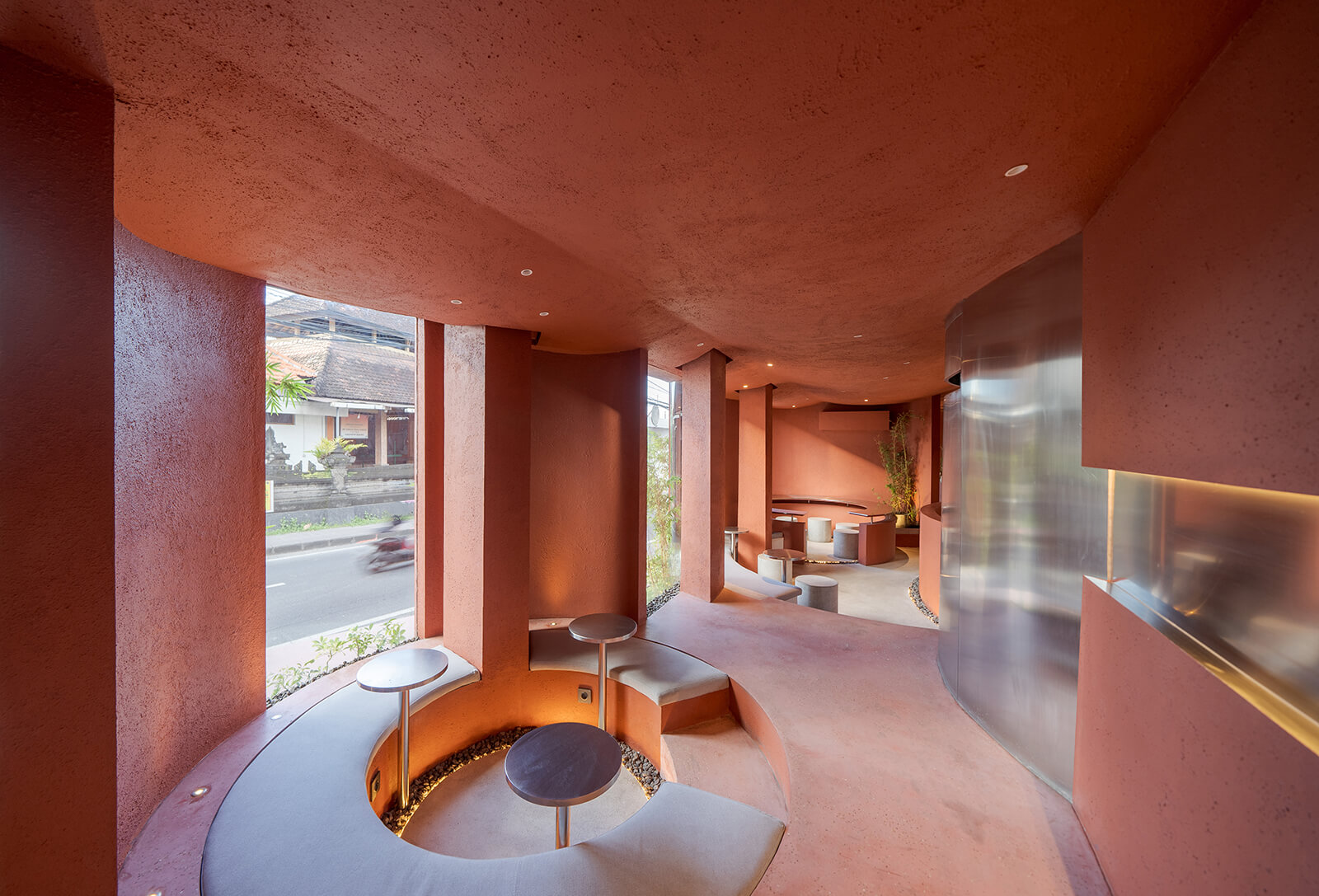

  • The pods accommodate distinct seating arrangements with varying degrees of privacy | Merlot Pods| Arti Studio| STIRworld
    The pods accommodate distinct seating arrangements with varying degrees of privacy Image: Courtesy of Adi Widiantara

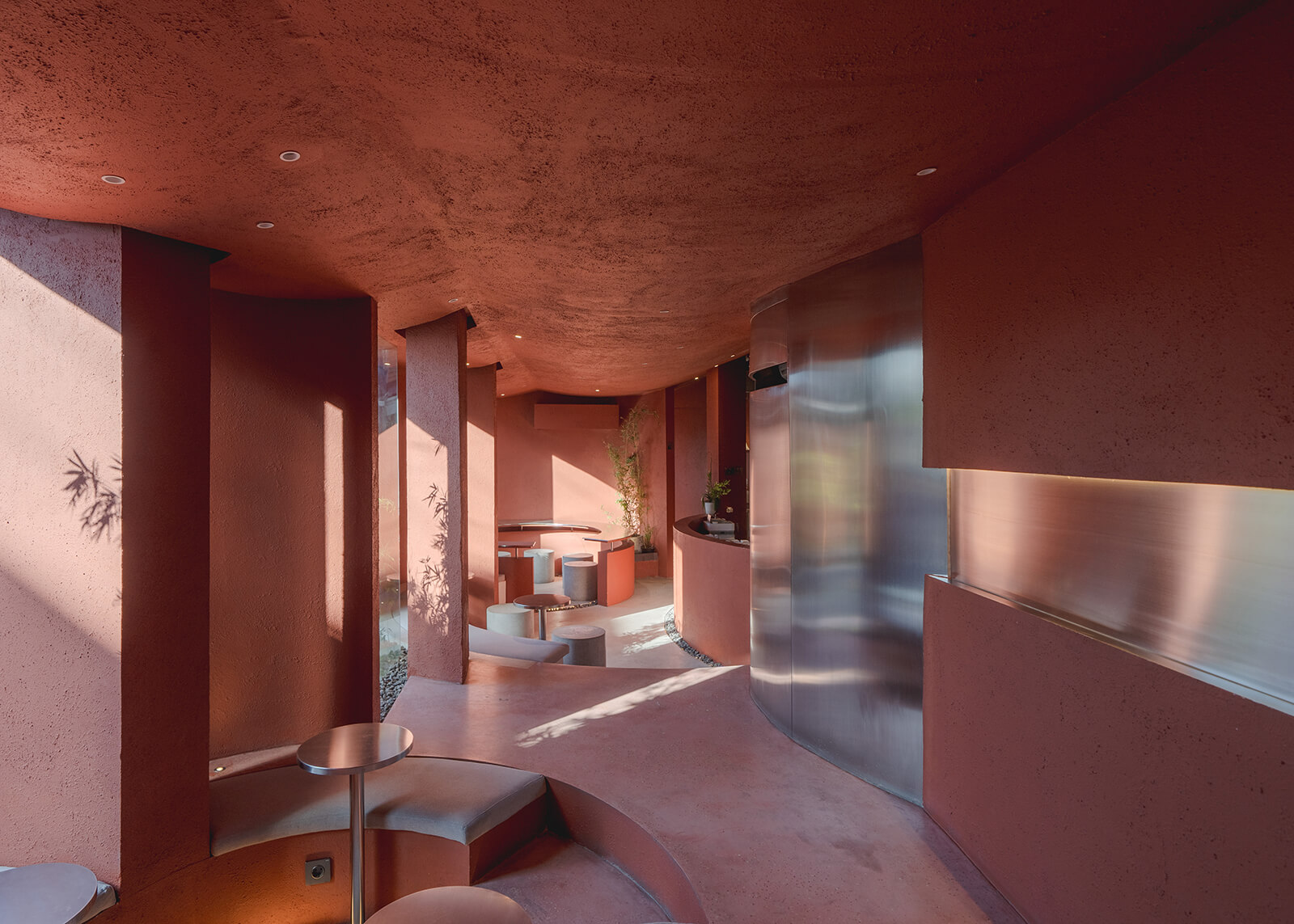

  • Interior view of the pods | Merlot Pods| Arti Studio| STIRworld
    Interior view of the pods Image: Courtesy of Adi Widiantara

A circular partition, coupled with a serving counter, separates the served areas from the service area and kitchen. A combination of curved walls and straight walls constitute the partitions, each denoting their age—with the former symbolising new additions—and the latter the existing structure.

Existing columns dissociate themselves from the ceiling with the means of a gap | Merlot Pods| Arti Studio| STIRworld
Existing columns dissociate themselves from the ceiling by means of a gap Image: Courtesy of Adi Widiantara

The Merlot Pods is a strategic rehabilitation of an existing site, which evokes the context it sits in, while simultaneously facilitating public-private engagement through the introduction of public spaces on the site.
